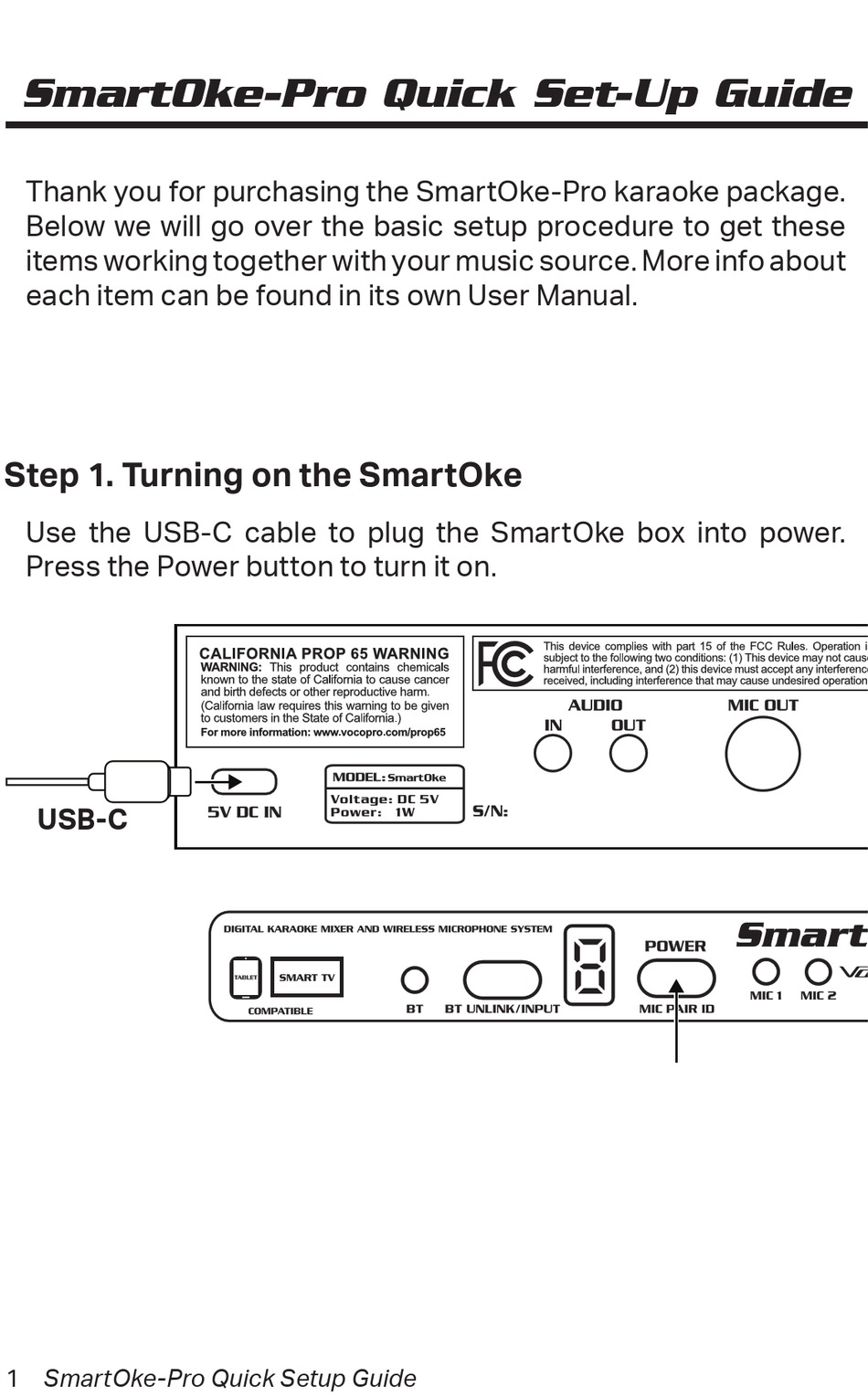

SmartOke-Pro Quick Set-Up Guide
Thank you for purchasing the SmartOke-Pro karaoke package.
Below we will go over the basic setup procedure to get these
items working together with your music source. More info about
each item can be found in its own User Manual.
Step 1. Turning on the SmartOke
Use the USB-C cable to plug the SmartOke box into power.
Press the Power button to turn it on.
USB-C
SmartOk
DIGITAL KARAOKE MIXER AND WIRELESS MICROPHONE SYSTEM
SmartOk
DIGITAL KARAOKE MIXER AND WIRELESS MICROPHONE SYSTEM
CHECK LIGHTS
1 SmartOke-Pro Quick Setup Guide
Advertisement
Table of Contents
Related Manuals for VocoPro SmartOke-Pro
Summary of Contents for VocoPro SmartOke-Pro
- Page 1 SmartOke-Pro Quick Set-Up Guide Thank you for purchasing the SmartOke-Pro karaoke package. Below we will go over the basic setup procedure to get these items working together with your music source. More info about each item can be found in its own User Manual.
- Page 2 SmartOke box should also be solid green. SmartOke ELESS MICROPHONE SYSTEM CHECK LIGHTS (If the mics do not pair immediately out of the box and the green lights are flashing, please see the SmartOke manual for how to re-sync them.) 2 SmartOke-Pro Quick Setup Guide...
- Page 3 Connect the PV-WEDGE-II speaker to power using the 12V DC adapter. Turn the speaker on, turn the volume knob up, and speak into the microphone. At this point you should be getting mic audio coming through the speaker. SmartOke-Pro Quick Setup Guide 3...
- Page 4 (You may need to go into your TV’s sound settings and change the output to Optical and more specifically to PCM Optical if you have the option. Not all TVs have the same options and some will change automatically.) 4 SmartOke-Pro Quick Setup Guide...
- Page 5 Open Bluetooth settings on your device and connect to the “SmartOke”. SmartOke (If you don’t see it right away, try turning Bluetooth off and back DIGITAL KARAOKE MIXER AND WIRELESS MICROPHONE SYSTEM on, on your device, and/or cycling through the inputs on the SmartOke.) SmartOke-Pro Quick Setup Guide 5...
- Page 6 Using the 3.5mm to RCA cable, connect the single 3.5mm end into the AUDIO IN on the SmartOke and connect the dual RCA red and white ends into an AUDIO OUT on your player or device. 6 SmartOke-Pro Quick Setup Guide...
- Page 7 If you need additional help, have questions, or need support with your product contact us: Toll Free: 800-678-5348 TEL: 909-593-8893 FAX: 909-593-8890 Email Tech Support at: techsupport@vocopro.com Visit us on Facebook, Twitter, and Instagram SmartOke-Pro Quick Setup Guide 7...
