JDN OPERATING AND ASSEMBLY INSTRUCTIONS

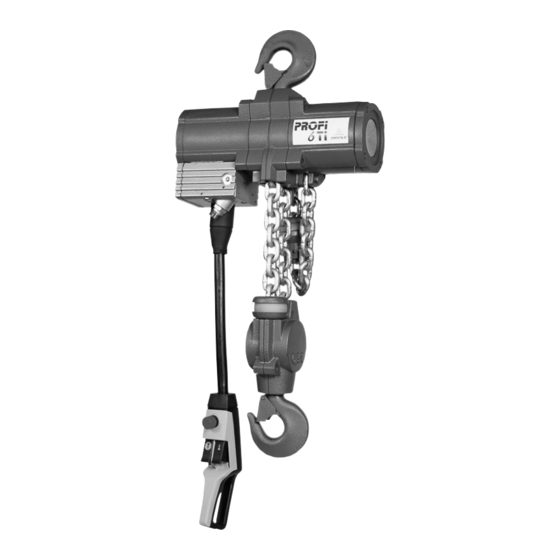

Hoist
PROFI 3 TI
Serial No.: P604247-P604248
Representation may differ from actual product!
ORIGINAL OPERATING
AND ASSEMBLY INSTRUCTIONS
Doc.-No.: VA053957-40-OM-EN-0720-60-2
