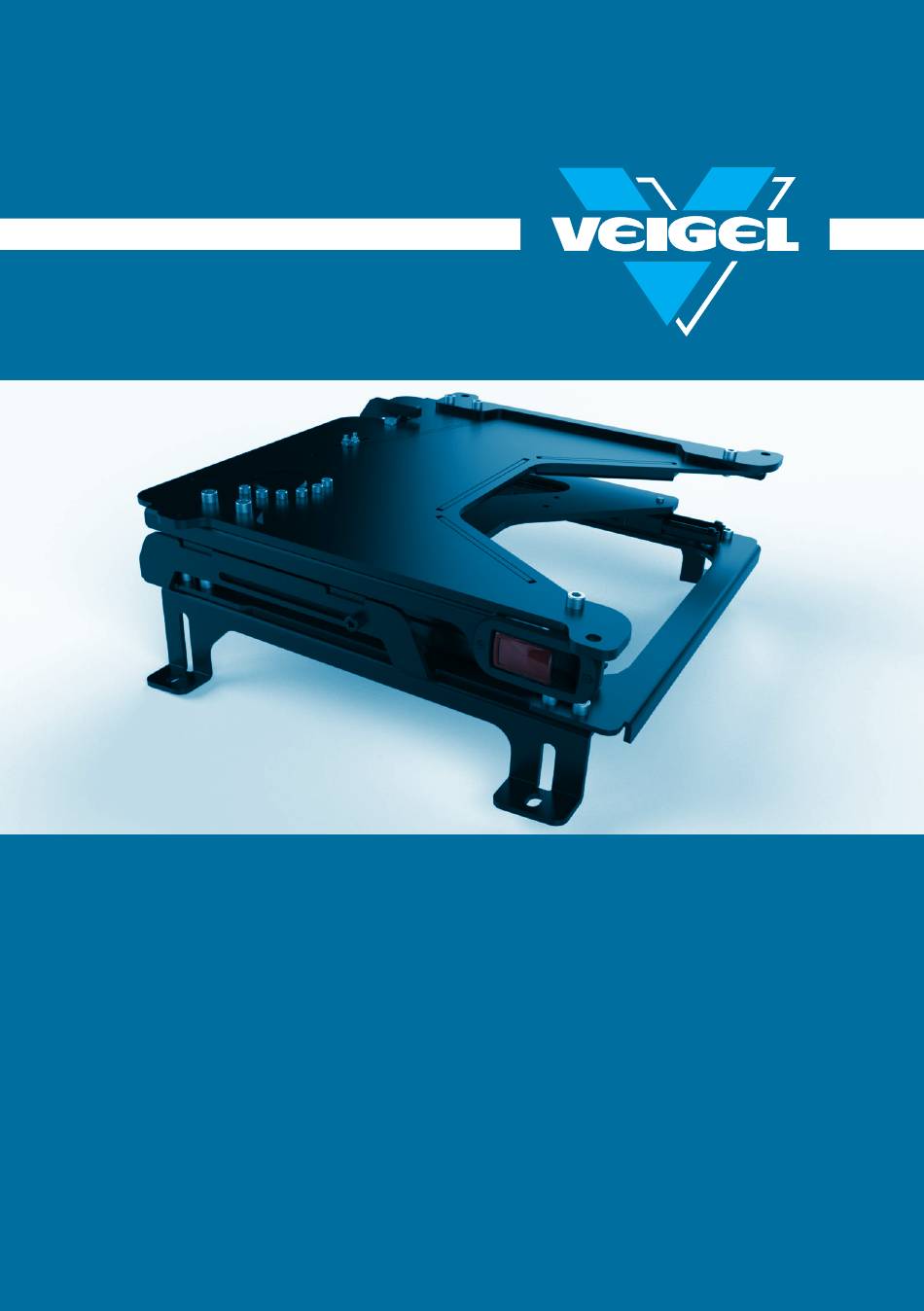

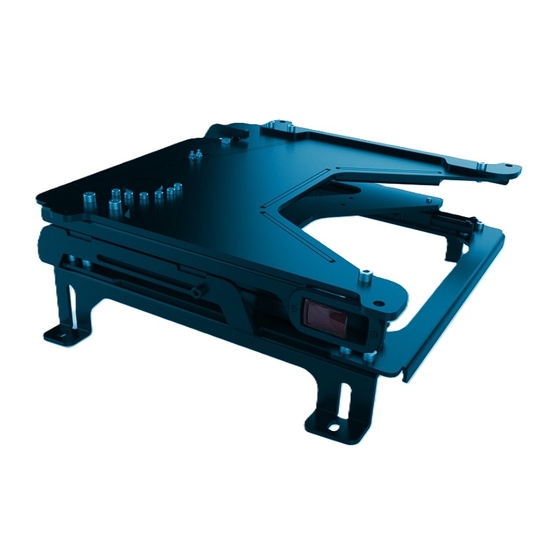

- Page 1 Rehamotive Installation and Operating Instructions Twister installation kit VW Caddy IV Art. no.: S47290920 www.veigel-automotive.de...
- Page 2 Document no. 250576 Created 2021-01-11 Name Schulz Subject to technical modifications without prior Revised notification and to errors. Reproduction, even in part, only permitted with Version 1 permission from Veigel GmbH + Co. KG.
-
Page 3: Table Of Contents
Contents Contents Contents .....................1-1 Revision history ....................1-2 Symbols used ..................... 1-3 General information ..................2-1 General safety information .................. 2-1 Intended use ....................... 2-2 Foreseeable misuse ................... 2-2 Product description ...................3-1 Type plate ......................3-1 Twister scope of delivery ..................3-2 Intended use ....................... -
Page 4: Contents
01 / 2021-01-11 Initial version 02 / 2014-03-26 Editorial revision 03 / 2013-12-16 Editorial revision 04 / 2015-09-07 Addition of Veigel Commander operation 05 / 2015-11-27 "Veigel Commander operation" removed 06 / 2016-09-07 Veigel hotline address details corrected Type plate updated... -
Page 5: Symbols Used
Contents Thank you for choosing this high-quality Veigel product! Symbols used The following symbols are used in these operating instructions: This symbol refers to information that, if not observed, will pose a risk to your health or the functionality of the device. - Page 6 Contents Blank page for your notes...
-
Page 7: General Information
Safety information General information General safety information The Twister is a pre-assembled component that comes ready to install. It was designed and built in line with carefully chosen harmonised standards that must be observed, as well as further technical specifications. Consequently, it is a state-of-the-art product and provides the best possible level of safety while in operation. -
Page 8: Intended Use
Safety information Intended use • This Twister is only suitable for use in the named vehicle types; it may only be installed in these vehicle types. • The Twister replaces an original seat without a lateral airbag. • The swivel functions are only intended to make vehicle entry and exit easier for people up to a maximum body weight of 160 kg. -
Page 9: Product Description
Twister must be locked in this position while driving. 2. 90° position: Twister turned outwards by 90°. The Twister can be pushed out from this position, to make it easier to get into a wheelchair, for example. Type plate Veigel GmbH + Co. KG Type: Version: Type designation: xxxxxx-xxx Factory no.:... -
Page 10: Twister Scope Of Delivery
Product description Twister scope of delivery M8x25 M8x20 Twister Figure 1: layout Qty Description Item Description Art. no. Right brace 106408 Fillister-head screw M8x20 Left brace 106409 Fillister-head screw M8x25 Belt connection 107073 Hexagon nut DIN 985 M8 Spacers 15x22x 5 301484 Washer DIN 7349-8.4x21x4... -
Page 11: Intended Use
Product description Intended use M o d e l y e a r Trade name Model Type construction Volkswagen Caddy IV See the parts certificate for detailed information about the assignment. NOTE Applicable documents: Twister installation and operating instructions S00001... - Page 12 Product description Blank page for your notes...
-
Page 13: Operation
Operation OPERATION Safety information Keep the installation and operating instructions together with the vehicle documents. ATTEN- TION! Arrange for any irregularities to be examined by a workshop. Operation Operate the seat as per the information provided by the vehicle manufacturer. The standard functionality of the seat remains fully intact. -
Page 14: Assembly
Tightening torques The tightening torques as specified by the vehicle manufacturer apply when converting vehicles using Veigel driving aids. Unless otherwise stated in the text, the usual DIN tightening torques provided ATTEN- in the table below apply for Veigel parts. TION! -
Page 15: Removing The Original Seat
Assembly Removing the original seat Only trained individuals may make modifications to or work on airbag systems. ATTEN- TION! Add the Twister and installation kit to the vehicle documents in accordance with Section19 Paragraph 2 and Section 21 of the StVZO (Straßenverkehrs-Zulas- sungs-Ordnung, the German Road Traffic Licensing Regulations). -
Page 16: Assembling The Twister Installation Kit
Assembly Assembling the Twister installation kit Required parts: Required screws: Pos. 1 Right brace 12 x fillister-head screw M8x20 Pos. 2 Left brace 2 x fillister-head screw M8x25 Pos. 3 Belt connection 14 x hexagon nut DIN 985 M8 Spacers 15x22x 5 Pos. -
Page 17: Assembling The Twister
Assembly Assembling the Twister Screw the Twister and the braces together. Use the M8x20 fillister-head screws and M8 hexagon nuts to do this. The fastening screws can now be tightened to the vehicle. Make absolutely sure that all the screw connections sit properly and are not under strain. -
Page 18: Belt Connection
Assembly Belt connection Assemble the seat belt buckle to the belt connection: Use the original screw to attach the removed seat belt buckle to the holder as shown in the image. Use the cable ties to attach the cable to the two designated holes. Figure 5.5: Seat belt buckle cable Slide the belt connection together with the assembled seat belt... - Page 19 Assembly In order to screw the M8 locking nuts onto all the fillister-head screws , the Twister and seat can be moved, i.e. turned in and out. Figure 5.8: Vehicle seat turned in Once assembled, check that everything is functioning correctly. Figure 5.9: Vehicle seat turned out Deactivate the vehicle seat airbag on the VW OBD unit! ATTENTION!
-
Page 20: Disassembling The Installation Kit
Assembly Disassembling the installation kit Disassemble the installation kit by following the assembly steps in reverse order. Mount the seat using the original screws. ATTENTION! -
Page 21: Maintenance And Care
Maintenance and care Maintenance and care Safety information Only authorised and appropriately trained personnel may perform maintenance and repair work on the Twister. ATTEN- TION! Arrange for functional faults to be remedied immediately by a specialist workshop. NOTE Maintenance/care Every 10,000–15,000 km Parts Action All screw connections... -
Page 22: Transport, Storage And Disposal
Transport, storage and disposal Transport, storage and disposal Transport and storage Transport and storage are only permitted in the original packaging or other appropriate protective packaging. ATTEN- TION! Disposal Comply with national waste disposal directives. ATTEN- TION! We ensure that the majority of the materials used to make our Twister are recyclable, right from the design phase. -
Page 23: Installation Record
Installation record Installation record This record will be completed if the driving aid is installed at an authorised work- shop. If it is installed at the Veigel factory, a separate installation record will be NOTE prepared and archived there. Customer:... - Page 24 Veigel GmbH + Co. KG Verrenberger Weg 36 74613 Öhringen, Germany tel. +49 (0) 7941 60585 0 fax +49 (0) 7941 60585 20 info@veigel-automotive.de www.veigel-automotive.de A SOLUTION FOR EVERY VEHICLE...
