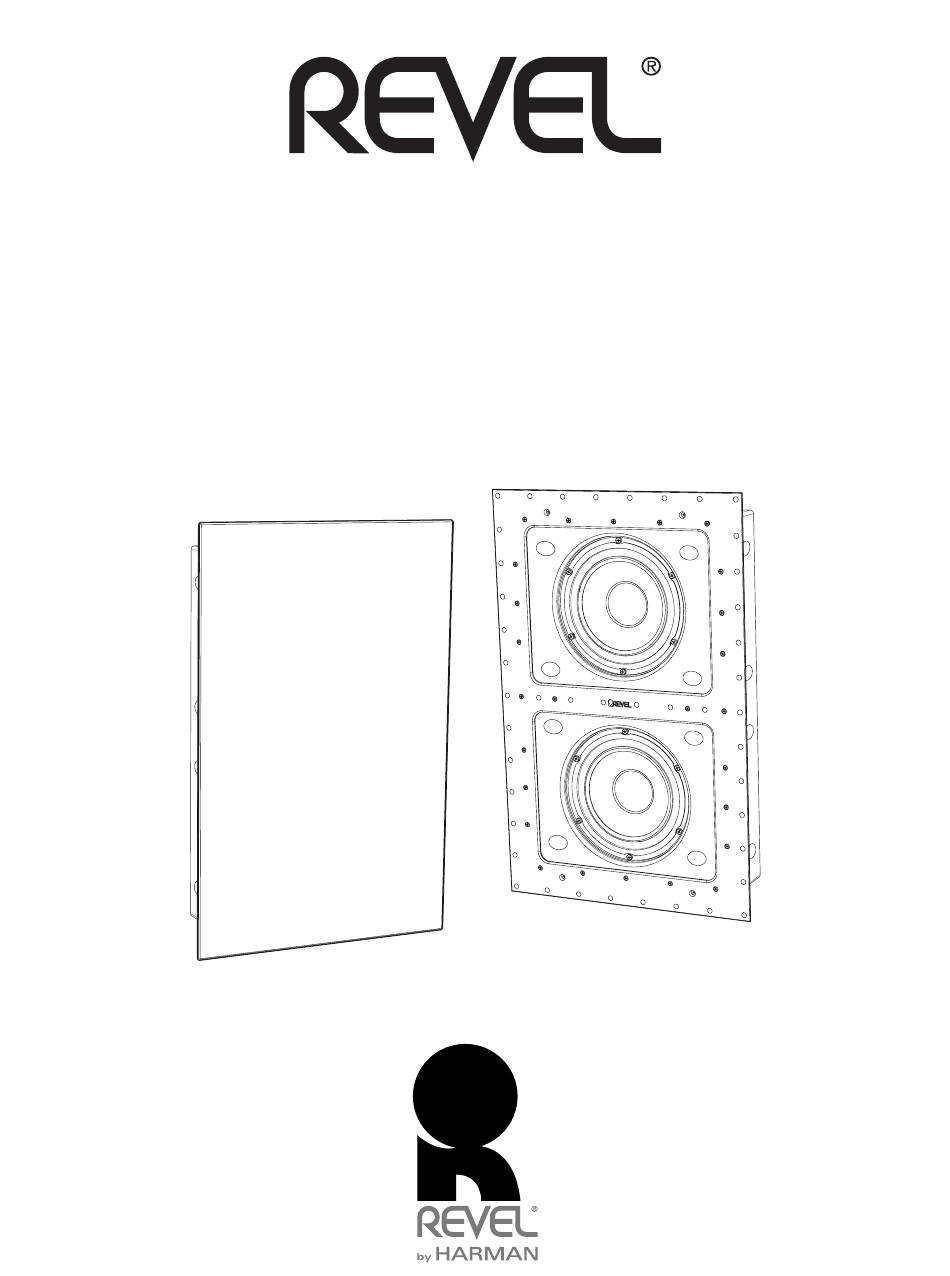

  • Page 1 B28W In-wall Subwoofer Owner’s Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Congratulations and Thank You for purchasing your new REVEL ® B28W In-Wall Subwoofer. Please take the time to read the following About Revel ..............2 ® installation and setup information in order to optimize the performance About Your Revel B28w In-Wall Subwoofer ..

  • Page 3: Product Highlights

    It is recommended that you install your B28W in-wall subwoofer along the same wall as the front loudspeakers. The B28W subwoofer is not video-shielded and should not be placed near a video display affected by magnetic fields.

  • Page 4: Cutting The Hole

    In general, do not reverse polarities (that is, do not connect the SA1000 First, use a pencil to mark the hole using the following dimension + output to the B28W – input, or the SA1000 – output to the B28W + drawing.

  • Page 5: Wiring Examples, Sa1000 To B28W

    WIRING EXAMPLES, SA1000 TO B28W IMPORTANT! For B28W in-wall sub, select EQ Switch Position Type 2 Connecting a single B28W subwoofer: B28W SOURCE REAR VIEW VOLUME SA1000 Connecting two B28W subwoofers: B28W FRONT VIEW (REFERENCE ONLY) SOURCE VOLUME SA1000 B28W...

  • Page 6: Installation

    When the B28W is in the wall, tighten the attachment screws at the top and bottom. This will bind the wall to the dog-leg clamps at the ends of the subwoofer.

  • Page 7: Troubleshooting

    • Make sure the connections to the speaker inputs have the correct polarity (+ and –). If you are using two B28W subwoofers, try inverting the polarity on one subwoofer. • In surround modes, make sure your receiver/ processor is correctly configured. Make sure the subwoofer output of the receiver/processor has been enabled.

  • Page 8: Limited Warranty

    Si prega di visitare REVELSPEAKERS.COM per i manuali di istruzioni in altre lingue. Jos tarvitset ylimääräistä kieleen liittyvää tukea käyttöohjeesta, käy osoitteessa REVELSPEAKERS.COM. Gå ind på REVELSPEAKERS.COM for at se betjeningsvejledningen på flere sprog. Gå till REVELSPEAKERS.COM för mer information om språk i användarmanualen. B28W In-Wall Subwoofer Owner’s Manual...
  • Page 9 Торговая марка: Revel Назначение товара: Пассивная акустическая система Изготовитель: Харман Интернешнл Индастриз Инкорпорейтед, США, 06901 Коннектикут, г.Стэмфорд, Атлантик Стрит 400, офис 1500 Страна происхождения: Китай Импортер в Россию: ООО Внешторг-Юг, Россия, 171640, Тверская область, г.Кашин, ул. Карла Маркса, д.57A Гарантийный период: 1 год...
