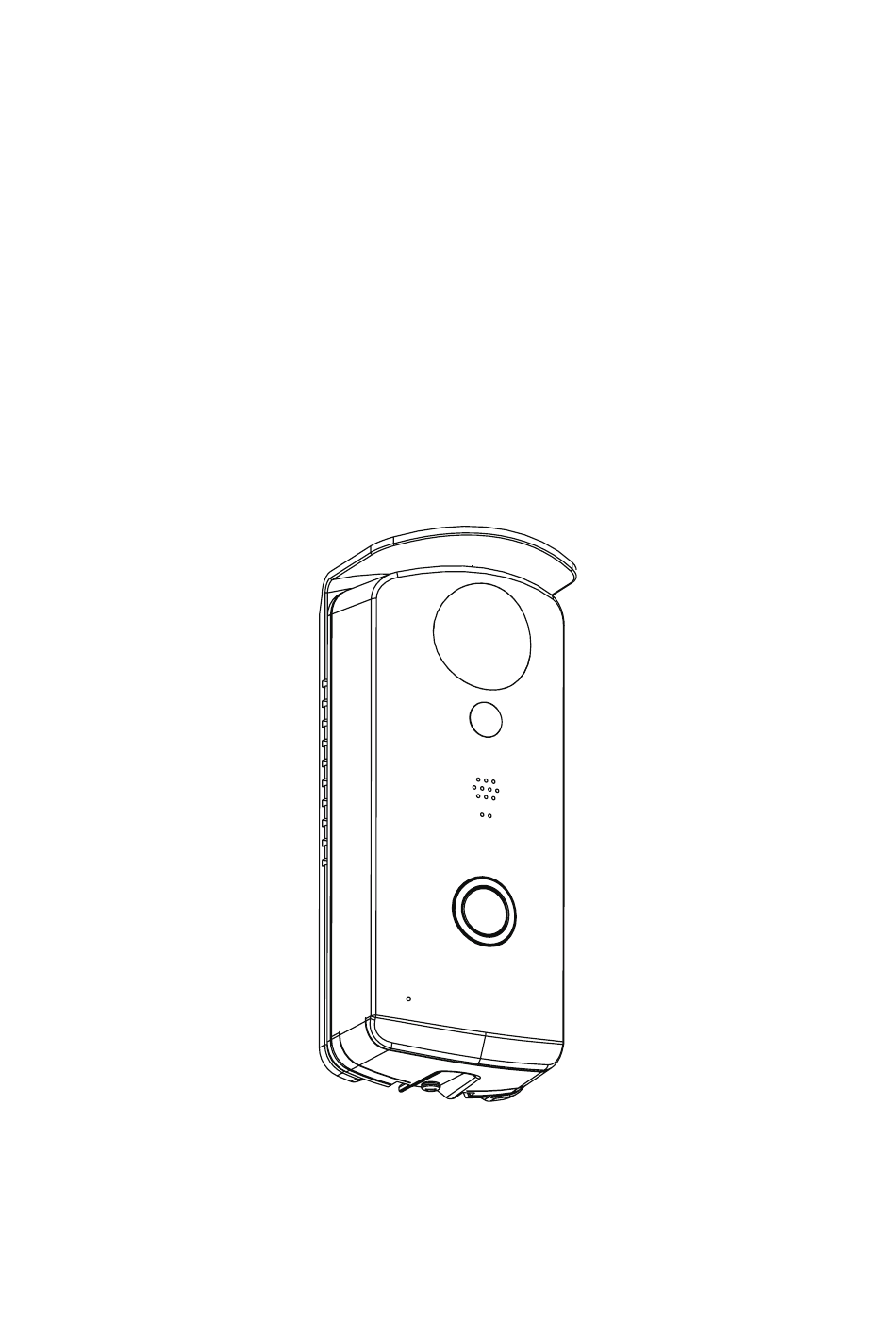

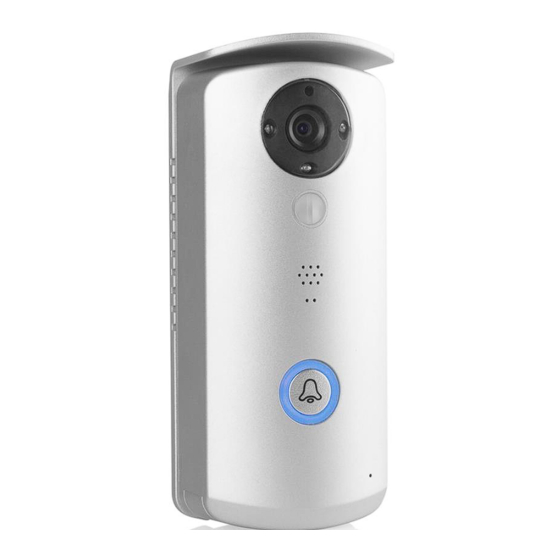

- Page 1 WiFi Doorbell HD Installation and Operating Instructions Model: VD40W PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
- Page 2 The state of art Wifi Doorbell HD (VD40W) is capable of deliver High Definition (HD) video to your smart-mobile device(s), which would require higher internet bandwidth. Due to your local internet environment condition, your mobile device(s) display black-screen or temporary disconnect to the Wifi Doorbell HD (VD40W).
-
Page 3: Table Of Contents
MAIN PAGE OVERVIEW ................11 ADD VD40W ......................12 SETTING........................12 SETUP PIN LOCK ....................13 NOTIFY (PUSH NOTIFICATION) ................13 VISITOR CALL-IN PAGE ..................15 ANSWERING A CALL .....................16 SETUP THE VD40W ..................17 ADDITIONAL WIRING DIAGRAMS .................18 MOUNTING THE DOOR UNIT ................19 PRODUCT SPECIFICATION ................20... -
Page 4: Introduction
INTRODUCTION PLEASE READ BEFORE YOU START Always use discretion when installing CCTV equipment, especially when there is perceived policy. Enquire relevant local regulations applicable to the lawful installation of video recording/ surveillance. Third party consent may be required. WIRELESS DEVICES OPERATING RANGE Ensure the signal reception viewed from the wireless camera(s) is the best possible reception between the camera(s) and the Wi-Fi router. - Page 5 FCC Compliance Statement: This Products with CE Marking comply with device complies with Part 15 of the EMC Directive (2014/30/EU); Low Voltage FCC rules. Operation is subjected to Directive (2014/35/EU); RED(2014/53/ the following two conditions: (1) this EU); ROHS Directive (2011/65/EU) issued device may not cause harmful interference, and (2) this by the Commission of the European Community.
-
Page 6: Kit Content
KIT CONTENT Wall-Bracket VD40W Power Adapter DC Power Cable Black Bell cable Lock/Gate Cable White Black Blue Black Screw Pack Quick Start Guide Note: For video recording, BE SURE TO use CLASS 10 memory card or above. Other kinds of memory card may cause unexpected results and should be avoided. -
Page 7: Knowing Your Devices
HARDWARE OVERVIEW Memory Card Slot Sunshade Mounting Bracket Camera with IR-Cut Motion Sensor Weather Resistant Spearker Push Button Microphone Reset Button 1. RX+/RX-/TX+/TX-: Ethernet Cable I/O* 2. V-/V+: Power Input I/O 3. O2/O1: Wet Contact I/O 4. B2/B1: Bell Contact I/O 5. -
Page 8: Wifi Doorbell Hd Setup & Installation
‧First connect power to the VD40W using the supplied Power Input Cable to 9-36V power source. ‧After connecting power to VD40W, the boot up process will begin (> 2 minutes), the red/green LED will become steady on after the boot up process is complete (check connectors and power source if red/green LED do not come on). -
Page 9: Operation Diagram
The VD40W app will allow you to see live video, speak to the visitor, manually capture snapshot/video and even open the door (3rd party door lock device required) for the visitor. -
Page 10: App Download And Install
- Please download and install the "OMGuard HD” APP to your device. For iOS For Android APP Setup 1. In the Wi-Fi setting section of your smart phone/tablet, search for VD40W SSID (example: HD-XXXXXX) and connect. The default password is 12345678. 2. Launch the app and tap to add VD40W 3. - Page 11 7. Tap and then to enter the advanced setting 8. Tap advanced setting to enter default password:123456 (iOS) (Android) 9. Scroll down to Wi-Fi Setting section, select the Wi-Fi router and enter its pas sword. Advanced Settings WiFi Setting Management WiFi Refresh WiFi WiFi setting will take effect after system reboot.
- Page 12 SSID broadcasting function, which usually is the name of your HOME WI-FI NETWORK. Most of the Wi-Fi routers broadcast the Service Set Identifier (SSID) by default. VD40W can only accept SSID composed with English alphabet characters and Arabic numbers. Non-English characters (!@#$%^&*) cannot be accepted.
-
Page 13: Main Page Overview
MAIN PAGE OVERVIEW The MAIN PAGE section offers you an overview for VD40W and access to different management functions. MAIN PAGE - List of all registered VD40W. You can quickly access preferred VD40W in the list even when multiple VD40W are registered by scrolling the list up or down. -
Page 14: Add Vd40W
ADD VD40W to add VD40W Please refer to page 8 "APP Setup" section for more details. SETTING and additional setup selection icons will appear. Tap to exit. Additional setup selection (iOS) (Android) VD40W INFORMATION : Change VD40W name, reset Wi-Fi router setting and access Advanced Setting section. -
Page 15: Setup Pin Lock
SETUP PIN LOCK MUST enter PIN code when you have enable PIN lock function with launching the APP. 1. Enable "Enable lock when starting" and enter your PIN code. 2. Confirm PIN code entered. (iOS) (Android) Note: If you forgot the PIN code, please delete and reinstall the app. NOTIFY (PUSH NOTIFICATION) The WAPP camera supports motion detection. - Page 16 For Android If you want to enable/disable it, please follow the steps below. Note: The internet connection and wireless network interference may influence the performance of push notification service. ABOUT APP/API Version Info (iOS) (Android) Tap the ABOUT icon to check the APP Version when necessary.
-
Page 17: Visitor Call-In Page
VISITOR CALL-IN PAGE Call-In Screen Live-View Audio Only Talk Botton Recording Door Unlock A Mute Gate Unlock B Snapshot Back to Main Page Tap and hold to speak with visitor. No sound will be transmitted if Push-To-Talk you let go. Tap once to capture a single still image of the video coming from Snapshot the door unit. -
Page 18: Answering A Call
ANSWERING A CALL Above screen would appear When visitor pressed the bell button. 1. Ignore the communication request. 2. Accept the communication request. Note: For iOS user, due to the system fundamental structural design, you will have to confirm/accept incoming communication request via pop-ups first before the answering section would appear. -
Page 19: Setup The Vd40W
(check connectors and power source if red/green LED do not come on). Memory Card Slot I/O Pin Power cable Connector Compartment Cover Note: For how to connect VD40W with existing doorbell wires, electronic lock/gate, please refer to "Additional Wiring Diagram" section. -
Page 20: Additional Wiring Diagrams
ADDITIONAL WIRING DIAGRAMS A. Ethernet (Wet suppiler) Connection Cable Color Tx + Orange / White Tx - Orange Rx + Green / White Green Ethernet Cable B. Existing Bell Wiring DoorBell C. Electronic Lock Lock D. Electronic Gate (2/4-Wire Type Connection) 4-WIRE TYPE CONNECTION DIAGRAM Input Powe r... -
Page 21: Mounting The Door Unit
MOUNTING THE DOOR UNIT Do not mount the VD40W until you have complete the Wi-Fi connection setup and have all the wiring process completed. It is best to test the door unit can function properly with app prior mounting the door unit. -
Page 22: Product Specification
PRODUCT SPECIFICATION Wireless Connectivity Wi-Fi 802.11b/g/n Transmission Frequency 2.4GHz Transmission Range Up to 150 Meters (LoS) Two-Way Audio One-Way Video Push Notification Yes / iOS and Android Event List Yes / Snapshot and Video Playback App / iOS and Android Night Vision Supported Motion Detection...
