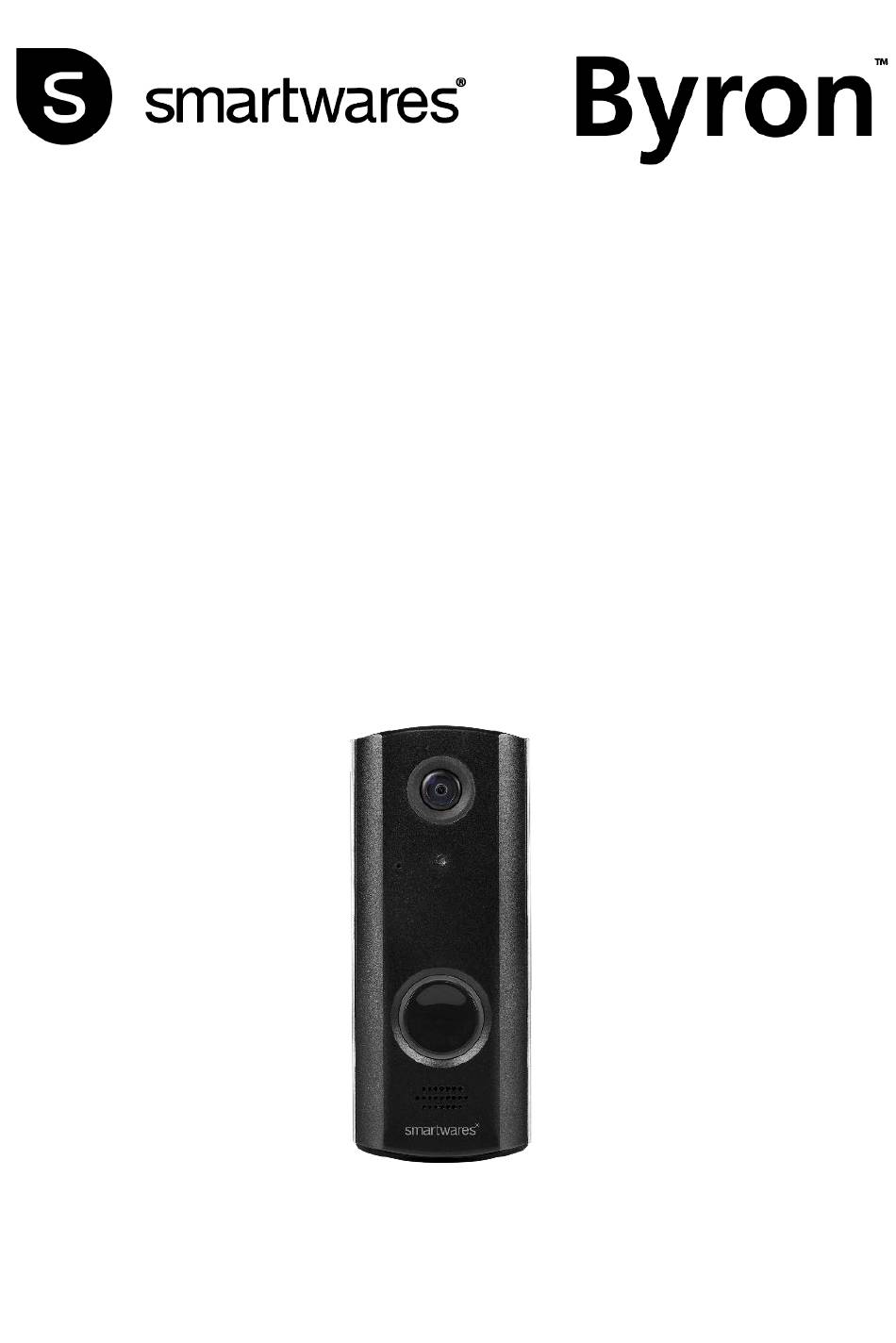

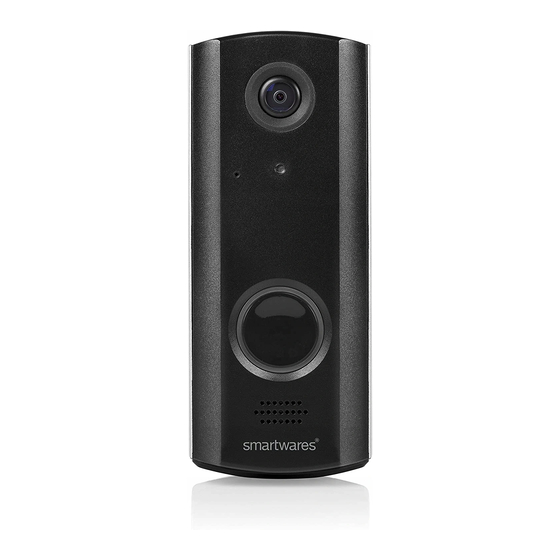

  • Page 1 DIC-23216 MANUAL...

  • Page 2: Installation

    Installation As the battery may not be fully charged out of the box, it is recommended to plug the doorbell into the mains using the pre-installed power cable and power supply during set-up. The main button will light up white during charging. The power cable comes pre-installed to easy set-up out of the box.
  • Page 3 At the bottom, press the right hand power button for 2 seconds to turn on the device. The main button will start to flash blue and white. Open the MicroSD card cover to reveal the MicroSD card slot.
  • Page 4 Download the Smartwares View App and install it. You must allow notifications to receive Alerts on your device! Open the Smartwares View App and touch the plus icon on the screen to begin set-up. Type a name for your doorbell under system name.
  • Page 5 Wi-Fi settings and select the RVDP-xxxx network from the list, then enter the password 12345678. 16. Return to the Smartwares View app and click “Next”. Allow a few minutes for the phone to complete the set-up. 17. Once connected, the doorbell will ring.
  • Page 6 Smartwares View App Set-up (Android) Download the Smartwares View App and install it. Open the Smartwares View App and touch the plus icon on the screen to begin set-up. Type a name for your doorbell under system name. Click the “Scan DID Label” and allow the app access to your camera on your phone.
  • Page 7 12. On Wi-Fi set-up click SET-UP. 13. You will be prompted to turn off your mobile data. This is to force the device to connect to the Wi-Fi of the doorbell. You can turn this back on after set-up. Return to the app and click “Start”, your device will connect to the doorbell.

  • Page 8: Wall Mounting

    Wall mounting Now the doorbell is working, test it in your ideal location making sure you are happy with the view from the camera. Using the wall fixing base as a template, mark and drill 3x holes using a 6mm drill bit. Secure the wall fixing base to the wall using the wall plugs and screws provided.
  • Page 9 Included in the box is a power cable that can be used to connect bell to a power supply as an alternative for continuous battery mode. Connect the power cable to the power connection terminals on the rear of the doorbell and using the cable connectors supplied connect this to your power supply MAX AC: 9V – 36V / DC: 12V- 30V.

  • Page 10: Smartwares View App Overview

    This is because there are different versions of the app for iOS and Android, and because the app is updated regularly. Start screen The start screen offers you an overview of your Smartwares Wi-fi video doorbell and other compatible Smartwares cameras you may have installed. From this screen you have access to different functions: •...
  • Page 11 Adding a video doorbell to add a video doorbell or other compatible Smartwares camera. Advanced Settings . The additional setup selection icons will appear. Now tap to access the advanced settings. Tap again to exit. Note: If the device is in power saving mode, you will not be able to access the advanced settings.
  • Page 12 If you want to enable/disable notifications, please follow the steps below: 1. Launch Settings from your Home screen. 2. Tap “ Notifications”. 3. Scroll down to find the Smartwares View app and tap on it. 4. Adjust the notification settings, such as On/Off, Sounds, banners, etc. Note:...
  • Page 13 For Android If you want to enable/disable notifications, please follow the steps below. Note: The internet connection and wireless network speed may influence the performance of the push notification service. Video hardware acceleration Turn video hardware acceleration on for faster performance. Please tu rn this off if you experience any graphical glitches.

  • Page 14: Live View Page

    Door unlock Tap this icon once and enter the admin password to remotely open the door for a visitor (Smartwares DB5005 or DB5005L Trigger required). Gate unlock Tap the icon once and enter the admin password to remotely open the gate (Smartwares DB5005 or DB5005L required).
  • Page 15 Hands-free mode Hands-free Mode with two-way talk Phone mode with Phone mode with two-way talk one-way audio...

  • Page 16: Event Video Playback

    Event video playback The recorded video is automatically saved to the memory card. You can access the files for playback. on the main page. and the date/time filter will appear. You can define the period to display all available recorded files for playback.
  • Page 17 For playback, select the file from either the local or the cloud event section. During the playback you can tap the pause button to pause/resume the playback. The local network conditions may cause improper video playback, resulting in a black screen. If this happens please leave the playback mode and try again later when the internet conditions have improved.

  • Page 18: Answering A Call

    Delete Select the file(s) and tap the delete icon. It’s possible to delete multiple files at once. Check the video clip Then tap the trash can icon Answering a call A pop-up like you see on the left will appear on your mobile device when a visitor presses the doorbell button on you video doorbell.

  • Page 19: Advanced Settings

    Advanced settings This chapter explains the advanced settings for the administrator. The administrator is the one who owns the administration password and has full control over the Wi-Fi video doorbell. The administrator can access all functions and settings, while normal users can only receive the surveillance images for live view, capture video recordings and cannot manage the camera settings.

  • Page 20: Firmware Update

    Admin password The Admin Password is a specific security code for the administrator to edit the advanced settings. The default admin password is 123456. This function allows you to change the default admin password into your personal admin password. For the protection of your system configuration, you need to enter the admin password when changing the advanced settings.
  • Page 21 Cloud settings (DIC-232116 only) In this section you can manage cloud storage of your footage. Creating a cloud storage account If you choose not to create a cloud account at when you first set up the device, you can do it at later moment.

  • Page 22: Sd Card Overwrite

    Device Management Enter here to see all devices registered under the cloud account. You can disconnect the selected device with an existing Google Drive or Dropbox account and then bundle the device to new Google Drive or Dropbox account. You can also remove the camera from the cloud account to stop using Google Drive or Dropbox as cloud storage.

  • Page 23: Record Mode

    Record mode Choose if the device takes a snapshot or records a video when motion is detected. Video framerate This section allows you to set the frame rate of the recorded video. A higher frame rate will result in a larger video file, but will provide smoother quality for playback . Android Video resolution This section allows you to change the resolution of recorded video.

  • Page 24: Video Brightness

    Video Brightness This setting allows you adjust the brightness level of the recorded video for the best results, with level 1 being the darkest and level 7 being the brightness. Android Record cycle time This section allows you setup the length of time for video recording. The longer length of video record will consume more battery power and take longer to upload to the cloud, which also consume additional battery power.

  • Page 25: Environment Mode

    Environment mode Choose between 50 or 60 Hz, depending on your region. If you are in Europe, you should select 50Hz. Device remote access Allow remote access to the device. Turn this off to save battery. When this is turned off, you won’t be able to turn on live view remotely.

  • Page 26: Relay Trigger Duration

    Ringtone This section allows you to select a melody for your video doorbell. There are five different melodies you can select. Volume You can adjust the volume from completely muted to maximum volume. Relay trigger duration In this section you can set the trigger time for your door, gate or doorbell to 1, 3 or 5 seconds respectively.

  • Page 27: Pairing With A Smartwares Chime

    If you have issues with echoes when using two-way audio, enable the acoustic echo canceler function. Pairing with a Smartwares chime You can pair you video doorbell with a separate chime. This way you get notified in your home if anyone presses your doorbell, even when you are away from your phone.

  • Page 28: Troubleshooting

    · Please change the language of your mobile device. The language language in the in the app is the same language you have chosen in your device Smartwares View app settings. If your language is not available, the app will be in English · Disable live view option...

  • Page 29: Product Specification

    Product specification Wireless Network Wi-Fi 802.11b/g/n Transmission Frequency 2.4GHz Transmission Range Up to 150 Meters Image Sensor 720P Remote Live-view 24/7 app remote view, even when battery operated (can be turned off for power saving) Two-Way Audio One-Way Video Push Notification Yes / iOS and Android Event List Yes / Snapshot and Video...
