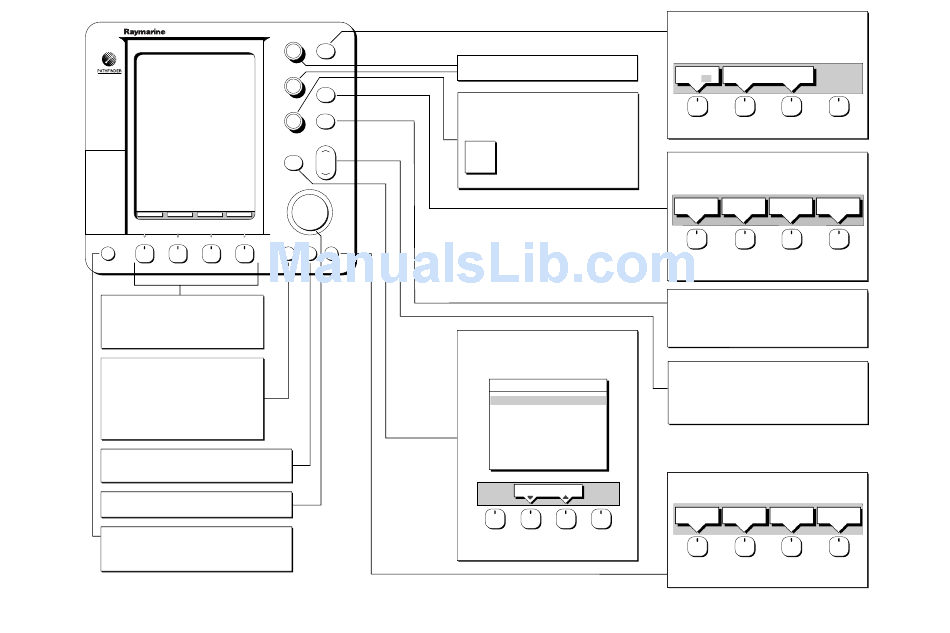

Raymarine hsb2 Quick Reference Card

Soft Key Labels:
Change when you press a key.
Default soft key labels are shown.
ROUTE GOTO SCREEN
POWER
Soft keys
Press to select option, or highlight option or slider.
Labels change when you press soft/dedicated key.
Elipses (...) after the text indicate that pressing soft key
leads to a further display of soft key options.
ENTER
Confirms selection and (if appropriate) clears current
soft key labels. It either performs the selected task,
accepts changes, or leads to display of more options.
When cursor text is displayed, cursor takes control of
the object.
When arrow-head cursor symbol is displayed, drops
the object under cursor control.
CLEAR
Cancels operation in progress and returns to previous display.
Deletes an object/function under cursor control.
Trackball
Controls cursor position on screen, the sliders and setup options.
POWER
Press and hold until unit beeps to turn on display.
Press to toggle between Standby and Transmit.
Press for 3 seconds to turn off display.
Quick Reference Card: hsb
86061_1
GAIN
DISPLAY
SEA
MOB
MARKS
MULTI
VRM/EBL
RANGE
ALARMS
FIND SHIP
ENTER CLEAR MENU
2
PLUS Series CRT Chart Displays
GAIN and SEA
Not used in Chart Mode.
MULTI
Controls display contrast and brilliance and key lighting.
- Press to display slider, options and soft keys.
- use trackball to highlight option in list.
Press soft key (if appropriate) to toggle
CONT
highlighted option between ON/OFF.
BRILL
Turn knob to adjust slider setting of
LIGHTS
highlighted option.
Press ENTER to finish.
ALARMS
Used to set up the chartplotter alarms.
- Press to display the Alarms set up menu and soft keys,
the soft keys correspond to the selected alarm.
ALARMS SET UP
ARRIVAL ALARM 0.01nm
OFF TRACK ALARM OFF
ANCHOR ALARM OFF
COUNTDOWN TIMER 00:33:00
ALARM CLOCK OFF
SELECT ARRIVAL
ALARM RADIUS
Use the trackball to select the alarm, then use the softkeys
to adjust parameters and/or toggle the alarm on/off.
Press ENTER to finish.
DISPLAY
Controls display mode and windows.
- Press for display mode and soft keys display.
- Press again to toggle through display modes, then ENTER.
- Press and hold for 2 seconds for full chart display of upper window.
WINDOWS SELECT
OFF ON WINDOW
Press WINDOWS soft key to toggle window on/off, or return to
full screen.
MARKS / MOB
Controls waypoint, and Man Overboard function.
- Press to display waypoint soft keys.
- Press and hold for 2 seconds to activate or cancel MOB.
PLACE WPT PLACE WPT WAYPOINT LOAD/SAVE
AT CURSOR AT VESSEL LIST USER CARD
Press soft key to place waypoint at cursor or vessel, or
display the waypoint list/user card menu and associated soft keys.
Press ENTER to finish.
VRM/EBL
Used to measure range and bearing to/between points.
- Position cursor at start point, and press VRM/EBL key to
display the Ruler data box. Select end point using
trackball, and press ENTER to fix end position of ruler.
RANGE
Controls chart scale.
Displayed vertical distances shown in the Status Bar.
- Press top of key to increase the chart distance.
- Press bottom of key to decrease the chart distance.
- Press and hold to change the scale faster.
MENU
Provides access to setup options.
- Press to display soft keys.
SYSTEM CHART TRACK GPS
SET UP¬ SET UP¬ SET UP¬ SETUP¬
Press soft key to display required setup menu, then use trackball to
select option and soft key to change setting.
Press ENTER to close menu, and CLEAR to finish.
D4189-2
