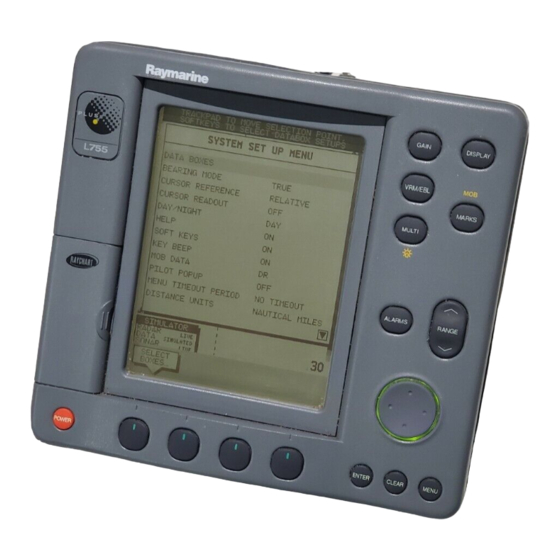

Raymarine Chart Mode Quick Reference Card

GAIN

Not used in Chart mode.

VRM/EBL

Use to measure range and bearing to/between points.
·
Position cursor at start point.
·
Press VRM/EBL key to display the Ruler data box.
·
Select end point using trackpad
·
Press ENTER to fix end position of ruler.

MULTI

Controls display lighting.
Press and hold MULTI key for brightness to 100%.
·
Press to display slider.
ON
70%
LIGHT
·
Select a slider using the soft key or trackpad.
·
Toggle between off/on by pressing the soft key again.
·
Adjust slider using trackpad, and press ENTER to finish.

ALARMS

Use to set up the chartplotter alarms.
·
Press to display the Alarms set up menu and soft keys.
The soft keys correspond to the selected alarm.
ALARMS SET UP
ARRIVAL ALARM 0.01nm
OFF COURSE ALARM OFF
ANCHOR ALARM OFF
GROUNDING ALARM 5M/1.0nm
COUNTDOWN TIMER 00:33:00
ALARM CLOCK OFF
SELECT ARRIVAL
ALARM RADIUS
·
Use the trackpad to select the alarm.
·
Use the softkeys to adjust parameters and/or toggle the alarm on/off.
·
Press ENTER to finish.

Chart

Soft Key Labels:

Change when you press a key.
Default soft key labels are shown.
Route Goto SCREEN FIND SHIP
Soft Keys
· Press to select option, or slider.
· Labels change when you press soft/dedicated key.
· Elipses (...) after the text indicate that pressing soft key
leads to another screen of soft key options.
ENTER
· Confirms selection and (if appropriate) clears current
soft key labels. Unit performs the selected task,
accepts changes, or displays more options.
· When cursor text is displayed, takes cursor control
of the object.
· When arrow-head cursor symbol is displayed, drops the
object under cursor control.
CLEAR
· Cancels operation in progress and returns to the
previous display.
· Deletes an object/function under cursor control.
Trackpad
· Controls cursor position and the slider values.
· Hold the trackpad down to move the cursor faster.
POWER
· Press and hold until unit beeps to turn on display.
· Press for 3 seconds to turn off display.
Quick Reference Card: Chart Mode Controls

DISPLAY

Controls display mode and windows.
· Press for display mode and soft keys display.
· Press again to toggle through display modes, then ENTER.
· Press and hold for 2 seconds for full screen display.
WINDOWS SELECT
OFF ON WINDOWS
· Press soft keys to toggle window ON/OFF and to select
lower window.
· Press ENTER to finish.
MARKS / MOB Controls waypoints and Man Overboard function.
·
Press to display waypoint soft keys.
·
Press and hold for 2 seconds to activate or cancel MOB.

PLACE WPT

PLACE WPT Waypoint LOAD/SAVE
AT CURSOR AT VESSEL LIST USER CARD
·
Press soft key to place waypoint at cursor or vessel, display the
waypoint list, or load/save a C-MAP user card.
·
Press ENTER to finish.
RANGE Controls chart scale.
Displayed vertical distances shown in the Status Bar.
·
Press top of key to increase the chart distance.
·
Press bottom of key to decrease the chart distance.
·
Press and hold to change the scale faster.
des access to setup options.
MENU Provi
·
Press to display soft keys.
SYSTEM CHART TRACK GPS
SET UP¬ SET UP¬ SET UP¬ SET UP¬
·
Press soft key to display desired setup menu.
·
Use trackpad to select option and soft key to change option.
·
Press ENTER to close menu and CLEAR to to finish.
D5562-4
86067-3
