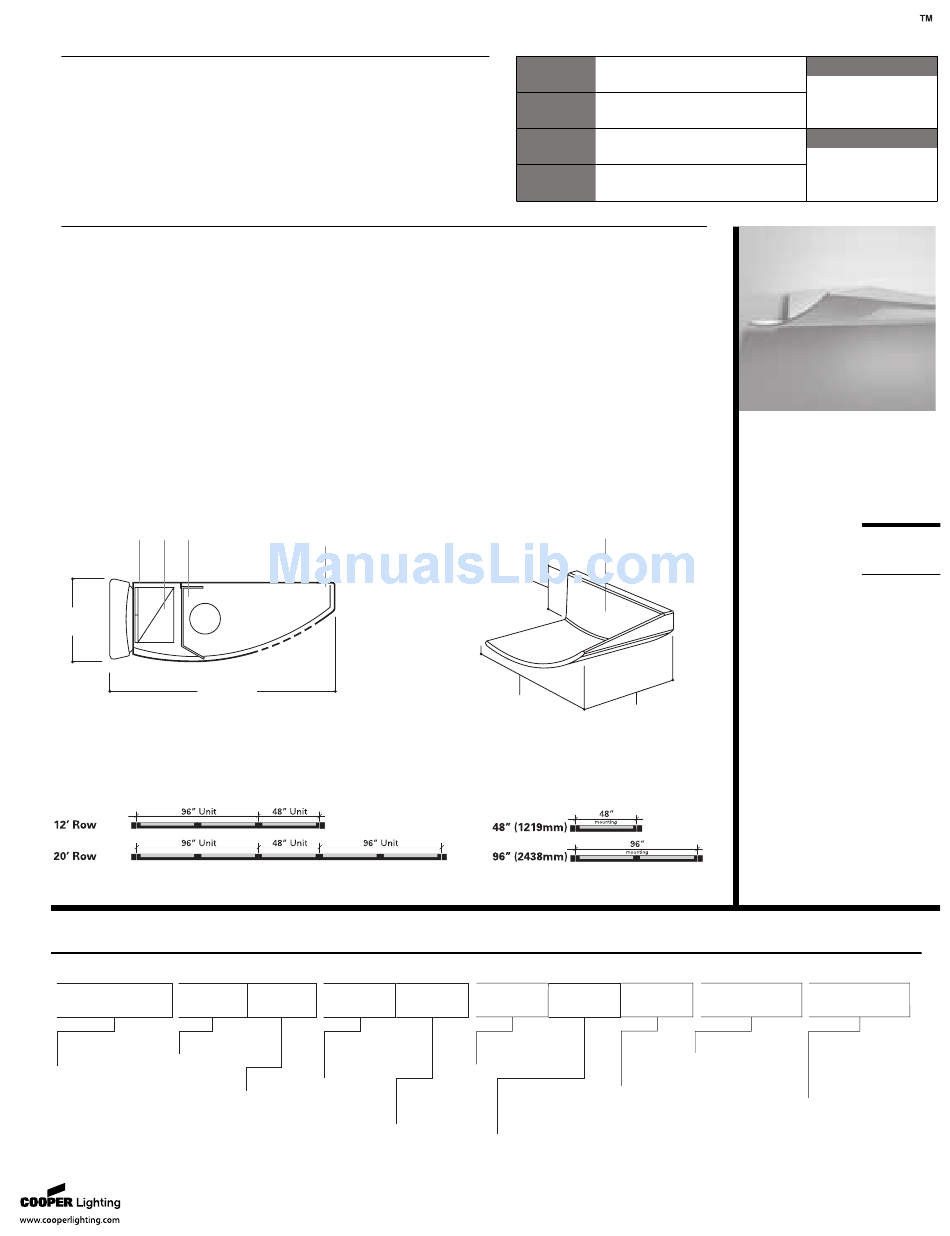

Cooper Lighting Nimbus II Wall Series 701-IW Specification

DESCRIPTION
The Nimbus II Wall series offers simple design and flexibility without
sacrificing performance. Multiple lamp configurations in T8 and T5 high
output fluorescent provide maximum flexibility for the architectural
environment. Nimbus II creates a comfortable and uniformly balanced
environment. All of these elements combined make the Neoray Nimbus II an
excellent selection for private offices, open office areas, VDT workspaces,
classrooms and corridors.
SPECIFICATION FEATURES
A ... Construction
Housing is one-piece, die-formed,
cold rolled steel, forming a 7" x
2-1/2" architectural profile.
Perforated sections are 33% open
with .1563" staggered hole pattern
and opal diffuser. Standard 4'-0"
and 8'-0" luminaire lengths
combine for continuous runs.
B ... End Caps
Standard end caps are precision
die-cast aluminum mechanically
attached without exposed
fasteners.
A D C
2-1/2"
[63mm]
7" [177mm]
M O D U L A R R O W C O N F I G U R AT I O N
• Standard length sections join easily to create rows.
• Sections align with T-grid.
• All sections prewired for through-wiring with quick connectors.
ORDERING INFORMATION
S A M P L E N U M B E R : 7 0 1 I W - S P - 2 T 8 - 1 C - 1 - S U - W A - 2 4
701IW S
Series Optics Up
701IW =Nimbus II S=Specular
Wall Mount
1
Due to various constraints, some options may not be combined with others.
Please consult your Cooper Lighting Representative for availability.
C ... Reflectors
Reflector is die-formed, semi-
specular anodized aluminum.
D ... Electrical
Luminaires are prewired with quick
wire connectors and use UL list
Class P, 265ma T8 electronic
ballasts. Power factor of 95% with
less than 20% THD. Fixtures and
electrical components certified to
UL and CUL standards.
E
P 2 T8
Number of Lamps
(not included)
1=1 Lamp
2=2 Lamps
Optics Down
P=Perforated Lamp Type
(Length)
T8=32W
(4' Unit)
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
E ... Finish
Luminaire housings are standard
white using electrostatically
applied acrylic powder coat paint.
Mounting
Fixture mounts directly to existing
structure over a 2" x 4" standard
electrical box mounted horizontally
in the wall. Refer to installation
section for details.
END CAP B
2-1/2"
[64mm]
7-1/8" [181mm]
5" [127mm]
S T A N D A R D L U M I N A I R E L E N G T H S
1
Number of Voltage
Circuits 1 1=120V
1=1 Circuit 2=277V
3=347V
U= Universal
Wiring 1
C=Standard Circuit
D=Dimming
E=Emergency/Night Light
B=Battery Pack
NEO-RAY
Nimbus II
WALL-MOUNT
Light Distribution
SU-WA
1 SU-WA= Surface/Wall Run Length
Mount Individual or
continuous runs will
be configured with
4' and 8' sections only
(see sample catalog #)
07/20/2007 9:40:15 AM
Type
Date
701-IW
2T8
SEMI-INDIRECT
Indirect - 95.7%
Direct - 4.3%
ADN070872
