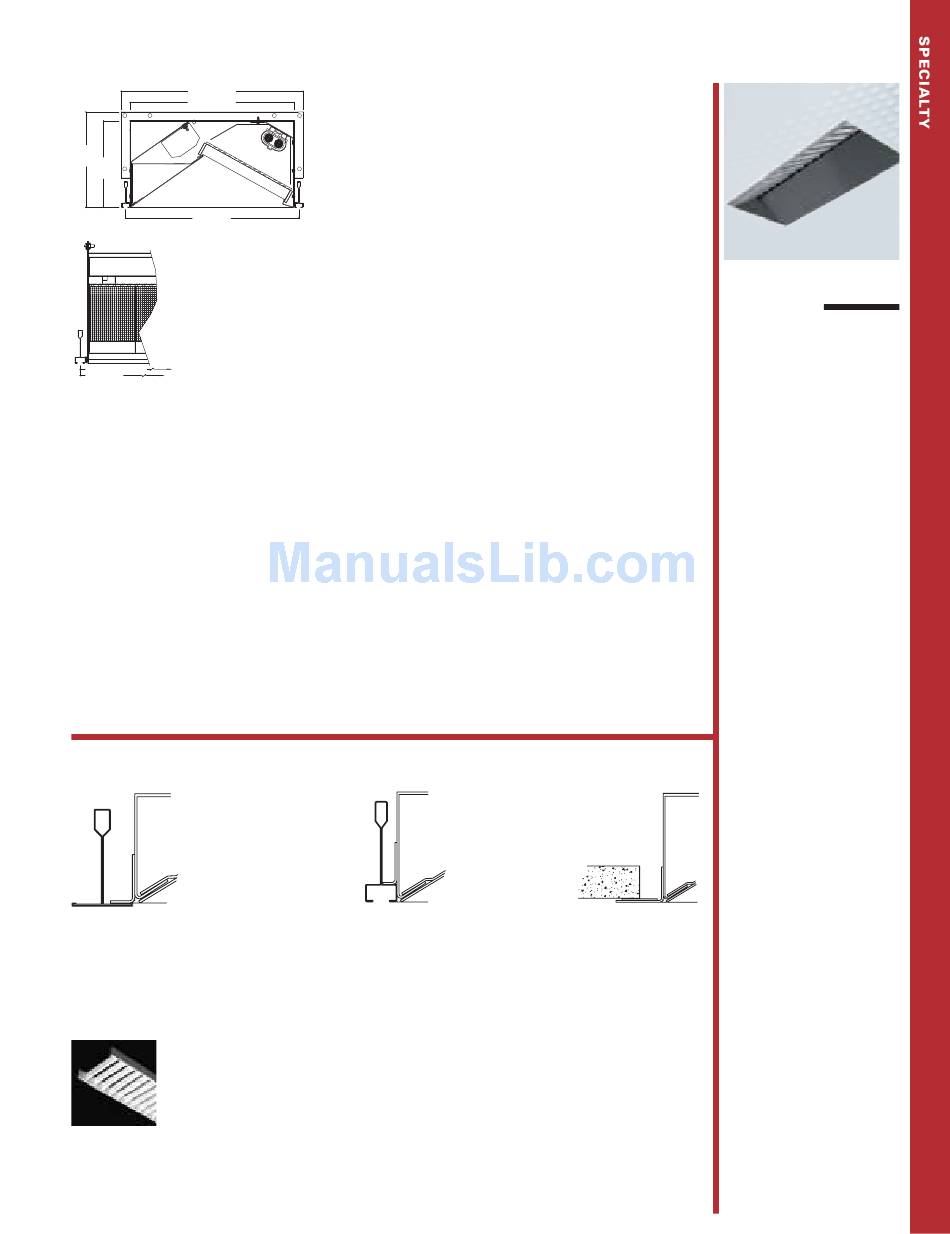

Cooper Lighting NEO-RAY 7VCR Specification Sheet

12-5/8" [321mm]
11-3/8" [289mm]
6-5/8"
[168mm]
6"
[152mm]
12" [305mm]
47-3/8" [1210mm] OAL
C L C L
48" to
[1216mm]
Construction
20-gauge steel housing.
Shielding
.75" high blade baffle 3" oc. with prismatic clear
acrylic overlay.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Recessed.
M O U N T I N G I N F O R M AT I O N
ETG
EXPOSED TEE GRID
S H I E L D I N G O P T I O N S
S62A Lateral Aluminum Baffle with Clear Prismatic Lens Overlay
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 7VCR-12-1BX40W-ETG-1EB-SI-S62A
Series
7VC=Specialty
Mounting
R=Recessed
Fixture Size
12=1'x2'' 14=1'x4' 22=2'x2
Number of Lamps (per cross section) (not included)
1=1 Lamp 2=2 Lamps (T5, T5HO)
Lamp Type
T5 T5HO BX40W
Ceiling Type
ETG=Exposed T-Grid STG=Slot T-Grid
Voltage 1
1=120V 2=277V 3=347V
Ballast
EB=Electronic Ballast (Standard)
Switching
SI=Single Switching DU=Dual Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S62A=Lateral Aluminum Baffle with Clear Prismatic Lens Overlay
1 Due to various constraints, some options may not be combined with others.
STG
SLOT TEE GRID
BX50W
SR=Sheet Rock
U=Universal
• Direct - asymmetric light
DB=Dimming Ballast
distribution.
• Composite prismatic/baffle
design for high uniform
vertical illumination.
• T5 and long twin tube
lamping.
• Controlled light distribution
prevents light spillage into
the video camera and
presentation screen.
• Housings fit all ceiling types
with ultra minimal exposed
trim.
SR
SHEET ROCK
NEO-RAY ™
7-VCR
D I R E C T- A S Y M M E T R I C
777
COOPER LIGHTING
