Features:

DCF77 radio controlled time function
Calendar up to the year 2099
Day of week in 7 languages user selectable: English, German, French, Italian, Spanish, Dutch and Danish
Time in 12/24 hour format.
2 x daily alarm function (can set alarm repetition)
Automatic snooze function (OFF or 5~60min)
Temperature alternatively in °C or °F
Indoor temperature measurement ranges: -9.9°C (14°F) ~ 50°C (122°F)
Outdoor temperature measurement ranges: -40°C (-40°F) ~ 70°C (158°F)
Wireless outdoor sensor:
— Wall mounting or table standing
— 433.92MHz RF transmitting frequency
— Maximum transmission power: 8 dBm
— 60 meters transmission range in an open area
Power supply:
— Base station
Battery: 4 x LR6 AA Mignon
— Wireless outdoor sensor:
Battery: 2 x LR6 AA Mignon
Note:
The wireless outdoor sensor can work at -30°C to +70°C. Please choose the right battery according to the limit temperature of the wireless sensor:
Alkaline zinc manganese battery can work at -20°C to +60°C
Polymer lithium ion rechargeable battery can work at -40°C to +70°C.

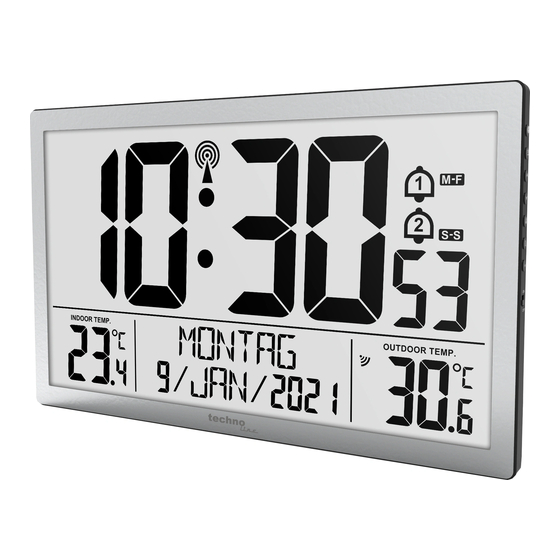

Overview:

Part A – LCD display
A1: Radio controlled icon
A2: Hours and minutes of time
A3: DST icon
A7: Indoor temperature
A9: Outdoor temperature
A11: Month
WS 8113 - Instructions manual
A4: Alarm1 icon
A5: Alarm2 icon
A6: Weekday
A8: Date
A10: Year
EN1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS 8113 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Technoline WS 8113

  • Page 1 WS 8113 - Instructions manual Features:  DCF77 radio controlled time function  Calendar up to the year 2099  Day of week in 7 languages user selectable: English, German, French, Italian, Spanish, Dutch and Danish  Time in 12/24 hour format.
  • Page 2 Part B – Buttons and backcase B1: “SNOOZE” touch position B2: “ ” button B3: “ ” button B4: “ ” button B5: “ ” button B6: “ ” button B7: “ ” button B8: Hanging hole B9: Support frame B10: Battery compartment Part C –Wireless outdoor sensor: C1: Transmission signal LED...
  • Page 3 Installing the outdoor sensor:  Find an appropriate place for the outdoor sensor.  For wall mounting: hang the outdoor sensor with the backside hole on one screw or a nail in the wall. Note:  Make sure you install the outdoor sensor within a radius of 60 meters from the weather station. If there is an obstacle between the outdoor sensor and the weather station, shorten the distance between the sensor and the weather station according to the actual location to prevent the wireless signal from penetrating the obstacle and affecting the quality of the data transmission.
  • Page 4 Danish  When setting the minutes, the seconds will automatically reset to start from 0 onwards.  In the time setting mode, you can press and hold the “ ” or the “ ” button to quickly change the setting value. ...
  • Page 5 Declaration of conformity Hereby, Technotrade declares that this product WS 8113 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665081137 Environmental reception effects The station obtains the accurate time with wireless technology.
