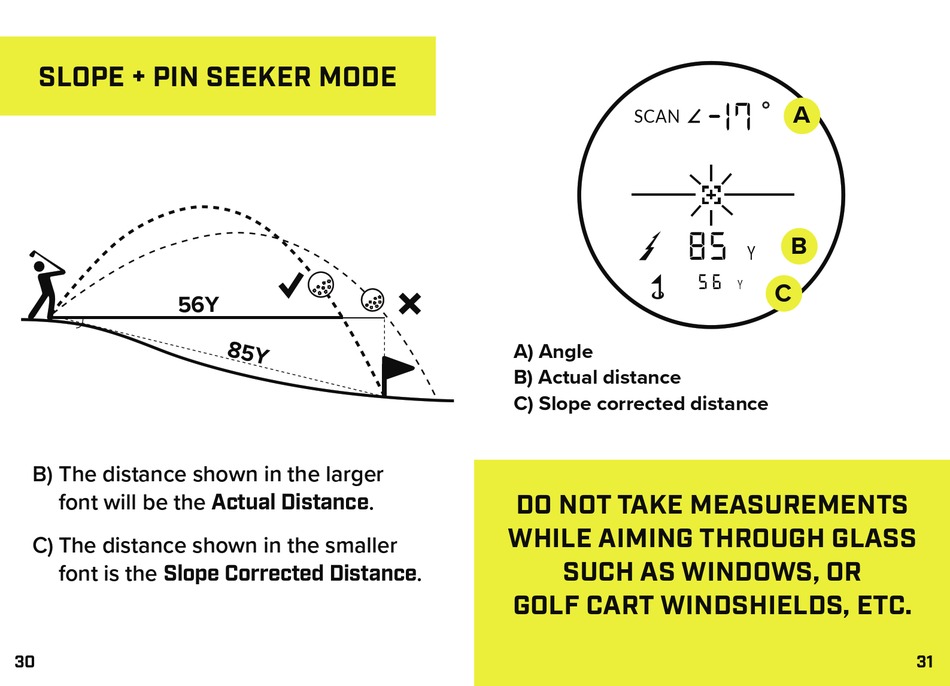

SLOPE + PIN SEEKER MODE
56Y
B) The distance shown in the larger
font will be the Actual Distance.
C) The distance shown in the smaller
font is the Slope Corrected Distance.
30
SCAN
A) Angle
B) Actual distance
C) Slope corrected distance
DO NOT TAKE MEASUREMENTS
WHILE AIMING THROUGH GLASS
SUCH AS WINDOWS, OR
GOLF CART WINDSHIELDS, ETC.
A
-17
85 B
Y
5 6
Y C
31 31
