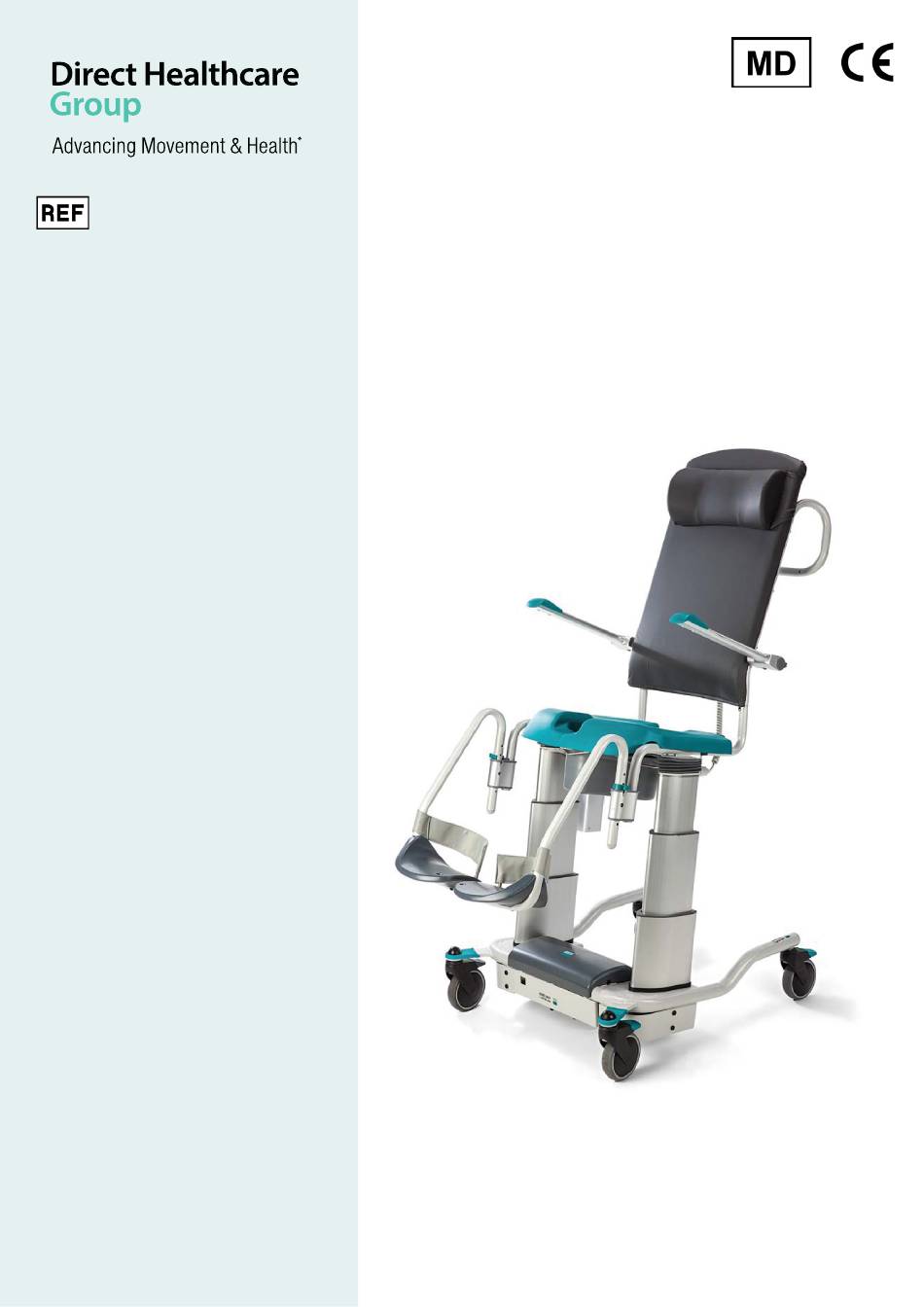

- Page 1 EASY HighBack 56-271 User Manual 56-271-CS 56-271-CS-WIBU 56-271/100-CS- Technical Manual WIBU Service Manual SWL: 150 kg/ 330 lbs D I R E C T H E A LT H C A R E G R O U P. C O M...
-
Page 2: Table Of Contents
EASY H I G H BA C K EASY HighBack EASY in the high-back version (HB) is a development of the conventional concept using the back strap/neck support already available. This Hygiene Chair is fitted with a high, padded, water-repellent back complete with neck support (available in two versions). -
Page 3: Intended Use
EASY H I G H BA C K 1. Intended Use The Hygiene chair allows the user physical support during showering, washing, drying and dressing in safe and comfortable seated position. Hygiene chair and accessories are intended to be use in dry and wet rooms (not immersed in water), in Home Healthcare environment and Professional Healthcare facility environment. - Page 4 EASY H I G H BA C K Contraindications The Hygiene Chair may not be used by patients above the maximum weight indicated on the labels and in this manual. The tilt mechanism should only be operated by the caregiver. The chair is not designed to be used as seating for extended periods.
- Page 5 EASY H I G H BA C K Warnings Do not use the chair when defective or malfunctioning. All castor locks are foot-operated. – Do not operate the castor locks by hand. Never stand on the foot supports as there is a risk of tipping. The battery can be damaged if not charged at least every 14 days in the “On”...
-
Page 6: Changing Seat Height And Tilt Angle
EA S Y H I G H BA C K 3. Changing Seat Height and Tilt Angle Normal up/down; Rapid up/down. NOTE! The seat has a soft start for around 5 sec. before the correct speed is achieved. Make sure the footrest does not touch the floor when the seat is at lower levels –... -
Page 7: Battery Charging
EASY H I G H BA C K 4. Battery Charging Charge the battery by connecting the charger supplied to a wall socket and the remote control connector. A discharged battery takes around 12 hours to charge to 80% and 24 hours to reach 100% charge. While the battery is charging, the battery indicator will flash showing actual charge level. -
Page 8: Installing Seat With The Rear Opening (Accessory)
EASY H I G H BA C K 9. Installing Seat with the Rear Opening (Accessory) The seat comprises two halves that are snapped in place with the aid of clamps on the seat’s underside. 10. Sanitary Pan The sanitary pan is slid into position from behind between the seat and wire guides as shown in fig. -
Page 9: Reset Service Indicator
EASY H I G H BA C K 14. Reset Service Indicator The remote control has a service indicator for periodic maintenance reminder (min once a year). The service indicator measures voltage and is activated after 11 months (flashes every 4 seconds). After 12 months the indicator will glow steadily. The indicator is reset by holding down buttons on the remote control (top line, <fast up>, <fast down>) for 30 seconds. -
Page 10: Replacement Of Remote Control
We normally provide a 2-year warranty on manufacturing defects (does not apply to wear details or battery). The battery is given a 6 month warranty on manufacturing defects. For more information or questions please contact: Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Tel: +46 (0)8-557 62 200 info.se@directhealthcaregroup.com... -
Page 11: Maintenance
EA S Y H I G H B A C K 20. Maintenance The chair is made from stainless steel/powder coated tubing and aluminium. Exposed, unpainted parts are made of aluminium or stainless steel. Make sure the product feels firm and stable – no fasteners may be loose. Damaged or defective parts should be replaced as soon as possible. - Page 12 EASY H I G H BA C K Actuator Raise/lower/pillars Tilt function Voltage Lift 100kg/pelare 150 kg Stroke 400 mm 75 mm Installation dimensions 377 mm 198 mm Protection class IP66W Protection class pillars IPX5 Speed - without load 32 mm/s 11,5 mm/s Speed - full load 19 mm/s...
-
Page 13: Dimensions
EASY H I G H BA C K Control box (A): Spindle cable (B): Connection connector # 1 / Spindle cable Connects to input # 1 on control box Actuators up / down - left Remote control Actuators up / down - right Battery Actuators tilt Connects to outgoing connector on control box... -
Page 14: Information On Emc
EASY H I G H BA C K 23. Information on EMC The Easy Hygiene Chair has been tested to work in Hospitals and Home Health Care environments. The main function of the Hygiene Chair is to be able to operate upwards / downwards, backwards / forwards as well as charging the battery. - Page 15 EASY H I G H BA C K The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance...
- Page 16 EASY H I G H BA C K The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. Immunity test IEC 60601 test Compliance level Electromagnetic environment - guidance...
-
Page 17: Parts List
EASY H I G H BA C K 25. Parts List 58-248-M Headrest M 58-248-L Headrest L 58-247-FLEX-1 Back/Foam-Flex 58-295-1 Backrest HB 57-288-2 Armrest lock 58-294-L/R Armrest HB (left/right), alloy only 58-209 Handrest 58-284-1 Seat frame HB 57-250-1 Plastic seat 56-233 Plastics/keyhole, green 58-280-L/R... - Page 18 EASY H I G H BA C K DIRECTH E ALTH C A R EG RO UP.C O M...
-
Page 19: Accessories
EASY H I G H BA C K 27. Accessories Part no. Description 56-205 Shower seat around hole 56-206 Soft PU seat 56-209 Sanitary Pan 56-212-EASY Barrier (52cm), Easy 56-213 Splashback 56-214 Armrest lock (M8) 56-216 Infill 56-217 Waist belt/thigh belt 56-218 Slides 56-220-EASY... - Page 20 Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Medical Device Class I Tel: +46 (0)8-557 62 200 Medical Device Class I. The product complies with the re- info@directhealthcaregroup.com www.directhealthcaregroup.com quirements of the Medical Devices Regulation 2017/745.
