Summary of Contents for Direct Healthcare Group EASY SoftBack
- Page 1 EASY SoftBack 56-270 User Manual 56-270-CS 56-270/100-CS 56-270-CS-UK Technical Manual 56-270/LOW-CS Service Manual SWL: 150 kg/ 330 lbs D I R E C T H E A LT H C A R E G R O U P. C O M...
-
Page 2: Table Of Contents

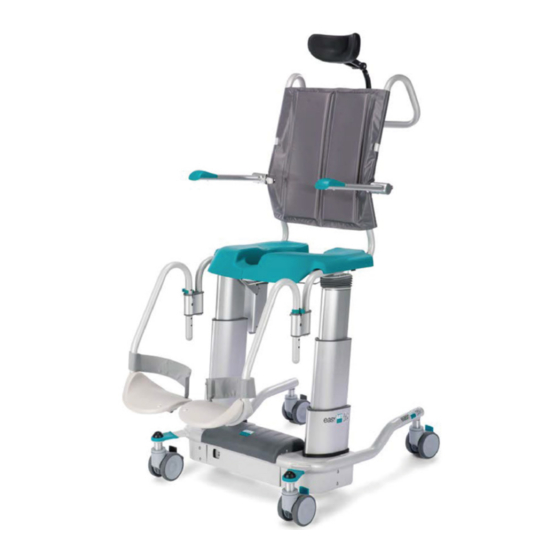

EASY SO F TBA C K EASY SoftBack EASY is a well-designed Hygiene Chair with a great many advanced functions. The Hygiene Chair is designed with telescoping pillars to create as much space and flexibility as possible for care personnel. The Chair is suitable for use in shower and toilet environments in care institutions and at home. -
Page 3: Intended Use
EASY SO F TBA C K 1. Intended Use The Hygiene chair allows the user physical support during showering, washing, drying and dressing in safe and comfortable seated position. Hygiene chair and accessories are intended to be use in dry and wet rooms (not immersed in water), in Home Healthcare environment and Professional Healthcare facility environment. - Page 4 EASY SO F TBA C K Contraindications The Hygiene Chair may not be used by patients above the maximum weight indicated on the labels and in this manual. The tilt mechanism should only be operated by the caregiver. The chair is not designed to be used as seating for extended periods. This Hygiene Chair is designed for indoor use on level surfaces and in wet spaces.
- Page 5 EASY SO F TBA C K Warnings Do not use the chair when defective or malfunctioning. All castor locks are foot-operated. – Do not operate the castor locks by hand. Never stand on the foot supports as there is a risk of tipping. The battery can be damaged if not charged at least every 14 days in the “On”...
-
Page 6: Changing Seat Height And Tilt Angle
E A SY S O F TB A CK 3. Changing Seat Height and Tilt Angle Normal up/down; Rapid up/down. NOTE! The seat has a soft start for around 5 sec. before the correct speed is achieved. Make sure the footrest does not touch the floor when the seat is at lower levels –... -
Page 7: Battery Charging
EASY SO F TBA C K 4. Battery Charging Charge the battery by connecting the charger supplied to a wall socket and the remote control connector. A discharged battery takes around 12 hours to charge to 80% and 24 hours to reach 100% charge. While the battery is charging, the battery indicator will flash showing actual charge level. -
Page 8: Armrest Lock
EASY SO F TBA C K 9. Armrest Lock The armrest is locked in the extended position. To lift the armrest, pull out the pin and raise the armrest. 10. Installing Seat with the Rear Opening (Accessory) The seat comprises two halves that are snapped in place with the aid of clamps on the seat’s underside. -
Page 9: Reset Service Indicator
EASY SO F TBA C K 15. Reset Service Indicator The remote control has a service indicator for periodic maintenance reminder (min once a year). The service indicator measures voltage and is activated after 11 months (flashes every 4 seconds). After 12 months the indicator will glow steadily. The indicator is reset by holding down buttons on the remote control (top line, <fast up>, <fast down>) for 30 seconds. -
Page 10: Replacement Of Remote Control
We normally provide a 2-year warranty on manufacturing defects (does not apply to wear details or battery). The battery is given a 6 month warranty on manufacturing defects. For more information or questions please contact: Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Tel: +46 (0)8-557 62 200 info.se@directhealthcaregroup.com... -
Page 11: Maintenance
EA SY SO FTBA CK 21. Maintenance The chair is made from stainless steel/powder coated tubing and aluminium. Exposed, unpainted parts are made of aluminium or stainless steel. Make sure the product feels firm and stable – no fasteners may be loose. Damaged or defective parts should be replaced as soon as possible. - Page 12 EASY SO F TBA C K Actuator Raise/lower/pillars Tilt function Voltage Lift 100kg/pelare 150 kg Stroke 400 mm 75 mm Installation dimensions 377 mm 198 mm Protection class IP66W Protection class pillars IPX5 Speed - without load 32 mm/s 11,5 mm/s Speed - full load 19 mm/s 7 mm/s...
-
Page 13: Dimensions
EASY SO F TBA C K Control box (A): Spindle cable (B): Connection connector # 1 / Spindle cable Connects to input # 1 on control box Actuators up / down - left Remote control Actuators up / down - right Battery Actuators tilt Connects to outgoing connector on control box... -
Page 14: Information On Emc
EASY SO F TBA C K 24. Information on EMC The Easy Hygiene Chair has been tested to work in Hospitals and Home Health Care environments. The main function of the Hygiene Chair is to be able to operate upwards / downwards, backwards / forwards as well as charging the battery. - Page 15 EASY SO F TBA C K The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance Floors should be wood,...
- Page 16 EASY SO F TBA C K The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. Immunity test IEC 60601 test Compliance level Electromagnetic environment - guidance level...
-
Page 17: Parts List
EASY SO F TBA C K 26. Parts List 57-283-EASY Headrest for SB incl. attachment 58-220-1 Backrest SB 57-288-2 Armrest lock 58-245-L/R Armrest SB (left/right), alloy detail only 58-209 Handrest 58-285-1 Seat frame SB 57-250-1 Plastic seat 56-233 Plastic seat/keyhole, green 58-280-L/R Pillars complete (Left / Right) 58-277... - Page 18 EASY SO F TBA C K DIRECTH E ALTH C A R EG RO UP.C O M...
-
Page 19: Accessories
EASY SO F TBA C K 28. Accessories Part no. Description 56-205 Shower seat around hole 56-206 Soft PU seat 56-209 Sanitary Pan 56-212-EASY Barrier (52cm), Easy 56-213 Splashback 56-214 Armrest lock (M8) 56-216 Infill 56-217 Waist belt / Thigh belt, Hygiene Chairs 56-218 Slides 56-220-EASY... - Page 20 Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Medical Device Class I Tel: +46 (0)8-557 62 200 Medical Device Class I. The product complies with the re- info@directhealthcaregroup.com www.directhealthcaregroup.com quirements of the Medical Devices Regulation 2017/745.
