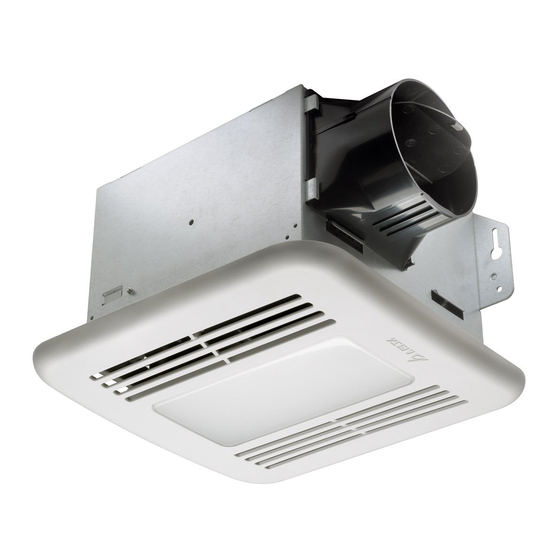

Delta breez GreenBuilder GBR80LED Installation And Operating Instructions

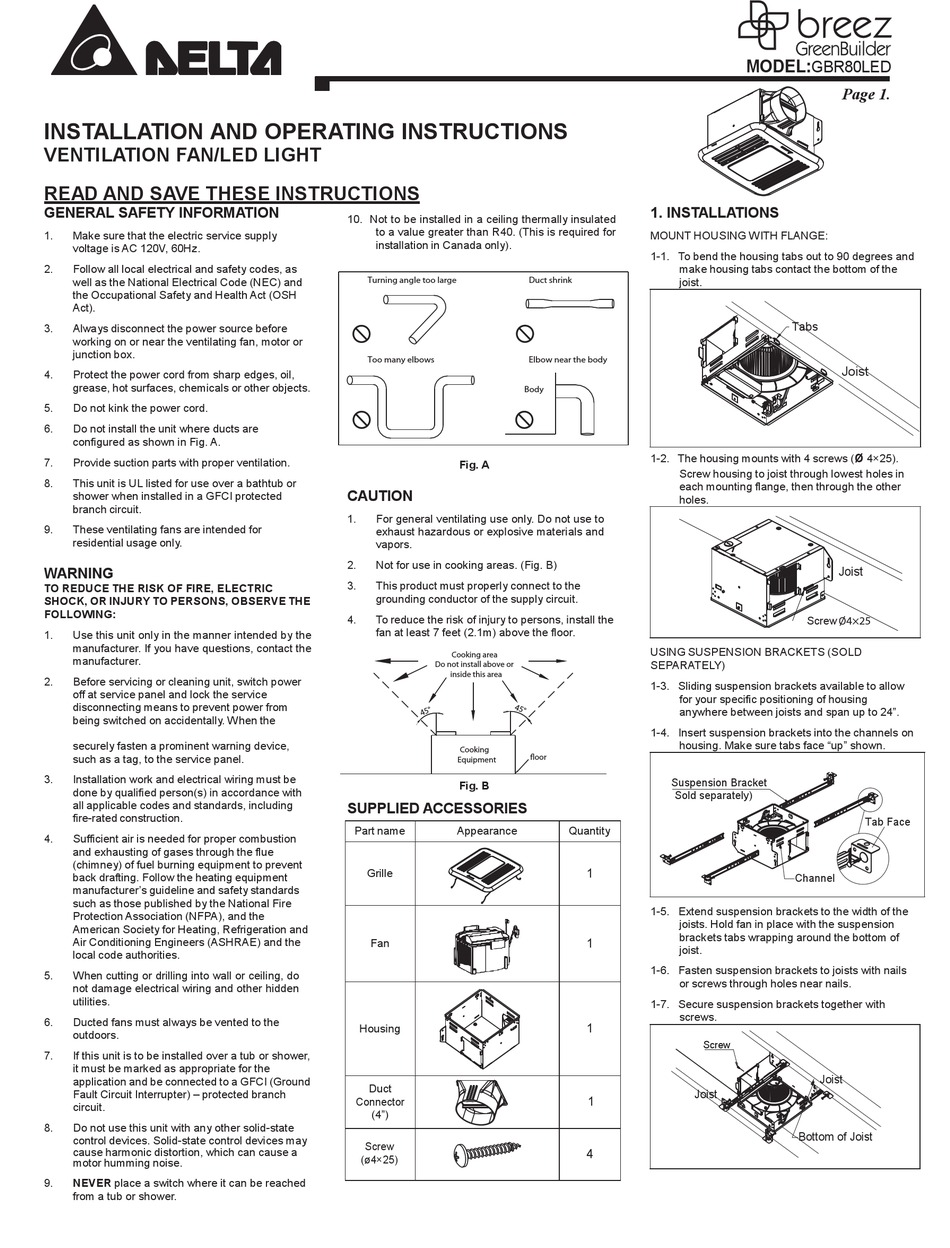

INSTALLATION AND OPERATING INSTRUCTIONS
VENTILATION FAN/LED LIGHT
READ AND SAVE THESE INSTRUCTIONS

GENERAL SAFETY INFORMATION

1. Make sure that the electric service supply
voltage is AC 120V, 60Hz.
2. Follow all local electrical and safety codes, as
well as the National Electrical Code (NEC) and
the Occupational Safety and Health Act (OSH
Act).
3. Always disconnect the power source before
working on or near the ventilating fan, motor or
junction box.
4. Protect the power cord from sharp edges, oil,
grease, hot surfaces, chemicals or other objects.
5. Do not kink the power cord.
6. Do not install the unit where ducts are
configured as shown in Fig. A.
7. Provide suction parts with proper ventilation.
8. This unit is UL listed for use over a bathtub or
shower when installed in a GFCI protected
branch circuit.
9. These ventilating fans are intended for
residential usage only.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
2. Before servicing or cleaning unit, switch power
off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. W hen the
securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
4. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer's guideline and safety standards
such as those published by the National Fire
Protection Association (NFPA), and the
American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE) and the
local code authorities.
5. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the
outdoors.
7. If this unit is to be installed over a tub or shower,
it must be marked as appropriate for the
application and be connected to a GFCI (Ground
Fault Circuit Interrupter) – protected branch
circuit.
8. Do not use this unit with any other solid-state
control devices. Solid-state control devices may
cause harmonic distortion, which can cause a
motor humming noise.
9. NEVER place a switch where it can be reached
from a tub or shower.
10. Not to be installed in a ceiling thermally insulated
to a value greater than R40. (This is required for
installation in Canada only).
Turning angle too large
Too many elbows
Body
Fig. A
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
2. Not for use in cooking areas. (Fig. B)
3. This product must properly connect to the
grounding conductor of the supply circuit.
4. To reduce the risk of injury to persons, install the
fan at least 7 feet (2.1m) above the floor.
Cooking area
Do not install above or
inside this area
Cooking
Equipment
Fig. B

SUPPLIED ACCESSORIES

Part name Appearance
Grille
Fan
Housing
Duct
Connector
(4")
Screw
(ø4×25)

1. INSTALLATIONS

MOUNT HOUSING W ITH FLANGE:
1-1. To bend the housing tabs out to 90 degrees and
make housing tabs contact the bottom of the
Duct shrink joist.
Elbow near the body
1-2. The housing mounts with 4 screws (
Screw housing to joist through lowest holes in
each mounting flange, then through the other
holes.
USING SUSPENSION BRACKETS (SOLD
SEPARATELY)
1-3. Sliding suspension brackets available to allow
for your specific positioning of housing
anywhere between joists and span up to 24".
1-4. Insert suspension brackets into the channels on
housing. Make sure tabs face "up" shown.
oor
Suspension Bracket
Sold separately)
Quantity
1
1-5. Extend suspension brackets to the width of the
joists. Hold fan in place with the suspension
brackets tabs wrapping around the bottom of
1
joist.
1-6. Fasten suspension brackets to joists with nails
or screws through holes near nails.
1-7. Secure suspension brackets together with
screws.
1
Screw
Joist
1
4
MODEL:
GBR80LED
Page 1.
Tabs
Joist
ø
4×25).
Joist
Screw Ø4×25
Tab Face
Channel
Joist
Bottom of Joist
