Summary of Contents for KickAss KAF-75DZ

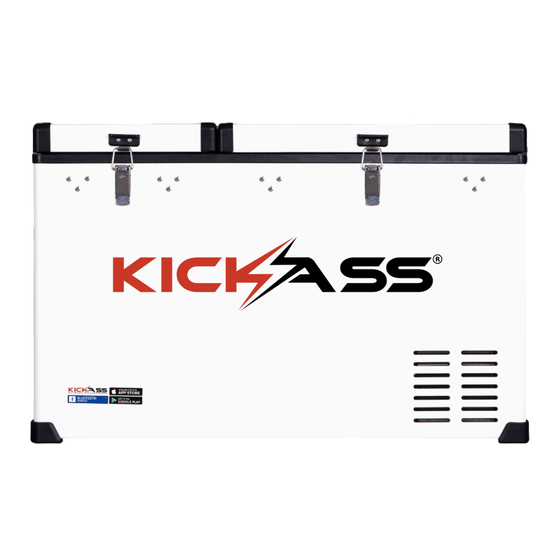

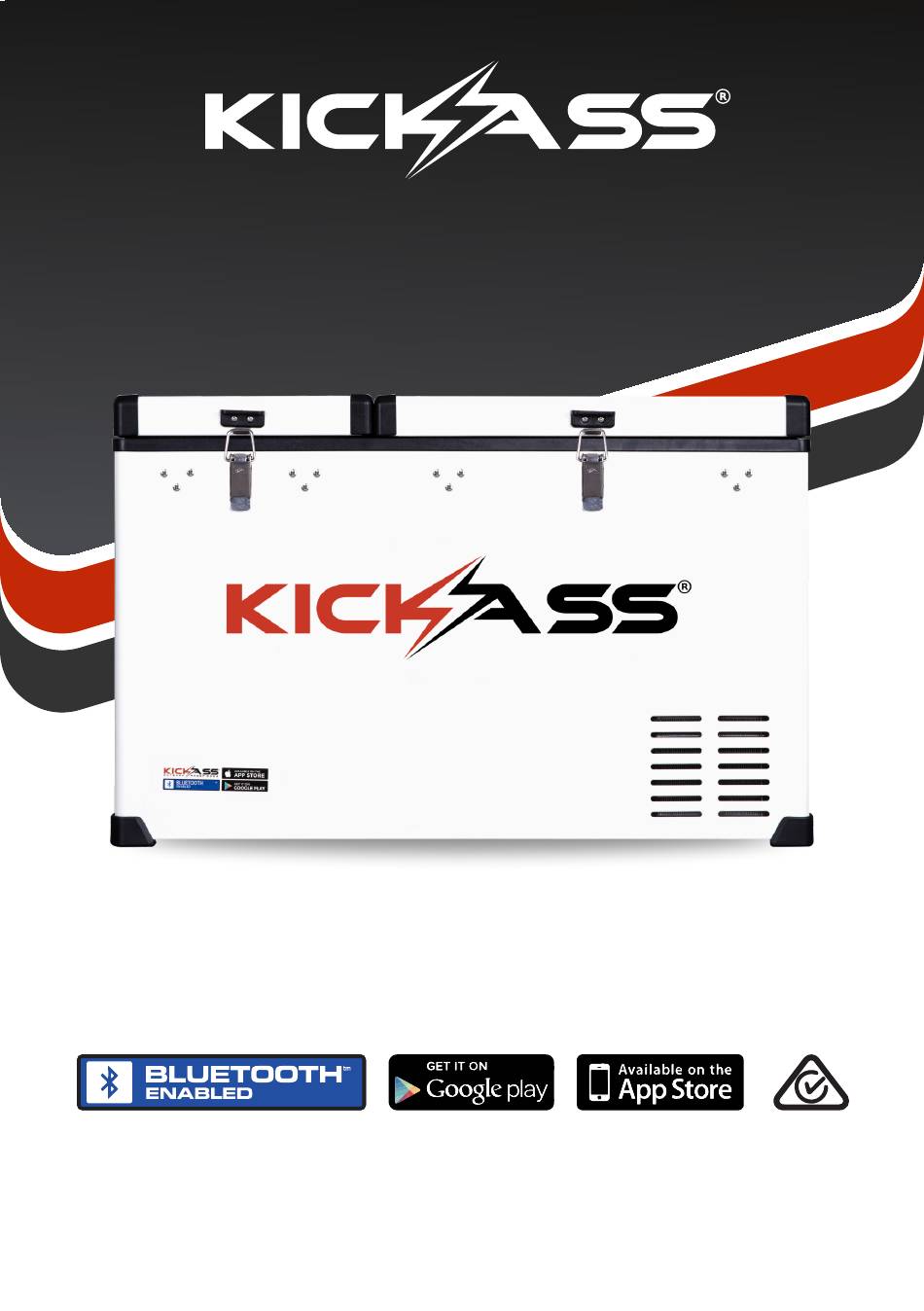

- Page 1 FRIDGE / FREEZER OPERATION MANUAL KAF-75DZ Please read all instructions and the safety section carefully ® before using your new KickAss refrigerator. V2.5...
-
Page 2: Table Of Contents
TABLE OF CONTENTS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Introduction Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -... -
Page 3: Introduction
Thank You For Purchasing A ® KickAss Fridge / Freezer FEATURES Digital electronic thermostat with LED temperature display Bluetooth for remote control and monitoring of the fridge with your smartphone Reliable refrigeration system using the Secop compressor Efficient electronic technology, low energy consumption... -
Page 4: Important Safety Features
WARNING: Do not use or attempt to repair damaged power cords. If the AC power cord is damaged, it must be replaced by KickAss Products or an Authorised service agent. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. -
Page 5: Contents Of The Box
To return your used device, please use the return and collection systems. CONTENTS OF THE BOX AC Power Cable KickAss Fridge / Freezer - Main Unit ® 12 Volt DC Anderson Style Power Cable... -
Page 6: Setup
SETUP CONNECTING THE FRIDGE TO POWER Connecting to AC To connect to AC Power, connect the supplied AC Plug to the input port on the fridge and switch on the power. Ensure the mains power supply is adequately protected with a residual current device. Connecting to DC To connect to DC power, use the supplied 2.1m Anderson to Anderson style extension lead, ensuring the end with fuse is furthest away from the fridge. -
Page 7: Low Battery Protection Settings
LOW BATTERY PROTECTION SETTINGS The fridge is equipped with three battery protection settings; high, medium and low. The below settings should be set for the specific battery type being used. Note: With the compressor running, due to voltage drop, it is likely the voltage used for these protections is 0.3-0.5 volts below the voltage of the battery, this will depend on the wiring used to connect the battery to the fridge. -
Page 8: Bluetooth
BLUETOOTH CONNECTION BLUETOOTH APP To get started please download the KA Products Main App from the Google Play Store or the Apple iTunes Store. If the App is already downloaded on your device, you must ensure that any updates to the App are installed prior to connecting. - Page 9 Settings Page Graphical Display Page The settings page can be used to set the The graphical display page can be used to left and right bin temperatures or individually map the 24 hour temperature of both bins as turn them on or off. It can also be used to well as the 24 hour voltage of the battery being adjust battery protection, cooling speed and used.
-
Page 10: Troubleshooting The Bluetooth App
Ÿ Uninstall the App or close all Apps in the background Ÿ Turn both the fridge and the phone off for a couple of minutes Ÿ Reinstall the App Ÿ If you are still having problems please do not hesitate to contact Kickass... -
Page 11: Rotating The Lids
ROTATING THE LIDS The lids can be rotated such that they can be opened from either side of the fridge. to do this, simply: Unbolt the hinges and the latches from the base of the fridge and remove the screws covering the blank holes on either side Lift lids away from fridge base... - Page 12 Place lids in place Screw the hinge and latches in place and return the screws covering the blank holes...
-
Page 13: Emergency Override Switch
The sound of water can be heard from inside the unit Ÿ This is normal, due to the flow of the refrigerant Unusual noise when refrigerator is working Ÿ Ensure the refrigerator is on a level surface Ÿ Loose componentry inside the refrigeration compartment (contact KickAss Products) -
Page 14: Error Codes
ERROR 6 Ÿ The control board is not detecting the thermostat, there may be a loose wire or the thermostat may have failed, contact KickAss Products to diagnose fault Note: The other bin will continue to function as normal Thermostat short circuit fault ERROR 7 Ÿ... -
Page 15: Warranty Information
WARRANTY INFORMATION Warranty Period: Warranty Exclusions: KickAss Products Pty Ltd (KickAss) of 2 Mallet Our warranty is non-transferable and is only Street, Kunda Park, QLD, 4556, offers a 60 offered to the original purchaser of our month warranty from date of purchase against product.
