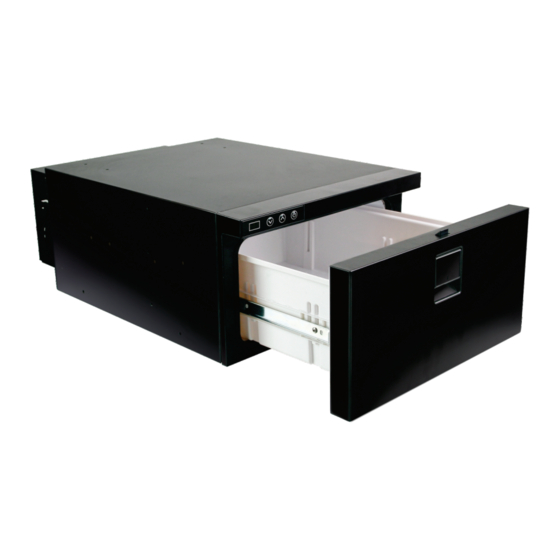

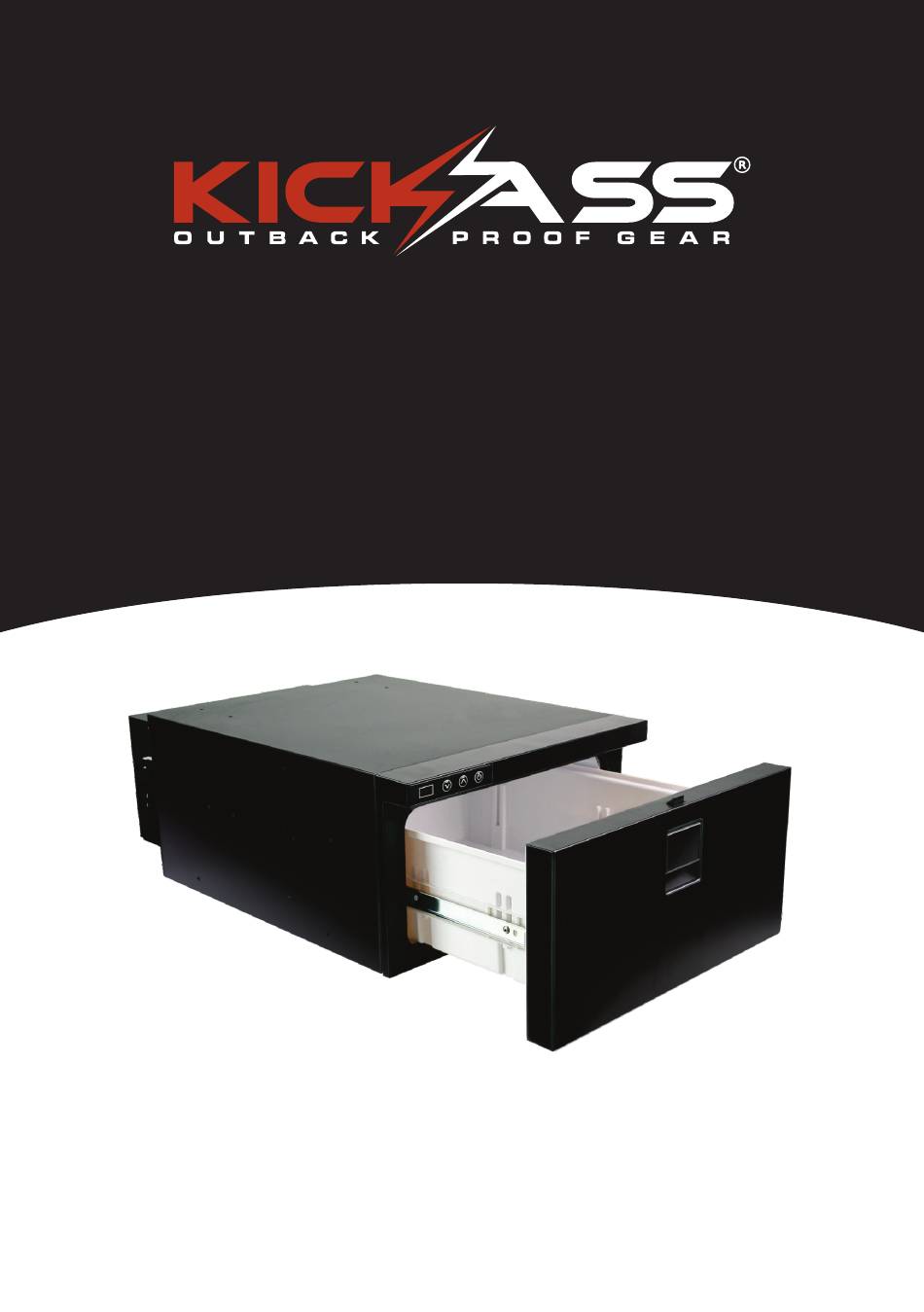

- Page 1 30L DC COMPRESSOR DRAWER FRIDGE KAF-30DS...
-
Page 2: Important Safety Symbols
Thank You For Purchasing A KickAss® Fridge / Freezer Features: Digital electronic thermostat with LED temperature display Reliable refrigeration system with Secop compressor Efficient electronic technology, low energy consumption Multi-voltage system (DC 12-24 Volt) and (AC 220-240 Volt) Adjustable low voltage battery protection Please ensure all safety and operational instructions are read carefully to get the maximum benefit from your new fridge. -
Page 4: Product Features
PRODUCT FEATURES Slide out drawer Drawer latch Soft touch controls Power connection Compressor cooling vents SPECIFICATIONS TECHNICAL DATA (STANDARD CONFIGURATIONS) Operating voltage 12 o 24 VDC Refrigerant gas and charge R134a 0,044 kg - CFC Free (CO eq. 0,063 t) Dimensions 260 x 440 x 695 (mm) Net weight... -
Page 5: Installation
INSTALLATION Mounting KickAss DRAWER refrigerators have been designed and constructed exclusively for recessed installation and installation that is in compliance with standard dimensions. The refrigerator must always be in a horizontal position, with the compressor’s rubber feet at the bottom. The compressor is capable of functioning at angles of up to 30°. The compressor can become damaged with any higher inclinations. - Page 6 TEMPERATURE ADJUSTMENT SETTINGS TEMPERATURE REGULATION WITH DIGITAL DISPLAY DISPLAY FUNCTIONS • Switching on: Press and hold the 1 button for 4 seconds. • Shut-down (Stand-By): Press and hold the 1 button for 4 seconds. • Internal temperature adjustment buttons 2 and 3. •...
- Page 7 GRAPHICAL DISPLAY OF THE SEQUENCE FOR SETTING THE PRO MENU...
-
Page 8: Power Options
OFFSET Data which is used to align the temperature shown on the display with the actual internal temperature. Adjustment for each offset can vary from -8 / +8. After a few hours of refrigeration system operation, insert a digital thermometer (not included) inside the compartment in the position where you wish to have a more precise temperature and check that the temperature indicated on the display coincides with the temperature read on the digital thermometer. -
Page 9: General Troubleshooting
TROUBLESHOOTING DISPLAY ERRORS TABLE Error Cause Insufficient voltage (Volts below the cut-in / cut-out value) Defective fan Control unit error or compressor blocked The refrigeration system is too loaded with gas and/or the compressor is running at a number of revolutions that is too low Room temperature is too high Internal temperature sensor error GENERAL TROUBLESHOOTING... - Page 10 The fuse blows. The wrong fuse is being Check the fuse: see table in section used. Defective electronic 4.4. Replace the electronic control unit. control unit. The compressor is Battery low or electrical Check wiring conditions, examining for operating intermittently. cables in poor condition.
-
Page 11: Scan Qr Code
THANK YOU FOR CHOOSING KickAss® is committed to providing you with the most up to date product information. As printed material is harder to update we have created an online user guide portal including videos, user guides and product tips so you can view or download the latest product information at any time. -
Page 12: Warranty Information
WARRANTY INFORMATION This KickAss product comes with a 3 year warranty on the whole unit, for your peace of mind. In the unlikely event this product fails when used according to our user guide, we will either repair or replace it. For full warranty terms and conditions on this product, please see the user guide at: userguides.kickass.com.au...
