Summary of Contents for LG PN7W

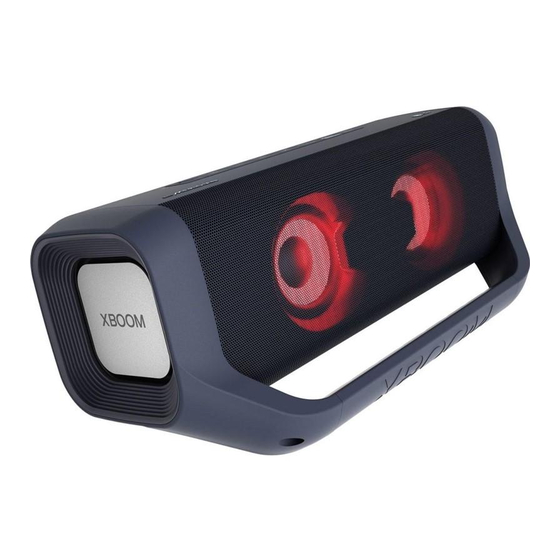

- Page 1 OWNER’S MANUAL Portable Bluetooth Speaker Please read this manual carefully before operating your set and retain it for future reference. MODELS PN7/PN7W/PN7G/PN7R MFL71709723 www.lg.com 2105_Rev03 Copyright © 2020-2021 LG Electronics Inc. All Rights Reserved.
- Page 2 Getting Started Safety Information WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled RISK OF ELECTRIC SHOCK with liquids, such as vases, should be placed on the DO NOT OPEN apparatus.
- Page 3 Getting Started CAUTION concerning the Power Cord NOTICE: For safety marking information including product identification and supply ratings, please refer The Power Plug is the disconnecting device. In case to the main label on the bottom or the other surface of an emergency, the Power Plug must remain readily of the product.
- Page 4 Getting Started Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
-
Page 5: Table Of Contents
– Listening to music stored on the BLUETOOTH devices Multi phone pairing Using the LG XBOOM App – About “LG XBOOM” App – Install “LG XBOOM” App onto Your Bluetooth Device – Activate Bluetooth with “LG XBOOM” App Dual Mode Connection Other Operation –... -
Page 6: Getting Started
Water-proof (IPX5) LG XBOOM This speaker is water-proof according to IPX5. LG XBOOM is an app designed to let you take control IPX5 is “Degrees of protection against ingress of of some of LG’ s latest audio devices. (Page 23- water". -
Page 7: Front
Getting Started Front a Battery LED b Power LED - Plays, pauses or skips playback on the Bluetooth mode. (Page 12) c Bluetooth LED - Receives a call on the Bluetooth device. d dts Stereo Plus LED (Page 13) e SOUND BOOST LED - Mutes the sound on the AUX mode. -
Page 8: Rear
Getting Started Rear a Port cover d RESET button b DC IN 5 V USB (C type) port for charging Connects two speakers for Dual Mode. (Page 25-26) c AUX Listens to music from your portable device. f Dual Mode LED... -
Page 9: Operating
AC adapter is not supplied. It is recommended that you use the 5 V AC adapter approved by LG Electronics Inc. (more than 2 A) with this speaker because of danger of explosion. If you do not use the recommended adapter, charging... -
Page 10: Checking Battery Status
1 button press for 2 seconds. y Battery checking status is not possible when the speaker is charging. y If the speaker is connected to your smartphone, you can check the battery status on “LG XBOOM” app. It may vary from actual battery capacity. -
Page 11: Basic Operations
Note LG-PN7(XX) y In AUX mode, Bluetooth LED turns off. y Once pairing is performed, it does not need to be done again even if you turn off this unit. y When switching AUX mode to Bluetooth mode, Bluetooth LED turns on but there is no sound. -
Page 12: Simple Operation Guide
Press the 1 button. Power LED turns off with the sound. Power Off When Bluetooth LED blinks, select Bluetooth LED turns on with the LG-PN7 (XX) from device list on your Bluetooth pairing sound. Bluetooth device. During the search for another device, the Bluetooth LED blinks. -
Page 13: Handsfree Function
Operating Note Handsfree Function y During Handsfree Function, Voice Command is not supported. You can receive incoming call on your Bluetooth y Only smartphone is available to use this device to this unit. Connect the unit to a Bluetooth function. device. -
Page 14: Voice Command
Operating Note Voice Command y During Handsfree Function, Voice Command is not supported. You can speak to operate the voice command of your y When the voice command time limit is smartphone through speaker’ s microphone by using exceeded on smart devices, this function is the voice command app or the Siri. -
Page 15: Mood Light
Forest Yellow tone light turns on. To enable My Style option, you My style have to customize with “LG XBOOM” app. 2 seconds Mood light turns off. Note y If you play the music, Mood light is synchronized to the music. -
Page 16: Sound Effect
Standard natural. Note y Custom EQ can customize sound effect with “LG XBOOM” . y When you turn the speaker back on, the last used option will be on. y You can adjust sound effect using “LG XBOOM” app. y When you select ”Standard” sound effect, you can enjoy premium sound with MERIDIAN technology. -
Page 17: Listening To Music From Your External Device
Operating Listening to Music from 1. Turn the power on by pressing 1 button. 2. Connect the external device to the AUX (3.5mm) Your External Device connector of the unit. 3. Turn the external device on and start playing. The unit can be used to listen to the music from Note many types of external device. -
Page 18: Using Bluetooth® Wireless Technology
This unit is compatible with following profile. found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your A2DP (Advanced Audio Distribution Profile) unit appears as “LG-PN7 (XX)” . HFP (Handsfree Profile) AVRCP (A/V Remote Control Profile) Bluetooth... - Page 19 Operating Note 3. Select “LG-PN7 (XX)” . y When using Bluetooth technology, you have to make a connection between the unit and the Bluetooth device as close as possible and keep the distance close. However you may experience issues in the...
- Page 20 Operating Controls connected Bluetooth device You can control connected Bluetooth device from the unit; play, pause, skip, volume. Note y Only Android OS and iOS is available to use this function. y This function may not be supported depending on the Bluetooth device, or operated differently.
-
Page 21: Multi Phone Pairing
Operating Multi phone pairing 3. Select "LG-PN7 (XX)" from device list on another Bluetooth device. The unit can be connected to 2 Bluetooth devices at the same time. LG-PN7(XX) Pairing with Two Devices 1. Connect the unit to a Bluetooth device. - Page 22 Operating Note y When you use Dual Mode, the multi phone y After multi-pairing connection, it takes a little pairing connection is not supported. Press the time for the music to be played depending on 3 button to cancel Dual Mode. the Bluetooth devices.
-
Page 23: Using The Lg Xboom App
“LG XBOOM” app brings a suite of new features to this unit. To enjoy more features, you are recommended to download and install free “LG XBOOM” app. Here is introduce a few of the many features of “LG XBOOM” app. <Android> <iOS>... -
Page 24: Activate Bluetooth With "Lg Xboom" App
Store)” or “Apple App Store” icon. Tap “LG XBOOM” app icon on the home screen to 2. In the search bar, type in the “LG XBOOM” and open “LG XBOOM” app, and go to the main menu. search it. -
Page 25: Dual Mode Connection
Operating Dual Mode Connection 2. If two speakers are successfully connected, blinking Dual Mode LEDs will stay white. First hear beep sound at main speaker, and then at other You can enjoy the sound in stereo by using two speaker. speakers. - Page 26 If you connect 3.5 mm stereo cable in Dual Mode, Mode. it will cancel Dual Mode and then change to AUX y When you want to use the Multi mode by “LG mode. XBOOM” app., disable Dual mode and start Multi...
-
Page 27: Other Operation
Please press the " 1 " Button to turn the unit off or the battery will be Turn on/off the beep sound completely discharged. Set up the beep sound through "LG XBOOM" app: "LG XBOOM" menu [ [Setting] [ [Beep Sound]... -
Page 28: Troubleshooting
Troubleshooting Troubleshooting Problem Cause & Correction y The battery is discharged. Recharge the battery. No Power. y Connect the unit to the power supply with the AC adapter. y The unit or your smart device’ s volume is set to minimum. Check and adjust the volume of the unit or Bluetooth device’... -
Page 29: Appendix
Apple performance standards. Apple is not registered trademarks owned by the Bluetooth responsible for the operation of this device or its SIG, Inc. and any use of such marks by LG compliance with safety and regulatory standards. Electronics is under license. -
Page 30: Handling The Unit
Appendix Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit. -
Page 31: Specifications
Appendix Specifications General 5 V 0 2 A (AC adapter) Power requirements Built-in rechargeable battery Power consumption Refer to the main label. Dimensions (W x H x D) Approx. 333 mm X 127 mm X 163 mm Operating temperature 5 °C to 35 °C Operating humidity 5 % to 60 % RH Water-proof...
