INSTRUCTION MANUAL

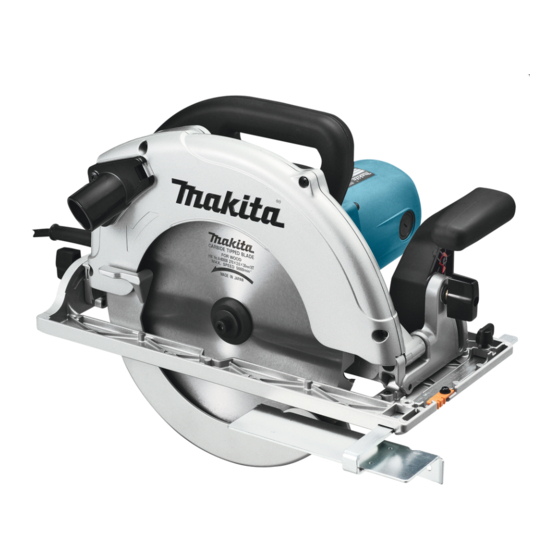

Circular Saw
5104
5104S
008460
DOUBLE INSULATION
IMPORTANT: Read Before Using.
1

Advertisement

Table of Contents
loading

Related Manuals for Makita 5104S

Summary of Contents for Makita 5104S

  • Page 1 INSTRUCTION MANUAL Circular Saw 5104 5104S 008460 DOUBLE INSULATION IMPORTANT: Read Before Using.

  • Page 2: Specifications

    With with another. appropriate Makita genuine saw blades, other materials The declared vibration emission value may also be • can also be sawed.

  • Page 3: General Power Tool Safety Warnings

    Power tool plugs must match the outlet. Never Makita Corporation responsible modify the plug in any way. Do not use any manufacturer declare that the following Makita adapter plugs with earthed (grounded) power machine(s): tools. Unmodified plugs and matching outlets will Designation of Machine: reduce risk of electric shock.

  • Page 4: Circular Saw Safety Warnings

    15. Do not overreach. Keep proper footing and 27. Keep handles dry, clean and free from oil and balance at all times. This enables better control grease. GEB013-6 of the power tool in unexpected situations. 16. Dress properly. Do not wear loose clothing or CIRCULAR SAW SAFETY jewellery.
  • Page 5 Kickback causes and related warnings kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator; when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;...
  • Page 6 Additional safety warnings 23. Use extra caution when cutting damp wood, pressure treated lumber, or wood containing knots. Maintain smooth advancement of tool without decrease in blade speed to avoid overheating the blade tips. 24. Do not attempt to remove cut material when blade is moving.

  • Page 7: Functional Description

    FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and • unplugged before adjusting or checking function on the tool. Adjusting depth of cut 1. Lever 2. Scale 3. Depth guide 000029 29. Some material contains chemicals which may be toxic.

  • Page 8: Switch Action

    Be sure the blade is installed with teeth pointing up 2. Lock-off button • at the front of the tool. Use only the Makita wrench to install or remove the • blade. To remove the blade, press the shaft lock so that the blade cannot revolve and use the hex wrench to loosen the hex bolt counterclockwise.

  • Page 9: Maintenance

    Joint assembly 1. Base (for connecting a vacuum cleaner) 2. Rear handle 3. Front handle 1. Vacuum cleaner 008468 Hold the tool firmly. The tool is provided with both a front grip and rear handle. Use both to best grasp the tool. If 008609 both hands are holding saw, they cannot be cut by the When you wish to perform clean cutting operation,...

  • Page 10: Replacing Carbon Brushes

    Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Steel & Carbide-tipped saw blades • General purpose blade for fast and smooth rip, Combination crosscuts and miters.
  • Page 12 Makita Corporation Anjo, Aichi, Japan www.makita.com 884774F225...
