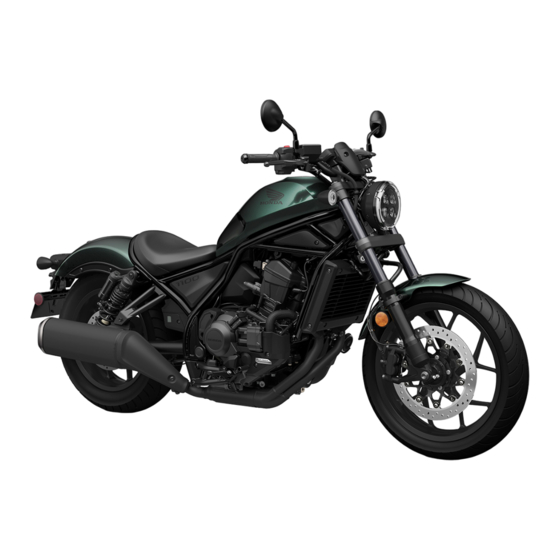

Honda REBEL 1100 2023 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OW N E R'S
M A N UA L
2023 REBEL 1100

Advertisement

Table of Contents
loading

Related Manuals for Honda REBEL 1100 2023

Summary of Contents for Honda REBEL 1100 2023

  • Page 1 OW N E R’S M A N UA L 2023 REBEL 1100...
  • Page 2 This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.
  • Page 3 Welcome Congratulations on your purchase of a new When service is required, remember that Honda vehicle. Your selection of a Honda your Honda dealer knows your vehicle best. makes you part of a worldwide family of If you have the required mechanical “know- satisfied customers who appreciate Honda's how”...
  • Page 4 A Few Words About Safety DANGER Your safety, and the safety of others, is very important. Operating this vehicle safely is an You WILL be KILLED or SERIOUSLY important responsibility. HURT if you don’t follow instructions. To help you make informed decisions about WARNING safety, we have provided operating procedures and other information on safety...

  • Page 5: Table Of Contents

    Contents Vehicle Safety P. 2 Operation Guide P. 22 Maintenance P. 83 Troubleshooting P. 127 Information P. 140 Specifications P. 167...

  • Page 6: Vehicle Safety

    Vehicle Safety This section contains important information for safe riding of your vehicle. Please read this section carefully. Safety Guidelines ..........P. 3 Safety Labels............P. 8 Safety Precautions..........P. 10 Riding Precautions ..........P. 12 Accessories & Modifications......P. 17 Loading ..............

  • Page 7: Safety Guidelines

    Safety Guidelines Safety Guidelines Before Riding USA model (Model not equipped with Optional Follow these guidelines to enhance your safety: Passenger Seat Kit) Perform all routine and regular inspections Make sure that you are physically fit, mentally ● specified in this manual. focused, and free of alcohol and drugs.
  • Page 8 Safety Guidelines Take Time to Learn & Practice Ride Defensively Even if you have ridden other vehicles, practice Always pay attention to other vehicles around riding in a safe area to become familiar with you, and do not assume that other drivers see how this vehicle works and handles, and to you.
  • Page 9 Safety Guidelines Never Carry a passenger Keep Your Honda in Safe Condition It's important to keep your vehicle properly USA model (Model not equipped with Optional Passenger Seat Kit) maintained and in safe riding condition. There are no handholds, seat, or footrests to Inspect your vehicle before every ride and carry a passenger.
  • Page 10 Safety Guidelines If you decide to continue riding, first turn the Emergency Shut-down Procedure for ignition switch to the OFF position, and evaluate Vehicles Equipped with Dual Clutch the condition of your vehicle. Inspect for fluid Transmission leaks, check the tightness of critical nuts and CMX1100D/D2 bolts, and check the handlebar, control levers, Unlike standard motorcycles, or its manual...
  • Page 11 Safety Guidelines WARNING Carbon Monoxide Hazard Exhaust contains poisonous carbon monoxide, a Running the engine of your vehicle colorless, odorless gas. Breathing carbon while in an enclosed or even partially monoxide can cause loss of consciousness and enclosed area can cause a rapid build- may lead to death.

  • Page 12: Safety Labels

    Safety Labels Safety Labels serious injury. Read these labels carefully and don't remove them. Safety and information labels on your vehicle If a label comes off or becomes hard to read, provide important safety information and may contact your dealer for a replacement. warn you of potential hazards that could cause USA model (Model not equipped with Optional Passenger Seat Kit) shown...
  • Page 13 Safety Labels USA model (Model not equipped with Optional Passenger Seat Kit) shown CMX1100A/D CMX1100A2/D2...

  • Page 14: Safety Precautions

    Safety Precautions Safety Precautions Protective Apparel USA model (Model not equipped with Optional Ride cautiously and keep your hands on the ● Passenger Seat Kit) handlebar and feet on the footpegs. Make sure that you are wearing an approved helmet, eye protection, and high-visibility Canada model and USA model equipped with ●...
  • Page 15 Safety Precautions WARNING Helmet Should be safety-standard certified, high- Not wearing a helmet increases the visibility, and the correct size for your head. chance of serious injury or death in a Must fit comfortably but securely, with the ● crash. chin strap fastened Face shield with unobstructed field of vision ●...

  • Page 16: Riding Precautions

    Riding Precautions Riding Precautions Gloves Full-finger leather gloves with high abrasion resistance Break-in Period Boots or Riding Shoes During the first 300 miles (500 km) of running, follow these guidelines to ensure your vehicle's Sturdy boots with non-slip soles and ankle future reliability and performance.
  • Page 17 Riding Precautions Exercise caution on low traction surfaces. Anti-lock Brake System (ABS) ● The tires slip more easily on such This model is equipped with an Anti-lock Brake surfaces and braking distances are System (ABS) designed to help prevent the longer.
  • Page 18 Riding Precautions Engine Braking Parking Engine braking helps slow your vehicle down Park on a firm, level surface. ● when you release the throttle. For further If you must park on a slight incline or loose ● slowing action, downshift to a lower gear. Use surface, park so that the vehicle cannot engine braking with intermittent use of the move or fall over.
  • Page 19 Riding Precautions Parking with the Side Stand Refueling and Fuel Guidelines Stop the engine. Follow these guidelines to protect the engine, Push the side stand down. fuel system and catalytic converter: Slowly lean the vehicle to the left until its Use only unleaded gasoline.
  • Page 20 Torque Control may not compensate for rough Honda Selectable Torque Control road conditions or rapid throttle operation. When the Honda Selectable Torque Control Always consider road and weather conditions, detects rear wheel spin during acceleration, the as well as your skills and condition, when system will limit the amount of torque applied applying throttle.

  • Page 21: Accessories & Modifications

    We strongly advise that you do not add any seriously hurt or killed. accessories that were not specifically designed or approved for your vehicle by Honda or make Follow all instructions in this owner's modifications to your vehicle from its original manual regarding accessories and design.

  • Page 22: Loading

    Loading Loading WARNING USA model (Model not equipped with USA model (Model not equipped with ● Optional Passenger Seat Kit) Optional Passenger Seat Kit) Overloading, improper loading, or Never carry a passenger. Your vehicle was carrying a passenger can cause a crash not designed to carry a passenger.
  • Page 23 (subject to applicable weight ratings) to and footpegs can result in serious injury also carry a passenger with the purchase and installation of the optional Honda Accessory or death to you and/or the passenger. Passenger Seat Kit, or equivalent parts specifically designed for this vehicle.
  • Page 24 Loading USA only The vehicle GVWR, weight ratings, and tire load capacities can be found on the vehicle. Single Seat as produced. Single Seat Optional Honda Accessory Passenger Seat Kit shown. Passenger Seat Kit...
  • Page 25 This page intentionally left blank.

  • Page 26: Operation Guide

    Parts Location Canada model and USA model equipped with Optional Passenger Seat Kit CMX1100A/D Battery (P.105) Seat (P.108) Front brake fluid reservoir (P.114) Front suspension spring preload adjuster (P.125) Front brake lever (P.124) Throttle grip (P.123) Steering lock (P.53) Side cover (P.109) Main fuse (P.139)
  • Page 27 CMX1100A/A2 Clutch lever (P.120) Fuel fill cap (P.77) Ignition switch (P.49) Tool (P.80) Document bag (P.80) Helmet holders (P.81) Fuse box (P.138) Coolant reserve tank (P.112) Drive chain (P.119) CMX1100A/A2 Engine oil fill cap (P.110) Shift lever Side stand (P.118) (P.65) Engine oil dipstick (P.110)
  • Page 28 Parts Location (Continued) Canada model and USA model equipped with Optional Passenger Seat Kit CMX1100A2/D2 Battery (P.105) Seat (P.108) Front brake fluid reservoir (P.114) Front suspension spring preload adjuster (P.125) Front brake lever (P.124) Throttle grip (P.123) Steering lock (P.53) Side cover (P.109) Main fuse...
  • Page 29 CMX1100D/D2 Parking brake lever (P.116) Fuel fill cap (P.77) Ignition switch (P.49) Fuse box (P.138) Tool (P.80) Document bag (P.80) Helmet holders (P.81) CMX1100A2/D2 Saddle bag (P.82) Drive chain (P.119) Coolant reserve tank (P.112) Engine oil fill cap (P.110) Side stand (P.118) Engine oil dipstick (P.110)
  • Page 30 Instruments Clock (12-hour or 24-hour display) To set the clock: (P.38) Tachometer NOTICE Do not operate the engine in Speedometer the tachometer red zone. Excessive engine speed can adversely affect engine life. Riding mode display Tachometer red zone (P.55) (excessive engine rpm range) Cursor INFO 3 display Select the display...
  • Page 31 Gear position indicator CMX1100A/A2 The gear position is shown in the gear position indicator. “-” appears when the transmission is not shifted properly. CMX1100D/D2 The gear position is shown in the gear position indicator when the MT MODE is selected. The indicator may flash if: The front wheel leaves the ground.
  • Page 32 Instruments (Continued) Select the display Press the button to move the cursor and select a display. MODE Riding mode display INFO 1 display INFO 2 display Cursor Cursor Cursor Press the button MODE...
  • Page 33 INFO 1 display Changing the INFO 1 display You can select the following: Select the INFO 1 display. (P.28) Odometer [TOTAL] Press the (up) or the ● (down) button until the desired indication is Current fuel mileage [CONS.] ● displayed. Elapsed time [ELAPSED] ●...
  • Page 34 Instruments (Continued) Odometer [TOTAL] Current fuel mileage [CONS.] Total distance ridden. Displays the current instant fuel mileage. When “------” is displayed, go to your dealer Display range: 0.0 to 300.0 mpg (or L/100km for service. or km/L) When your speed is less than 3 mph (5 ●...
  • Page 35 Elapsed time [ELAPSED] Available Driving Distance [RANGE] Displays operating time since the engine was Displays the estimated distance you can started. travel on the remaining fuel. Display range: 00:00 to 99:59 (hours:minutes) Display range: 999 to 3 miles (999 to 5 km) The elapsed time returns to 00:00 when If the estimated distance exceeds 999 ●...
  • Page 36 Instruments (Continued) INFO 2 display Changing the INFO 2 display You can select the following: Select the INFO 2 display. (P.28) Trip A [TRIP A] Press the (up) or the (down) ● button until the desired indication is Average fuel mileage A [AVG.CONS. A] ●...
  • Page 37 Tripmeter A/B [TRIP A/B] Average speed [AVG.SPD.] Distance ridden since tripmeter was reset. Displays the average speed since the average When “-----.-” is displayed, go to your dealer speed was reset. for service. The average speed will be calculated based To reset the tripmeter: on the value displayed on the tripmeter (A or (P.36)
  • Page 38 Instruments (Continued) When “---.-” is displayed except for the Average fuel mileage [AVG.CONS.] above-mentioned cases, go to your dealer Displays the average fuel mileage since the for service. average fuel mileage was reset. To reset the average fuel mileage: The average fuel mileage will be calculated based on the value displayed on the (P.36) tripmeter (A or B) selected.
  • Page 39 INFO 3 display Air temperature gauge When using cruise control, the cruise control Shows the ambient temperature. set speed is displayed. Display range: 14 ºF to 122 ºF or -10 ºC to When cruise control is not in use, the air 50 ºC temperature gauge is displayed.
  • Page 40 Instruments (Continued) To reset the tripmeter A/B, average fuel mileage A/B, and average speed A/B To reset the tripmeter A, average fuel mileage A, and average speed A together, press and hold the button while the tripmeter A, average fuel mileage A, or average speed A is MODE displayed.
  • Page 41 To reset the tripmeter B, average fuel mileage B, and average speed B together, press and hold the button while the tripmeter B, average fuel mileage B, or average speed B is MODE displayed. Average fuel mileage B Average speed B Tripmeter B When they are reset, the display quickly cycles through each indication to show each item has been reset.
  • Page 42 Instruments (Continued) Display Setting Ordinary display The following items can be changed sequentially. Setting Mode • Time format setting Time format setting • Clock setting • Backlight brightness adjustment Clock setting • TRIP A Auto reset Backlight brightness adjustment • Changing of speed and mileage unit •...
  • Page 43 To finalize selected settings, turn the ignition 1 Time format setting: switch to the OFF position or press and hold You can switch the time format between 12 button along with either the hour format or 24 hour format. MODE (up) or (down) button.
  • Page 44 Instruments (Continued) 2 Clock setting: Press the (up) button or the (down) button until the desired minute is Press the (up) button or the displayed. (down) button until the desired hour is Press and hold the (up) button displayed. or the (down) button to Press and hold the (up) button...
  • Page 45 3 Backlight brightness adjustment: You can adjust the brightness to one of five levels. Press the (up) button or the (down) button. The brightness is switched. Press the button. The backlight is MODE set, and then the display moves to the activating/deactivating of tripmeter A, average fuel mileage A, and average speed Press the...
  • Page 46 Instruments (Continued) 4 Activating/deactivating of tripmeter Press the (up) button or the (down) button to select “ON” (activate) A, average fuel mileage A, and average or “OFF” (deactivate) in the automatic reset speed A automatic reset mode: mode. You can also activate or deactivate the automatic reset mode by increasing two or more fuel gauge segments.
  • Page 47 5 Changing the speed and mileage unit: 6 Changing the temperature gauge unit: Press the (up) button or the Press the (up) button or the (down) button to select either “km/h” & (down) button to select “°C” (Centigrade) or “km” or “mph” & “mile”. “°F”...
  • Page 48 Instruments (Continued) 7 Changing the fuel mileage meter unit: Press the (up) button or the (down) button to select “L/100km” or “km/L”. Press the button. The fuel mileage MODE meter unit is set, and then the display will return to the ordinary display.
  • Page 49 Indicators If one of these indicators does not come on when it should, have your dealer check for problems. Neutral indicator Comes on when the transmission is in Neutral. High beam indicator Comes on briefly when the ignition switch is turned to the ON position.
  • Page 50 Indicators (Continued) ABS (Anti-lock Brake System) indicator Comes on when the electrical system is turned on. Goes off when your speed reaches approximately 6 mph (10 km/h). If it comes on while riding: (P.131) Low oil pressure indicator Comes on when the ignition switch is turned to the ON position.
  • Page 51 Torque Control indicator Comes on when the ignition switch is turned ● to the ON position. Goes off when your speed reaches approximately 3 mph (5 km/h) to indicate Torque Control is ready to work. Blinks when Torque Control is operating. ●...
  • Page 52 Switches Left handlebar switch Right handlebar switch (P.51) (P.52) (P.50)
  • Page 53 Ignition switch Turns electrical system on Switches the electrical system on/off. for starting/riding. Key can only be removed when in the OFF position. SEAT Steering Lock: (P.53) Open the seat. Turns engine off. Continued...
  • Page 54 Switches (Continued) Right handlebar switch Engine stop switch/ START button Should normally remain in the (Run) position. In an emergency, switch to the (Stop) position to stop the engine. A/M switch CMX1100D/D2 To shift between the AT MODE and MT MODE. (P.70) N-D switch CMX1100D/D2...
  • Page 55 Left handlebar switches Headlight dimmer switch/Passing switch Shift up switch (+) • : High beam CMX1100D/D2 : Low beam • To shift up the gear. (P.71) • : Flashes the high beam headlight. button MODE Used to operate and set the display. (P.28) (P.38) Also used to set the riding mode.
  • Page 56 Switches (Continued) Hazard switch Switchable when the ignition switch is turned to the ON position. Sel up switch Used to operate and set the display. (P.38) Also used to set the riding mode. (P.38) Sel down switch Used to operate and set the display. (P.38) Also used to set the riding mode.
  • Page 57 Steering Lock Locking Turn the handlebar all the way to the left. Lock the steering when parking to help Insert the ignition key in the steering lock. prevent theft. Push the ignition key down, and turn it 180 A U-shaped wheel lock or similar device is degrees clockwise.
  • Page 58 Parking Brake Locking CMX1100D/D2 Pull the parking brake lever back to lock the Parking brake lever and Release button rear wheel. Be sure the parking brake is applied while Be sure the release button pops out and the parking and warming up the engine. parking brake lever is not released.
  • Page 59 Riding mode You can change the riding mode. Riding mode has four modes. The riding mode consists of the following Available riding mode: SPORT, STANDARD, parameters. RAIN, and USER. The level of each parameter changes according to the selected riding mode. SPORT, STANDARD and RAIN SPORT: This mode is suitable for sports riding.
  • Page 60 Riding mode (Continued) Initial setting D level P level T level EB level High Middle High SPORT Middle Middle Middle Middle STANDARD High RAIN Middle Middle Middle Middle *1, 2 USER Notes: *1 : Level can be changed. *2 : If off is selected, the level will change to Middle the next time the ignition is turned on. *3 : CMX1100D/D2 only...
  • Page 61 P level (Engine output level) EB level (Engine brake level) P level has three setting levels. EB level has three setting levels. Available setting range: Low to High Available setting range: Low to High Middle High Middle High High has the strongest engine braking High has the most power.
  • Page 62 Riding mode (Continued) Selecting the riding mode Stop the vehicle. Select the riding mode display. (P.28) SPORT Press the (up) or (down) button with the throttle fully closed. (up) button STANDARD RAIN USER button MODE Press the (up) button (down) button Press the (down) button...
  • Page 63 Setting the riding mode You can stop setting the riding modes at any You can change the P, T, EB, and D levels of time by pressing and holding the MODE the USER riding mode. button. Stop the vehicle. Select the USER riding mode. (P.58) Press and hold the button until the P...
  • Page 64 Riding mode (Continued) Press and hold the button MODE Press the button MODE Press the (up) button Press the (down) button Press and hold the (down) button * D level is CMX1100D/D2 only...
  • Page 65 Starting the Engine CMX1100A/A2 NOTICE Start your engine using the following • If the engine does not start within 5 seconds, procedure, regardless of whether the engine turn the ignition switch to the OFF position and wait 10 seconds before trying to start is cold or warm.
  • Page 66 Starting the Engine (Continued) If you cannot start the engine: If the engine does not start: With the throttle slightly open (about 1/8 in [3 Open the throttle fully and press the START mm], without freeplay), press the start button. button for 5 seconds.
  • Page 67 CMX1100D/D2 NOTICE Start your engine using the following • If the engine does not start within 5 seconds, procedure, regardless of whether the engine turn the ignition switch to the OFF position and wait 10 seconds before trying to start is cold or warm.
  • Page 68 Starting the Engine (Continued) When you stop the engine To stop the engine, shift the transmission to Neutral ( indicator comes on). If you turn the ignition switch to the OFF position when the vehicle is in gear, the engine will shut off with the clutch disengaged.
  • Page 69 Shifting Gears Recommended Shift Points CMX1100A/A2 Your vehicle transmission has 6 forward Shifting Up gears in a one-down, five-up shift pattern. From 1st to 2nd 12 mph (20 km/h) From 2nd to 3rd 19 mph (30 km/h) From 3rd to 4th 25 mph (40 km/h) From 4th to 5th 31 mph (50 km/h)
  • Page 70 Shifting Gears (Continued) Recommended Shift Points CMX1100D/D2 Your vehicle is equipped with an Shifting Up automatically controlled 6-speed From 1st to 2nd 12 mph (20 km/h) transmission. It can be shifted automatically From 2nd to 3rd 19 mph (30 km/h) (by AT MODE) or manually (by MT MODE).
  • Page 71 Dual Clutch Transmission The Dual Clutch Transmission system runs a self check immediately after starting the CMX1100D/D2 In order to respond to rider demands in a engine. broad range of situations, the transmission is “ ” appears in the gear position indicator equipped with three operating modes, AT window for a few seconds, then goes out.
  • Page 72 Shifting Gears (Continued) Neutral (N): Neutral is selected When you can change between N and D automatically when you turn the ignition Vehicle is stopped and the engine is idling. Side stand is raised. switch to the ON position. Throttle is completely closed. It is not If neutral is not selected when you turn possible to change from Neutral to D mode the ignition switch to the ON position.
  • Page 73 You can change the D level when you need D mode (AT): This is the standard mode more power in AT MODE, such as when when AT MODE is selected. Select D mode overtaking, climbing hills, or pulling away. for regular operation and efficient fuel Higher engine RPM can be used by economy.
  • Page 74 Shifting Gears (Continued) Changing between Neutral and AT A/M switch MODE/MT MODE Changing from Neutral (N) to AT MODE Press the on the N-D switch (a). N-D switch The D indicator comes on (b), “1” is shown in the gear position indicator and first gear is selected.
  • Page 75 Riding in MT MODE Gear shift operation Shift up and down with the shift up switch (+) Shifting Up: and shift down switch (−). Press the shift up switch (+) (g). The selected gear is shown on the gear Shifting Down: position indicator.
  • Page 76 Cruise Control The cruise control system allows you to Cruise control is intended for use only on maintain a steady speed within a specified straight, uncongested highways. Do not use range. cruise control on city streets, winding roads, The available speed setting range and during bad weather, or at any other time operating gears are listed below: when you need total control of the throttle.
  • Page 77 To Set Cruise Control INFO 3 display Make sure the travelling speed and operating gear are conformed to the requirements of the system. Any speed other than the available range will not be memorized. Press the cruise control main switch (The Cruise control Cruise control set indicator...
  • Page 78 Cruise Control (Continued) Each quick tap (brief push and release) on To Change the Set Speed either side will change your speed by 1 mph To Fine Tune the Set Speed or 1 km/h (depending on the mileage meter To increase the set speed: tap the cruise set unit).
  • Page 79 To decrease speed: push and hold the To Manually Increase Vehicle Speed ● cruise control lever to side. The Use the throttle in the normal manner to accelerate. system will automatically slow your To return to the set speed, close the throttle vehicle.
  • Page 80 Cruise Control (Continued) To Temporarily Disengage the System To resume cruise control: If you are still traveling over 30 mph Perform one of the following operations to ● disengage the system temporarily ( (50 km/h), push and release the cruise Cruise control set indicator temporarily goes control lever to side.
  • Page 81 Refueling Opening the Fuel Fill Cap Lock cover Open the lock cover, insert the ignition key, Ignition key Lower edge of and turn it clockwise to open the fuel fill cap. filler neck Closing the Fuel Fill Cap After refueling, push the fuel fill cap closed until it locks.
  • Page 82 Use USB devices at your own risk. To prevent misplacing the cap, put the In no event shall Honda be liable for any USB socket cover through the ring part damage to your USB device when in use. of the cap, and then connect a certified USB cable to the USB socket.
  • Page 83 To prevent the battery from becoming weak (or dead), keep the engine running while drawing current from the socket. To prevent entry of foreign matter into the socket, be sure to close the cover. Carefully secure all connected devices, as vibration may cause damage to them or they could shift unexpectedly.
  • Page 84 Storage Equipment Tool/Document Bag The tool kit and document bag are located under the seat by the rubber strap. Document bag Rubber strap Tool kit Removing the Seat (P.108)
  • Page 85 Helmet Holder Removing the Seat (P.108) The helmet holders are located on the WARNING underside of the seat. Riding with a helmet attached to the Use the helmet holder only when parked. holder can interfere with your ability to Helmet holder safely operate the vehicle and could lead to a crash in which you can be Underside of...
  • Page 86 Storage Equipment (Continued) Opening the Saddle bag Saddle Bag The right and left saddle bags can be opened CMX1100A2/D2 in the same manner. Never exceed the maximum weight capacity. Insert the ignition key, and turn it clockwise. Maximum weight: 11.0 lb (5.0 kg) Push the lever.

  • Page 87: Maintenance

    Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully before attempting any maintenance. Refer to “Specifications” for service data. An optional larger tool kit may be available. Check with your Honda dealer's parts department. Importance of Maintenance ......P. 84 Drive Chain ............P. 119 Maintenance Schedule........

  • Page 88: Importance Of Maintenance

    Importance of Maintenance For information about the exhaust emission and Importance of Maintenance noise emission requirements of the U.S. Keeping your vehicle well-maintained is Environmental Protection Agency (EPA), the absolutely essential to your safety and to California Air Resources Board (CARB), and the protect your investment, obtain maximum Environment and Climate Change Canada performance, avoid breakdowns, and reduce air...
  • Page 89 Importance of Maintenance Follow these guidelines when performing Maintenance Safety maintenance. Always read the maintenance instructions Stop the engine and remove the key. ● before you begin each task and make sure that Place your vehicle on a firm, level surface ●...

  • Page 90: Maintenance Schedule

    Maintenance work should be performed in owner. accordance with Honda's standards and specifications by properly trained and equipped technicians. Your dealer meets all of these requirements. All scheduled maintenance is considered a normal owner operating cost and will be charged to you by your dealer.
  • Page 91 Replace mechanically skilled. Lubricate Procedures are provided in an official Honda Service Clean Manual (2 P. 159). : Technical. In the interest of safety, have your vehicle serviced by your dealer.
  • Page 92 Maintenance Schedule Frequency Items × 1,000 mi Regular Refer to Replace page × 1,000 km 12.8 19.2 25.6 32.0 38.4 Drive Chain Every 600 mi (1,000 km): Brake Fluid 2 Years Brake Pads Wear Brake System Brake Light Switch Brake Lock Operation Headlight Aim –...

  • Page 93: Maintenance Record

    Maintenance Record Distance Odometer Date Performed By: Notes 600 miles (1,000 km) 4,000 miles (6,400 km) 8,000 miles (12,800 km) 12,000 miles (19,200 km) 16,000 miles (25,600 km) 20,000 miles (32,000 km) 24,000 miles (38,400 km) 28,000 miles (44,800 km) 32,000 miles (51,200 km) 36,000 miles (57,600 km) 40,000 miles (64,000 km)

  • Page 94: Maintenance Fundamentals

    Maintenance Fundamentals Pre-ride Inspection USA model (Model not equipped with Optional Passenger Seat Kit) To ensure safety, it is your responsibility to Check the following items if you are carrying perform a pre-ride inspection and make sure cargo: that any problem you find is corrected. A pre- Canada model and USA model equipped with Optional Passenger Seat Kit ride inspection is a must, not only for safety, but...
  • Page 95 Maintenance Fundamentals Check the following items at regular intervals: Oil level is between the upper and lower ● level marks P. 110 Brake fluid level is ● Front: above the LOWER level mark P. 114 Rear: between the UPPER and LOWER level marks P.
  • Page 96 Maintenance Fundamentals Periodic Checks You should also perform other periodic maintenance checks at least once a month regardless of how often you ride, or more often if you ride frequently. Also, check the odometer reading against the Maintenance Schedule and perform all maintenance that is due.
  • Page 97 Maintenance Fundamentals WARNING Replacing Parts Always use Honda Genuine Parts or their Installing non-Honda parts may make equivalents to ensure reliability and safety. your vehicle unsafe and cause a crash in When ordering colored components, specify which you can be seriously hurt or the model name, color, and code mentioned on killed.
  • Page 98 Maintenance Fundamentals WARNING NOTICE An improperly disposed of battery can be The battery gives off explosive harmful to the environment and human health. hydrogen gas during normal operation. Always confirm local regulations for proper battery disposal instruction. A spark or flame can cause the battery What to do in an emergency to explode with enough force to kill or If any of the following occur, immediately see...
  • Page 99 30 days using a charger designed specifically for If the terminals are heavily corroded, clean your Honda, which can be purchased from your and polish the terminals with a wire brush or dealer. Read the information that came with sandpaper.
  • Page 100 Bump starting is also not ratings, see “Specifications.” P. 170 recommended. Blown fuse NOTICE Installing non-Honda electrical accessories can overload the electrical system, discharging the battery and possibly damaging the system. NOTICE Fuses Replacing a fuse with one that has a higher...
  • Page 101 “Specifications.” P. 169 oils, excluding oils marked as “Energy Conserving” or “Resource Conserving” on the circular API If you use non-Honda engine oil, check the service symbol. label to make sure that the oil satisfies all of the following standards:...
  • Page 102 Wipe up spills immediately and wash thoroughly. chain inspected by your dealer. Recommended brake fluid: Also inspect the drive sprocket and driven Honda DOT 4 Brake Fluid or equivalent sprocket. If either has worn or damaged teeth, WARNING have the sprocket replaced by your dealer.
  • Page 103 O-ring chains, or neutral spray onto your clothes and the vehicle. detergent. Use a soft brush if the chain is dirty. After cleaning, wipe dry and lubricate with the recommended lubricant. Recommended lubricant: Pro Honda HP Chain Lube or equivalent...
  • Page 104 Maintenance Fundamentals Recommended Coolant Crankcase Breather Pro Honda HP Coolant is a pre-mixed solution Service more frequently when riding in rain, at of antifreeze and distilled water. full throttle, or after the vehicle is washed or overturned. Service if the deposit level can be...
  • Page 105 Maintenance Fundamentals Inspecting for Damage Tires (Inspecting/Replacing) Checking the Air Pressure Inspect the tires for Visually inspect your tires and use an air cuts, slits, or cracks that pressure gauge to measure the air pressure at expose fabric or cords, least once a month or any time you think the or nails or other tires look low.
  • Page 106 Maintenance Fundamentals WARNING Inspecting Tread Depth Inspect the tread wear indicators. If they Riding on tires that are excessively worn become visible, replace the tires immediately. or improperly inflated can cause a crash For safe riding, you should replace the tires in which you can be seriously hurt or when the minimum tread depth is reached.
  • Page 107 Always use the size and type of tires speed rating, and load range. recommended in this owner's manual. Have the wheel balanced with Honda ● Genuine balance weights or equivalent after the tire is installed.
  • Page 108 Maintenance Fundamentals Tire Identification Number (TIN) Tire Service Life The tire identification number (TIN) is a group The service life of your tires is dependent on of numbers and letters located on the sidewall many factors, including, but not limited to, of the tire.

  • Page 109: Removing & Installing Body Components

    Removing & Installing Body Components Battery Screws Utility box Removal Make sure the ignition switch is in the OFF position. Remove the left and right side covers. P. 109 Remove the utility box by removing the screws. Utility box Continued...
  • Page 110 Removing & Installing Body Components Battery Disconnect the negative - terminal from Disconnect the positive + terminal from the battery. the battery. Remove the battery, taking care not to drop the terminal nuts. Negative Terminal terminal bolts Temporarily tighten the terminal bolt to the terminal nut when removing the battery.

  • Page 111: Clip

    Removing & Installing Body Components Clip Clip Installation Insert the clip into the hole. Removal Push the pin in. Remove the pin by a Phillips screwdriver. Pull the clip out of the hole.

  • Page 112: Seat

    Removing & Installing Body Components Seat Seat Removal Push the ignition key down, and turn the Prongs Seat ignition switch to the SEAT position. Pull the seat up and forward. Installation Put the prongs under the seat stays. Push the front of the seat backward and lower until it locks.

  • Page 113: Side Cover

    Removing & Installing Body Components Side Cover Side Cover The right and left side covers can be removed in the same way. Clip Removal Grommets Remove the seat. P. 108 Remove the clip. P. 107 Remove the prongs from the grommets. Remove the side cover.

  • Page 114: Engine Oil

    Engine Oil Checking the Engine Oil Oil fill cap Upper If the engine is cold, idle the engine for 3 level to 5 minutes. Turn the ignition switch to the OFF position and wait for 2 to 3 minutes. Place your vehicle in an upright position on a firm, level surface.
  • Page 115 Engine Oil Adding Engine Oil Adding Engine Oil NOTICE Overfilling with oil or operating with insufficient oil can cause damage to your engine. Do not mix If the engine oil is below or near the lower different brands and grades of oil. They may level mark, add the recommended engine oil.

  • Page 116: Coolant

    Coolant Checking the Coolant Check the coolant level in the reserve tank Reserve tank while the engine is cold. Place your vehicle on a firm, level surface. UPPER level Hold your vehicle in an upright position. Check that the coolant level is between LOWER level the UPPER level and LOWER level marks on the reserve tank.
  • Page 117 Coolant Adding Coolant Remove the reserve tank cap and add Reserve tank cap fluid while monitoring the coolant level. Do not overfill above the UPPER level mark. Make sure no foreign objects enter the reserve tank opening. Securely reinstall the reserve tank cap. WARNING Removing the radiator cap while the engine is hot can cause the coolant to...

  • Page 118: Brakes

    Brakes Checking Brake Fluid If the brake fluid level in either reservoir is below the LOWER level mark or the brake lever and pedal freeplay becomes excessive, Place your vehicle in an upright position inspect the brake pads for wear. on a firm, level surface.
  • Page 119 Brakes Inspecting the Brake Pads Inspecting the Brake Pads Inspect the brake pads from below Front the brake caliper. Inspect the brake pads from the rear Check the condition of the brake pad wear Rear right of the vehicle. indicators. If necessary, have the pads replaced by your The pads need to be replaced if a Front...
  • Page 120 Brakes Checking the Parking Brake Checking the Parking Brake Place your vehicle on a firm, level surface. Stop the engine and push your vehicle while the parking brake is set to check the efficacy CMX1100D/D2 of the parking brake. If the efficacy of the parking brake becomes weak, have the brake adjusted by your dealer.
  • Page 121 Brakes Adjusting the Brake Light Switch Adjusting the Brake Light Switch Check the operation of the brake light switch. Hold the brake light switch and turn the adjusting nut in the direction A if the switch operates too late, or turn the nut in the direction B if the switch operates too soon.

  • Page 122: Side Stand

    Side Stand Checking the Side Stand CMX1100A/A2 Sit on the vehicle, shift the transmission to Neutral, and raise the side stand. CMX1100D/D2 Sit on the vehicle and raise the side stand. CMX1100A/A2 Start the engine, pull the clutch lever in, and shift the transmission into gear.

  • Page 123: Drive Chain

    Drive Chain Inspecting the Drive Chain Slack Drive chain Check the drive chain slack at several points along the chain. If the slack is not constant at all points, some links may be kinked and binding. Have the chain inspected by your dealer. Shift the transmission to Neutral.

  • Page 124: Clutch

    Clutch Checking the Clutch Check the clutch cable for kinks or signs of wear. If necessary, have it replaced by your dealer. CMX1100A/A2 Lubricate the clutch cable with a Checking the Clutch Lever Freeplay commercially available cable lubricant to prevent premature wear and corrosion. Check the clutch lever freeplay.
  • Page 125 Clutch Adjusting the Clutch Lever Freeplay Adjusting the Clutch Lever Freeplay Upper lock nut CMX1100A/A2 – Upper Adjustment Attempt adjustment with the upper clutch cable adjuster first. Upper clutch cable adjuster Loosen the upper lock nut. Turn the upper clutch cable adjuster until Lower Adjustment the freeplay is 3/8 - 13/16 in (10 - 20 mm).
  • Page 126 Clutch Adjusting the Clutch Lever Freeplay Loosen the upper lock nut and turn the Lower adjusting nut upper clutch cable adjuster all the way in to provide maximum freeplay. Tighten the upper lock nut. Loosen the lower lock nut. Turn the lower adjusting nut until the clutch lever freeplay is 3/8 - 13/16 in (10 - –...

  • Page 127: Throttle

    Throttle Checking the Throttle With the engine off, check that the throttle rotates smoothly from fully closed to fully open. If the throttle does not move smoothly or close automatically, have the vehicle inspected by your dealer. Throttle...

  • Page 128: Other Adjustments

    Other Adjustments Adjusting the Brake Lever Adjuster You can adjust the distance between the tip of the brake lever and handle grip. Adjustment method Index mark Turn the adjuster until the numbers align with the index mark while pushing the lever forward in the desired position.

  • Page 129: Adjusting The Front Suspension

    Other Adjustments Adjusting the Front Suspension Adjusting the Front Suspension Adjuster top surface Spring Preload You can adjust the spring preload by the Adjuster adjuster to suit the load or the road surface. Turn clockwise to increase spring preload (hard), or turn counterclockwise to decrease spring preload (soft).

  • Page 130: Adjusting The Rear Suspension

    Other Adjustments Adjusting the Rear Suspension Adjusting the Rear Suspension Adjuster Spring Preload Extension bar You can adjust the spring preload by the adjuster to suit the load or the road surface. Pin spanner Turn the adjuster using the provided pin spanner.

  • Page 131: Troubleshooting

    Troubleshooting Engine Will Not Start........P. 128 Electrical Trouble..........P. 137 Overheating (High coolant temperature Battery Goes Dead..........P. 137 indicator is on) ..........P. 129 Burned-out Light Bulb ........P. 137 Warning Indicators On or Flashing..... P. 130 Blown Fuse............P. 138 Low Oil Pressure Indicator ......

  • Page 132: Engine Will Not Start

    Engine Will Not Start Starter Motor Operates But Starter Motor Does Not Engine Does Not Start Operate Check the following items: Check the following items: Check the correct engine starting Check the correct engine starting ● ● sequence. P. 61 sequence.

  • Page 133: Overheating (High Coolant Temperature Indicator Is On)

    Overheating (High coolant temperature indicator is on) The engine is overheating when the following If the fan is not operating: occurs: Suspect a fault. Do not start the engine. High coolant temperature indicator Transport your vehicle to your dealer. ● comes on.

  • Page 134: Warning Indicators On Or Flashing

    Warning Indicators On or Flashing Low Oil Pressure Indicator If the engine oil level goes down rapidly, your vehicle may have a leak or another serious problem. Have your vehicle inspected by If the low oil pressure indicator comes on, your dealer.

  • Page 135: Abs (Anti-Lock Brake System) Indicator

    Warning Indicators On or Flashing ABS (Anti-lock Brake System) Indicator ABS (Anti-lock Brake System) If the ABS indicator stays on, your brakes will continue to work as a conventional system, Indicator but without the anti-locking function. If the indicator operates in one of the The ABS indicator may flash if you turn the following ways, you may have a serious rear wheel while the rear wheel is lifted off...

  • Page 136: Torque Control Indicator

    Warning Indicators On or Flashing Torque Control Indicator Torque Control Indicator Even when the Torque Control indicator is on, your vehicle will have normal riding ability without Torque Control function. If the indicator operates in one of the When the indicator comes on while the following ways, you may have a serious Torque Control is in operation, you will problem with the Torque Control.

  • Page 137: If The "-" Indicator Is Blinking In The Gear Position Window While Riding

    If the “–” Indicator is Blinking in the Gear Position Window While Riding CMX1100D/D2 If you still cannot start the engine: If the “–” indicator is blinking while riding, you Start the engine while applying the brake may have a serious problem with the Dual lever or pressing the brake pedal.

  • Page 138: Other Warning Indications

    Other Warning Indications Fuel Gauge Failure Indication If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustrations. If this occurs, see your dealer as soon as possible.
  • Page 139 Other Warning Indications Fuel Gauge Failure Indication...

  • Page 140: Tire Puncture

    Tire Puncture WARNING Repairing a puncture or removing a wheel requires special tools and technical expertise. Riding your vehicle with a temporary We recommend you have this type of service tire repair can be risky. If the temporary performed by your dealer. repair fails, you can crash and be After an emergency repair, always have the seriously injured or killed.

  • Page 141: Electrical Trouble

    Electrical Trouble Battery Goes Dead Burned-out Light Bulb Charge the battery using a motorcycle All light bulbs on the vehicle are LEDs. If battery charger. there is an LED which is not turned on, see Remove the battery from the vehicle before your dealer for servicing.

  • Page 142: Blown Fuse

    Electrical Trouble Blown Fuse Blown Fuse Remove the left side cover. P. 109 Remove the fuse box cover. Pull the fuses out one by one with the Before handling fuses, see “Inspecting and fuse puller and check for a blown fuse. Replacing Fuses.”...
  • Page 143 Electrical Trouble Blown Fuse Main Fuse & FI Fuse Remove the utility box. P. 105 Remove the starter magnetic switch cover. Spare Remove the starter magnetic switch from fuses Starter magnetic the stay. switch cover Pull the main fuse and FI fuse out one by one with the fuse puller and check for a blown fuse.

  • Page 144: Information

    You & the Environment ......... P. 150 Vehicle Identification Number..... P. 151 Emission Control Systems ......P. 152 Catalytic Converter ......... P. 157 Oxygenated Fuels..........P. 158 Authorized Manuals ........P. 159 Warranty Coverage and Service ....P. 160 Honda Contacts ..........P. 163...

  • Page 145: Service Diagnostic Recorders

    However this data may be accessed by Honda, its authorised dealers and authorised repairers, employees, representatives and contractors only for the purpose of the technical diagnosis,...

  • Page 146: Keys

    Keys Keys Ignition key Key tag Ignition Key/Steering Lock Key This vehicle has two ignition keys and a key tag with a key number and a bar code. Store the spare key and the key tag in a safe location. To make a duplicate key, take the spare key and the key tag to your dealer or a locksmith.

  • Page 147: Instruments, Controls, & Other Features

    Instruments, Controls, & Other Features Instruments, Controls, & Odometer Other Features The display remains at 999,999 when the odometer exceeds 999,999. Ignition Switch Tripmeter Leaving the ignition switch in the ON position Each tripmeter resets to 0.0 when the trip with the engine stopped will drain the battery.
  • Page 148 Instruments, Controls, & Other Features Assist-slipper Clutch System Throttle by Wire System This model is equipped with a Throttle by Wire CMX1100A/A2 The assist-slipper clutch system helps to prevent System. the rear tire from locking up when the Do not put magnetized items or items deceleration of your vehicle produces a strong susceptible to magnetic interference near the engine braking effect.

  • Page 149: Caring For Your Vehicle

    Frequent cleaning and polishing is important to After the vehicle dries, lubricate any moving ensure the life of your Honda. A clean vehicle parts. makes it easier to spot potential problems.
  • Page 150 Caring for Your Vehicle Washing Precautions Do not direct water at the air cleaner: ● Water in the air cleaner can prevent the Follow these guidelines when washing: engine from starting. Do not use high-pressure washers: ● Do not direct water near the headlight: High-pressure water cleaners can ●...
  • Page 151 Caring for Your Vehicle Aluminum Components Exhaust Pipe and Muffler Aluminum will corrode from contact with dirt, If the exhaust pipe and muffler are painted, do mud, or road salt. Clean aluminum parts not use a commercially available abrasive regularly and follow these guidelines to avoid kitchen cleaning compound.

  • Page 152: Storing Your Vehicle

    Coat chrome pieces with rust-inhibiting oil. For more information about storage, Canada Lubricate the drive chain. P. 98 visit our website at www.honda.ca and look up ● Place your vehicle on a maintenance stand “Storage Tips” under the “Honda Warranty” in ●...

  • Page 153: Transporting Your Vehicle

    Transporting Your Vehicle Transporting Your Vehicle If your vehicle needs to be transported, it should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform and motorcycle tie-down straps. Never try to tow your vehicle with a wheel or wheels on the ground.

  • Page 154: You & The Environment

    You & the Environment You & the Environment Recycle Wastes Put oil and other toxic wastes in approved Owning and riding a vehicle can be enjoyable, containers and take them to a recycling center. but you must do your part to protect the Call your local or state office of public works or environment.

  • Page 155: Vehicle Identification Number

    Vehicle Identification Number Vehicle Identification Number The VIN and engine serial number uniquely identify your vehicle and are required in order to register your vehicle. They may also be required when ordering replacement parts. You should record these numbers and keep them in a safe place.

  • Page 156: Emission Control Systems

    Your vehicle engine emits combustion Compliance with the terms of the byproducts, including carbon monoxide (CO), Distributor's Warranties for Honda Motorcycle oxides of nitrogen (NOx), and hydrocarbons Emission Control Systems is necessary in order (HC). Gasoline evaporation also emits to maintain a valid emissions system warranty.
  • Page 157 Emission Control Systems operated and maintained according to the Canada only The Vehicle Emission Control Information label instructions provided. is located on the right side of the swingarm. Exhaust Emission Control System The exhaust emission control system includes the following components that should not need adjustment, although periodic inspection by your dealer is recommended.
  • Page 158 Emission Control Systems Secondary Air Injection System Crankcase Emissions Control System The secondary air injection system adds filtered The engine is equipped with a closed crankcase air into the exhaust gas to help improve system to prevent discharging crankcase emission control performance. emissions into the atmosphere.
  • Page 159 Emission Control Systems AMONG THOSE ACTS PRESUMED TO Noise Emission Control System CONSTITUTE TAMPERING ARE THE TAMPERING WITH THE NOISE CONTROL FOLLOWING ACTS: SYSTEM IS PROHIBITED: Removal of, or puncturing the muffler, ● U. S. federal law prohibits, and Canadian baffles, header pipes or any other provincial laws may prohibit, the following acts component which conducts exhaust gases.
  • Page 160 Emission Control Systems Problems Affecting Vehicle Exhaust Emissions Have your vehicle inspected and repaired by your dealer if you experience any of the following symptoms: Hard starting or stalling after starting ● Rough idling ● Misfiring or backfiring during acceleration ●...

  • Page 161: Catalytic Converter

    A defective catalytic converter contributes to air riding and turn off the engine. Have your pollution and can impair your engine's vehicle serviced as soon as possible. performance. A replacement unit must be an original Honda part or equivalent.

  • Page 162: Oxygenated Fuels

    Oxygenated Fuels Oxygenated Fuels If you accidentally fill your fuel tank with an oxygenated fuel containing higher percentages, Some conventional fuels blended with alcohol you may experience performance problems. To or an ether compound are available in some resolve the problem, have your dealer drain the locales to help reduce emissions to meet clean fuel tank and replace with the correct fuel.

  • Page 163: Authorized Manuals

    Authorized Manuals Authorized Manuals These Honda manuals are written for the professional technician. However, if you possess The Service Manual used by your the proper tools, observe the safety standards, authorized dealer is available from your Honda and are mechanically capable, you should find dealer or Helm, Inc.

  • Page 164: Warranty Coverage And Service

    Service workmanship of your Honda. Your warranty coverage does not apply to the normal wear Coverage and deterioration associated with use of the Your new Honda is covered by the following vehicle. warranties: Vehicle Limited Warranty ● Your warranty coverage is not voided if you Emission Control System Warranty ●...
  • Page 165 Warranty Coverage and Service authorized service provider caused damage to Statement on Warranty Coverage for another part of the vehicle otherwise covered Aftermarket and Recycled Parts under warranty before denying warranty The Magnuson-Moss Warranty Act, 15 U.S.C. s. coverage. Additionally, federal law allows a 2301 et seq., makes it illegal for motor vehicle manufacturer to void a motor vehicle warranty manufacturers to void a motor vehicle warranty...
  • Page 166 If you believe you have a problem with your dealership or their designated representative. vehicle, call the service department of your Honda dealer. Make an appointment for an inspection and diagnosis. You will be asked to authorize that inspection, and your dealer will return the results of the inspection.

  • Page 167: Honda Contacts

    ● Mailstop: 100-4W-5F Product model, year, and VIN ● Date of purchase ● Dealer name and address ● Telephone: (866) 784-1870 We will likely ask your Honda dealer to respond, or possibly acknowledge your comments Website: https://powersports.honda.com/ directly. contact-us Continued...
  • Page 168 Honda Contacts Your Honda Dealer The service department of your Honda dealer offers trained personnel to perform regular maintenance and unexpected repairs. It has the latest available service information from Honda and also handles warranty inspections and repairs. The parts department offers Honda Genuine...
  • Page 169 Highway Traffic Safety Administration 1200 New Jersey Avenue, SE., (NHTSA) in addition to notifying Washington, DC 20590. American Honda Motor Co., Inc. You can also obtain other information about motor vehicle safety from: If NHTSA receives similar complaints, it https://www.safercar.gov.
  • Page 170 (English Link:) www.tc.canada.ca/recalls remedy campaign. However, Transport (French Link:) www.tc.canada.ca/rappels Canada cannot become involved in individual problems between you, your For more information on reporting safety defects or about motor vehicle dealer, or Honda Canada Inc. safety, go to https://www.tc.gc.ca/roadsafety.

  • Page 171: Specifications

    Specifications Main Components ■ CMX1100A 50 STATE (meets Overall 487 lb (221 kg) 88.2 in (2,240 mm) California) length Canada model 492 lb (223 kg) CMX1100A/A2 33.6 in (853 mm) CMX1100D Overall width CMX1100D 32.8 in (834 mm) 50 STATE (meets CMX1100D2 33.4 in (848 mm) 509 lb (231 kg)
  • Page 172 Specifications CMX1100A2/D2 Displacement 66.1 cu-in (1,084 cm Maximum luggage Right 11.0 lb (5.0 kg) Bore x stroke 3.62 x 3.21 in (92.0 x 81.5 mm) Saddle bag weight Compression Left 11.0 lb (5.0 kg) 10.1 : 1 ratio USA model (Model not Unleaded gasoline Fuel...
  • Page 173 SAE 10W-30, JASO T 903 1.84 US qt (1.74 L) engine oil capacity standard MA, Pro Honda GN4 4-stroke oil Recommended (USA & Canada) or Honda 4-stroke oil, or Pro Honda HP Coolant coolant an equivalent motorcycle oil Recommended drive chain...
  • Page 174 Specifications RK BP525MRO Standard drive chain No. of links Drive sprocket Standard sprocket size Driven sprocket Bulbs ■ Headlight Brake light/Taillight Front turn signal/Position light Rear turn signal License plate light Fuses ■ Main fuse 30 A Other fuse 30 A, 20 A, 15 A, 10 A, 7.5 A...
  • Page 175 Information Record Engine No. Color Label & Code Owner's Name Address City/State Phone Dealer's Name Address City/State Phone Service Manager...
  • Page 176 California Proposition 65 Warning WARNING: Operating, servicing and maintaining a passenger vehicle or off-highway motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 177 31MLA620 © 2022 Honda Motor Co., Ltd. 00X31-MLA-6200 Printed in the U.S.A. All Rights Reserved...

Table of Contents
