Service Manual

SERVICE PARTS & DIAGRAMS

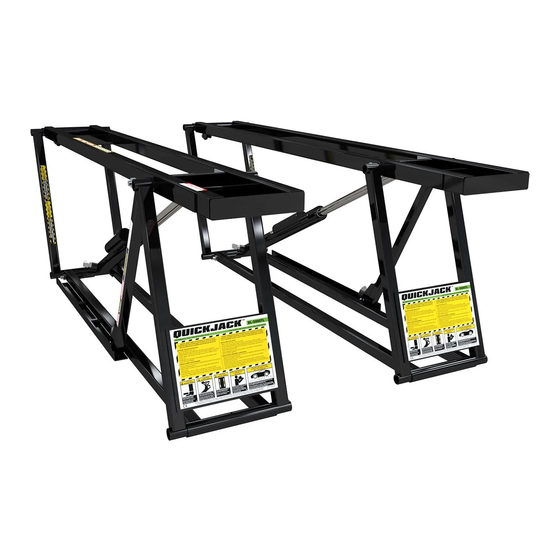

QUICKJACK

5000TL - 110V

PRODUCT SKU

5175630

DRAWING Nº

5175354

Need help?

Do you have a question about the 5000TL and is the answer not in the manual?

Questions and answers

Summary of Contents for QuickJack 5000TL

Page 1 Service Manual SERVICE PARTS & DIAGRAMS QUICKJACK 5000TL - 110V PRODUCT SKU 5175630 DRAWING Nº 5175354 CATEGORY QuickJack Version A DATE 11.01.2022 This guide is a troubleshooting reference used for maintaining and servicing your Bend Pak product. It provides comprehensive information...
Page 2 QUICKJACK HANDLE WELDMENT 5930895 5000TL FRONT BOTTOM STYROFOAM PACKAGING 5930897 5000TL REAR BOTTOM STYROFOAM PACKAGING 5930896 5000TL TOP STYROFOAM PACKAGING PACKAGING TOP BOX; 5000TL BOX 2-RIGHT, 5910008 ENGLISH-FRENCH 5940048 PLYWOOD INSERT, 1828 x 305 x 6mm 5930575 .50" PLASTIC STRAPPING...
Page 3 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601480 5000TL FRAME WELDMENT, R.H. 5502042 OFFSET CYLINDER ASSEMBLY Ø1.5 x 18.559in 5215918 QUICKJACK SAFETY BAR ASSEMBLY 5746696 DOUBLE THREADED ROD M12 x 1.75 x 227 5746670 DOUBLE THREADED ROD M12 x 1.75 x 254...
Page 4 FULL RISE 41.853in 1063.1mm 20.083in 510.1mm TOPLOCK 31.957in 811.7mm 14.232in 361.5mm LOWEST LOCK 24.678in 2.756in 1645 LEMONWOOD DR. 626.8mm 70.0mm SANTA PAULA, CA 93060 TITLE: 5000TL FRAME ASSEMBLY, R.H. SIZE DWG. NO. 5215922 FULLY LOWERED SCALE: 1:15 SHEET 2 OF 2...
Page 5 01222 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601476 QUICKJACK SAFETY ARM WELDMENT 5736887 QUICKJACK SAFETY LATCH 5505028 SPRING PIN M6 x 20 NEXT ASSEMBLY DO NOT SCALE DRAWING NAME DATE 5215919...
Page 6 BOM REVISIONS ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5620645 5000TL BOTTOM FRAME SUBWELDMENT, R.H. 5620653 5000TL TOP FRAME SUBWELDMENT 5766360 5000TL SCISSOR ARM TUBE WHERE USED 5746668 5000TL ARM HINGE AXLE...
Page 7 QUICKJACK CYLINDER SPACER ISOMETRIC VIEW 5736542 QUICKJACK CYLINDER SPACER GUSSET FOR REFERENCE ONLY 5781509 5000TL CYLINDER PLATE DO NOT SCALE 5620650 5000TL SAFETY LADDER SUBWELDMENT, R.H. 5737222 5000TL BOTTOM REAR GUSSET DO NOT SCALE DRAWING NAME DATE DRAWN 04/14/2020 WHERE USED 1645 LEMONWOOD DR.
Page 8 5746302 QUICKJACK CYLINDER SPACER 5736831 QUICKJACK WHEEL MOUNTING PLATE 5737153 5000TL RUBBER BLOCK TRAY EXTENSION 5735621 5000TL RUBBER BLOCK TRAY EXTENSION CLOSEOUT ISOMETRIC VIEW 5736542 QUICKJACK CYLINDER SPACER GUSSET FOR REFERENCE ONLY 5736886 5000TL RUBBER BLOCK TRAY DO NOT SCALE...
Page 9 PART SPECIFICATION FORM STANDARD BENDPAK Number: 5900263 MRP Description: QUICKJACK TL/TLX/ELX MANUAL, ENGLISH-FRENCH Date: 09/29/2021 ECO : 1. Engineering Specification Application: INSTALLATION MANUAL Detailed Description: Print Settings Unless otherwise specified, use these settings for printing BendPak manuals: Size: A4 (210 to 297 mm), 8.5 by 11...
Page 10 © PN 5905691 QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. www.quickjack.com Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 11 Cale de Verrouillage Lock Block Cale de Verrouillage QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. www.quickjack.com PN 5905822 Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 12 Quickjack 5000TL & TLX Product Labels CAUTION 1645 Lemonwood Dr. Santa Paula, CA USA QuickJack is a wholly-owned subsidiary of BendPak, Inc. MODEL NUMBER / NUMÉRO DE MODÈLE POSITION JACK FRAMES UNDER PARKED VEHICLE. NEVER DRIVE OVER OR ON TOP DESCRIPTION OF JACK FRAMES.
Page 13: California Proposition 65 Warning
Quickjack 5000TL & TLX Label Placement Prop_65_Label.pdf: CALIFORNIA PROPOSITION 65 Size: 1.5”W x 1.5”H WARNING WARNING! This product can expose Material: 4 Mil. Permanent White Adhesive Vinyl you to chemicals including styrene and Ink: U.V. protected CMYK 2/C Process vinyl chloride which are on the list of over 900 chemicals identiﬁed by the...
Page 14 QUICKJACK HANDLE WELDMENT 5930895 5000TL FRONT BOTTOM STYROFOAM PACKAGING 5930897 5000TL REAR BOTTOM STYROFOAM PACKAGING 5930896 5000TL TOP STYROFOAM PACKAGING PACKAGING TOP BOX; 5000TL BOX 1-LEFT, 5910007 ENGLISH-FRENCH 5940048 PLYWOOD INSERT, 1828 x 305 x 6mm 5930575 .50" PLASTIC STRAPPING...
Page 15 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601479 5000TL FRAME WELDMENT, L.H. 5502042 OFFSET CYLINDER ASSEMBLY Ø1.5 x 18.559in 5215918 QUICKJACK SAFETY BAR ASSEMBLY 5746696 DOUBLE THREADED ROD M12 x 1.75 x 227 5746670 DOUBLE THREADED ROD M12 x 1.75 x 254...
Page 16 41.853in 20.083in 1063.1mm 510.1mm TOP LOCK 31.957in 14.232in 811.7mm 361.5mm LOWEST LOCK 24.678in 2.756in 626.8mm 70.0mm 1645 LEMONWOOD DR. SANTA PAULA, CA 93060 TITLE: 5000TL FRAME ASSEMBLY, L.H. FULLY LOWERED SIZE DWG. NO. 5215920 SCALE: 1:15 SHEET 2 OF 2...
Page 17 01222 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601476 QUICKJACK SAFETY ARM WELDMENT 5736887 QUICKJACK SAFETY LATCH 5505028 SPRING PIN M6 x 20 NEXT ASSEMBLY DO NOT SCALE DRAWING NAME DATE 5215919...
Page 18 UPDATED BOM REVISIONS ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5620644 5000TL BOTTOM FRAME SUBWELDMENT, L.H. 5620653 5000TL TOP FRAME SUBWELDMENT 5766360 5000TL SCISSOR ARM TUBE WHERE USED 5746668 5000TL ARM HINGE AXLE...
Page 19 5746302 QUICKJACK CYLINDER SPACER 5736542 QUICKJACK CYLINDER SPACER GUSSET ISOMETRIC VIEW 5781509 5000TL CYLINDER PLATE FOR REFERENCE ONLY 5620649 5000TL SAFETY LADDER SUBWELDMENT, L.H. DO NOT SCALE 5737222 5000TL BOTTOM REAR GUSSET DO NOT SCALE DRAWING NAME DATE DRAWN 04/14/2020 1645 LEMONWOOD DR.
Page 20 5746302 QUICKJACK CYLINDER SPACER 5736831 QUICKJACK WHEEL MOUNTING PLATE 5737153 5000TL RUBBER BLOCK TRAY EXTENSION 5735621 5000TL RUBBER BLOCK TRAY EXTENSION CLOSEOUT ISOMETRIC VIEW 5736542 QUICKJACK CYLINDER SPACER GUSSET FOR REFERENCE ONLY 5736886 5000TL RUBBER BLOCK TRAY DO NOT SCALE...
Page 21 PART SPECIFICATION FORM STANDARD BENDPAK Number: 5900263 MRP Description: QUICKJACK TL/TLX/ELX MANUAL, ENGLISH-FRENCH Date: 09/29/2021 ECO : 1. Engineering Specification Application: INSTALLATION MANUAL Detailed Description: Print Settings Unless otherwise specified, use these settings for printing BendPak manuals: Size: A4 (210 to 297 mm), 8.5 by 11...
Page 22 © PN 5905691 QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. www.quickjack.com Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 23 Cale de Verrouillage Lock Block Cale de Verrouillage QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. www.quickjack.com PN 5905822 Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 24 Quickjack 5000TL & TLX Product Labels CAUTION 1645 Lemonwood Dr. Santa Paula, CA USA QuickJack is a wholly-owned subsidiary of BendPak, Inc. MODEL NUMBER / NUMÉRO DE MODÈLE POSITION JACK FRAMES UNDER PARKED VEHICLE. NEVER DRIVE OVER OR ON TOP DESCRIPTION OF JACK FRAMES.
Page 25 Quickjack 5000TL & TLX Label Placement Prop_65_Label.pdf: CALIFORNIA PROPOSITION 65 Size: 1.5”W x 1.5”H WARNING WARNING! This product can expose Material: 4 Mil. Permanent White Adhesive Vinyl you to chemicals including styrene and Ink: U.V. protected CMYK 2/C Process vinyl chloride which are on the list of over 900 chemicals identiﬁed by the...
