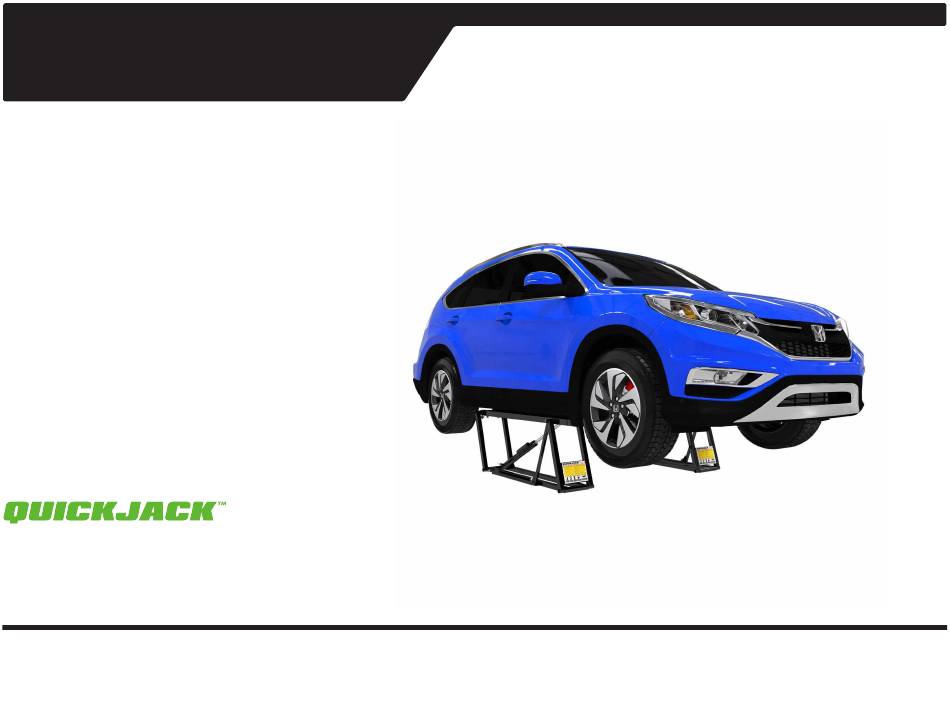

Service Manual

SERVICE PARTS & DIAGRAMS

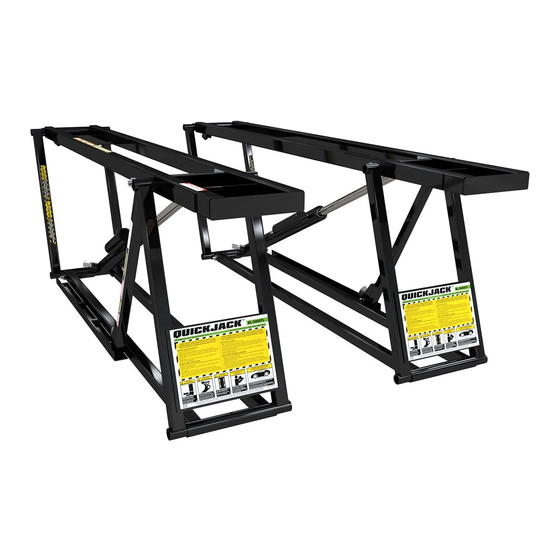

QUICKJACK

7000TL - 110V

PRODUCT SKU

5175640

DRAWING Nº

5175356

Need help?

Do you have a question about the 7000TL and is the answer not in the manual?

Questions and answers

Summary of Contents for QuickJack 7000TL

Page 1 Service Manual SERVICE PARTS & DIAGRAMS QUICKJACK 7000TL - 110V PRODUCT SKU 5175640 DRAWING Nº 5175356 CATEGORY QuickJack Version A DATE 11.01.2022 This guide is a troubleshooting reference used for maintaining and servicing your Bend Pak product. It provides comprehensive information...
Page 2 6000ELX/7000TL FRONT BOTTOM STYROFOAM 5930189 PACKAGING 6000ELX/7000TL REAR BOTTOM STYROFOAM 5930188 PACKAGING 5930191 6000ELX/7000TL TOP STYROFOAM PACKAGING PACKAGING TOP BOX; 7000TL BOX 2-RIGHT, 5910002 ENGLISH-FRENCH 5940059 PLYWOOD INSERT, 1832 x 345 x 6mm 5930575 .50" PLASTIC STRAPPING DO NOT SCALE DRAWING...
Page 3 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601478 7000TL FRAME WELDMENT, R.H. 5502041 OFFSET CYLINDER ASSEMBLY Ø1.75 x 18.329in 5215918 QUICKJACK SAFETY BAR ASSEMBLY 5746670 DOUBLE THREADED ROD M12 x 1.75 x 254 5746142 DOUBLE THREADED ROD M12 x 1.75 x 274...
Page 4 40.987in 20.569in 522.4mm 1041.1mm TOP LOCK 31.493in 14.782in 799.9mm 375.5mm LOWEST LOCK 3.543in 90.0mm 24.144in 1645 LEMONWOOD DR. 613.3mm SANTA PAULA, CA 93060 TITLE: 7000TL FRAME ASSEMBLY, R.H. FULLY LOWERED SIZE DWG. NO. 5215921 SCALE: 1:15 SHEET 2 OF 2...
Page 5 01222 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601476 QUICKJACK SAFETY ARM WELDMENT 5736887 QUICKJACK SAFETY LATCH 5505028 SPRING PIN M6 x 20 NEXT ASSEMBLY DO NOT SCALE DRAWING NAME DATE 5215919...
Page 6 BOM REVISIONS ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5620648 7000TL BOTTOM FRAME SUBWELDMENT, R.H. 5620647 7000TL TOP FRAME SUBWELDMENT 5766359 6000ELX/7000TL SCISSOR ARM TUBE WHERE USED 5746173 6000ELX/7000TL ARM HINGE AXLE...
Page 7 7000TL TOP TUBE 5746172 6000ELX/7000TL ARM HINGE TUBE 5746302 QUICKJACK CYLINDER SPACER 5736831 QUICKJACK WHEEL MOUNTING PLATE 5737154 6000ELX/7000TL RUBBER BLOCK TRAY EXTENSION 6000ELX/7000TL RUBBER BLOCK TRAY EXTENSION 5735622 CLOSEOUT ISOMETRIC VIEW 5736989 6000ELX/7000TL RUBBER BLOCK TRAY FOR REFERENCE ONLY...
Page 8 QUICKJACK CYLINDER SPACER 5736542 QUICKJACK CYLINDER SPACER GUSSET FOR REFERENCE ONLY 5781352 7000TL LOWER CYLINDER PLATE DO NOT SCALE 5620652 6000ELX/7000TL SAFETY LADDER SUBWELDMENT, R.H. 5737223 7000TL BOTTOM REAR GUSSET DO NOT SCALE DRAWING NAME DATE DRAWN 04/17/2020 WHERE USED 1645 LEMONWOOD DR.
Page 9 QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 10 Cale de Verrouillage www.quickjack.com QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. PN 5905825 Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 11 Quickjack 7000TL & TLX Product Labels 1645 Lemonwood Dr. CAUTION Santa Paula, CA USA QuickJack is a wholly-owned subsidiary of BendPak, Inc. MODEL NUMBER / NUMÉRO DE MODÈLE POSITION JACK FRAMES UNDER PARKED VEHICLE. NEVER DRIVE OVER OR ON TOP DESCRIPTION OF JACK FRAMES.
Page 12: California Proposition 65 Warning
Quickjack 7000TL & TLX Label Placement Prop_65_Label.pdf: CALIFORNIA PROPOSITION 65 Size: 1.5”W x 1.5”H WARNING WARNING! This product can expose Material: 4 Mil. Permanent White Adhesive Vinyl you to chemicals including styrene and Ink: U.V. protected CMYK 2/C Process vinyl chloride which are on the list of over 900 chemicals identiﬁed by the...
Page 13 6000ELX/7000TL FRONT BOTTOM STYROFOAM 5930189 PACKAGING 6000ELX/7000TL REAR BOTTOM STYROFOAM 5930188 PACKAGING 5930191 6000ELX/7000TL TOP STYROFOAM PACKAGING PACKAGING TOP BOX; 7000TL BOX 1-LEFT, 5910001 ENGLISH-FRENCH 5940059 PLYWOOD INSERT, 1832 x 345 x 6mm 5930575 .50" PLASTIC STRAPPING 5900263 QUICKJACK TL/TLX/ELX MANUAL, ENGLISH-FRENCH...
Page 14 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601477 7000TL FRAME WELDMENT, L.H. 5502041 OFFSET CYLINDER ASSEMBLY Ø1.75 x 18.329in 5215918 QUICKJACK SAFETY BAR ASSEMBLY 5746670 DOUBLE THREADED ROD M12 x 1.75 x 254 5746142 DOUBLE THREADED ROD M12 x 1.75 x 274...
Page 15 40.987in 20.569in 1041.1mm 522.4mm TOP LOCK 31.493in 14.782in 799.9mm 375.5mm LOWEST LOCK 24.144in 3.543in 613.3mm 90.0mm 1645 LEMONWOOD DR. SANTA PAULA, CA 93060 TITLE: 7000TL FRAME ASSEMBLY, L.H. FULLY LOWERED SIZE DWG. NO. 5215919 SCALE: 1:15 SHEET 2 OF 2...
Page 16 01222 ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5601476 QUICKJACK SAFETY ARM WELDMENT 5736887 QUICKJACK SAFETY LATCH 5505028 SPRING PIN M6 x 20 NEXT ASSEMBLY DO NOT SCALE DRAWING NAME DATE 5215919...
Page 17 BOM REVISIONS ISOMETRIC VIEW FOR REFERENCE ONLY DO NOT SCALE ITEM NO PART NUMBER DESCRIPTION QTY REV 5620646 7000TL BOTTOM FRAME SUBWELDMENT, L.H. 5620647 7000TL TOP FRAME SUBWELDMENT 5766359 6000ELX/7000TL SCISSOR ARM TUBE 5746173 6000ELX/7000TL ARM HINGE AXLE WHERE USED...
Page 18 QUICKJACK CYLINDER SPACER 5736542 QUICKJACK CYLINDER SPACER GUSSET ISOMETRIC VIEW 5781352 7000TL LOWER CYLINDER PLATE FOR REFERENCE ONLY 5620651 6000ELX/7000TL SAFETY LADDER SUBWELDMENT, L.H. 5737223 7000TL BOTTOM REAR GUSSET DO NOT SCALE DO NOT SCALE DRAWING NAME DATE DRAWN 04/17/2020 1645 LEMONWOOD DR.
Page 19 7000TL TOP TUBE 5746172 6000ELX/7000TL ARM HINGE TUBE 5746302 QUICKJACK CYLINDER SPACER 5736831 QUICKJACK WHEEL MOUNTING PLATE 5737154 6000ELX/7000TL RUBBER BLOCK TRAY EXTENSION 6000ELX/7000TL RUBBER BLOCK TRAY EXTENSION 5735622 CLOSEOUT ISOMETRIC VIEW 5736989 6000ELX/7000TL RUBBER BLOCK TRAY FOR REFERENCE ONLY...
Page 20 PART SPECIFICATION FORM STANDARD BENDPAK Number: 5900263 MRP Description: QUICKJACK TL/TLX/ELX MANUAL, ENGLISH-FRENCH Date: 09/29/2021 ECO : 1. Engineering Specification Application: INSTALLATION MANUAL Detailed Description: Print Settings Unless otherwise specified, use these settings for printing BendPak manuals: Size: A4 (210 to 297 mm), 8.5 by 11...
Page 21 QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 22 Cale de Verrouillage www.quickjack.com QuickJack™ products are protected by one or more patents in the United States, Europe, and other countries, including the following: USA Patent D716,514S, China Patent ZL20143005269.X. PN 5905825 Les produits QuickJack™ sont protégés par un ou plusieurs brevets aux États-Unis, en Europe et dans d’autres pays: brevet américain D716,514S, brevet ZL20143005269.X en Chine.
Page 23 Quickjack 7000TL & TLX Product Labels 1645 Lemonwood Dr. CAUTION Santa Paula, CA USA QuickJack is a wholly-owned subsidiary of BendPak, Inc. MODEL NUMBER / NUMÉRO DE MODÈLE POSITION JACK FRAMES UNDER PARKED VEHICLE. NEVER DRIVE OVER OR ON TOP DESCRIPTION OF JACK FRAMES.
Page 24 Quickjack 7000TL & TLX Label Placement Prop_65_Label.pdf: CALIFORNIA PROPOSITION 65 Size: 1.5”W x 1.5”H WARNING WARNING! This product can expose Material: 4 Mil. Permanent White Adhesive Vinyl you to chemicals including styrene and Ink: U.V. protected CMYK 2/C Process vinyl chloride which are on the list of over 900 chemicals identiﬁed by the...
