Model 109D12

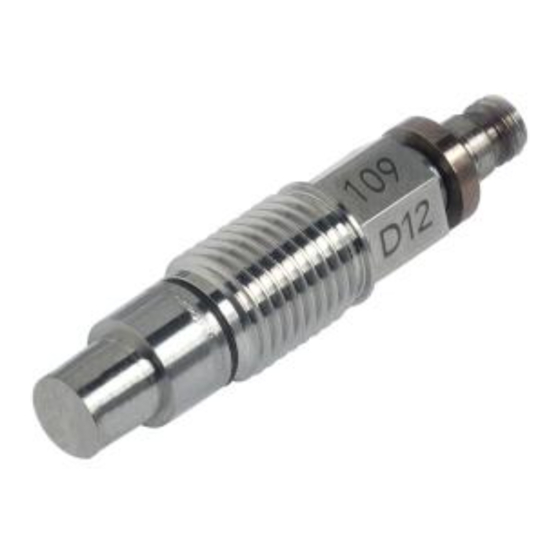

High pressure ICP® ballistic pressure sensor, 100k psi, 0.07 mV/psi, accel. comp.
Installation and Operating Manual
This manual contains the 77139-01 installation and operating manuals that comprise a Model
109D12 High pressure ICP® ballistic pressure sensor, 100k psi, 0.07 mV/psi, accel. comp. kit.
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 109D12 and is the answer not in the manual?

Questions and answers

Related Manuals for PCB Piezotronics 109D12

Summary of Contents for PCB Piezotronics 109D12

  • Page 1 Installation and Operating Manual This manual contains the 77139-01 installation and operating manuals that comprise a Model 109D12 High pressure ICP® ballistic pressure sensor, 100k psi, 0.07 mV/psi, accel. comp. kit. For assistance with the operation of this product, contact the PCB Piezotronics, Inc.

  • Page 2: Repair And Maintenance

     Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.

  • Page 6: Installation

    OPERATION MANUAL FOR HIGH PRESSURE SENSORS ® Series 108 & 109 INTRODUCTION low-impedance, high-level output signal. See the Technical Information section of our website for The 108 & 109 Series are acceleration-compensated, ® more complete coverage of ICP instruments. ® high pressure, ICP (Integrated Circuit Piezoelectric) sensors primarily developed to measure ballistics...

  • Page 7: Recessed Mount

    OPERATION MANUAL FOR HIGH PRESSURE SENSORS ® Series 108 & 109 The limitation in this type of installation lies in the MODEL 040A frequency-limiting effects of the passage due to its REAMER length. MODEL 041A The passage behaves like an underdamped second PILOT BUSHING order system;...

  • Page 8: Flush Mount

    OPERATION MANUAL FOR HIGH PRESSURE SENSORS ® Series 108 & 109 FLASH TEMPERATURE PASSAGE PASSAGE APPROX. EFFECTS LENGTH (in) RESONANCE FASTEST PULSE If more protection from flash thermal effects is (kHz) RISE TIME (sec) required with the recessed mount, the passage can be .050 filled with silicone grease (DC-4 or equivalent).

  • Page 9: Circuit Connections

    OPERATION MANUAL FOR HIGH PRESSURE SENSORS ® Series 108 & 109 CIRCUIT CONNECTIONS 002 SERIES The figures below show two typical circuit ® connections normally used to connect the 108 & 109 POWER SUPPLY Series to power units. The first figure is the connection scheme used for READOUT most applications.

  • Page 10: Operation

    MAINTENANCE The small size and sealed construction of the 108 & 109 Series precludes field maintenance and repair. Contact the factory for further assistance. ® is a registered trademark of PCB Piezotronics Drawing Number: 21113 Revision: B...
  • Page 11 All specifications are at room temperature unless otherwise specified. 3425 Walden Avenue, Depew, NY 14043 In the interest of constant product improvement, we reserve the right to change specifications without notice. ® is a registered trademark of PCB Piezotronics, Inc.
  • Page 12 Model 77139-01 Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
  • Page 13  Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 14 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 15 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 16 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 17 Model Number Revision: NR PRESSURE SENSOR ASSEMBLY 77139-01 ECN #: 53490 OPTION AL VERSION S Performance EN GLISH Optional versions have identical specifications and accessories as listed for the standard model except Sensitivity(± 20 %) 0.25 pC/psi 0.036 pC/kPa where noted below. More than one option may be used. Measurement Range 100,000 psi 690,000 kPa...
  • Page 18 Installation and Operating Manual This manual contains the 77139-01 installation and operating manuals that comprise a Model 109D12 High pressure ICP® ballistic pressure sensor, 100k psi, 0.07 mV/psi, accel. comp. kit. For assistance with the operation of this product, contact the PCB Piezotronics, Inc.
  • Page 19  Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 20 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 21 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 22 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 23 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. RELEASED TO DRAFTING 53262 ELECTRICAL CONNECTOR COAXIAL 10-32 UNF - 2A...
