Model 103B12

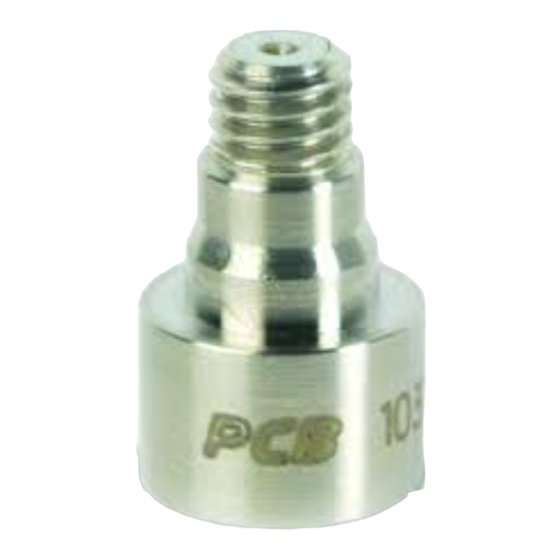

PRESSURE SENSOR, ICP®, ACOUSTIC
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com
Advertisement
Related Manuals for PCB Piezotronics 103B12
Summary of Contents for PCB Piezotronics 103B12
- Page 1 Model 103B12 PRESSURE SENSOR, ICP®, ACOUSTIC Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
- Page 4 OPERATION MANUAL FOR MICROPHONE Series 103A DESCRIPTION The Series 103A microphones are high-sensitivity pressure sensors featuring miniature size, built-in solid state electronics and acceleration compensation. The Model 103A (see installation drawing) has pigtail leads extending radially from the side of the unit and has a nominal sensitivity of 1500 mV/psi.
-
Page 5: Installation
OPERATION MANUAL FOR MICROPHONE Series 103A The result is a two-wire system, precluding the need for multi-conductor cabling. VIEW FROM A second diaphragm, located behind the pressure DIAPHRAGM diaphragm and attached to another bimorph bender WHITE crystal acting in opposition to the pressure crystal, READOUT provides acceleration compensation to the Series BLUE (N.C.) -
Page 6: Maintenance And Repair
The 103A Series Sensors must be dynamically calibrated using a known step function or pulse, or overpressure (see specs with a microphone calibrator. maximum pressure), to do so may change the calibration. ®ICP is a registered trademark of PCB Piezotronics Drawing Number: 21082 Revision: NR...
