Summary of Contents for Cookology MCDW2WH

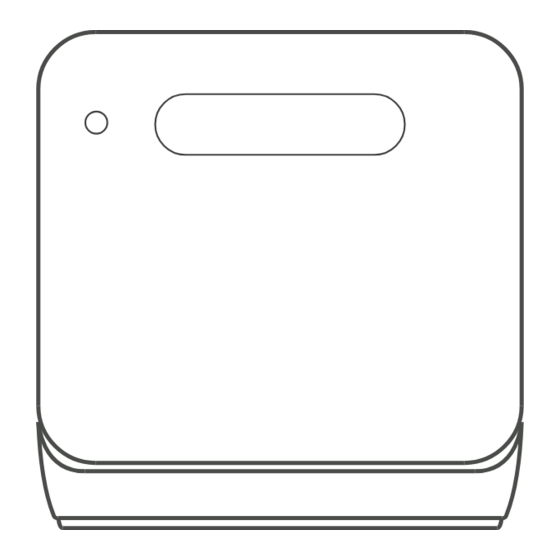

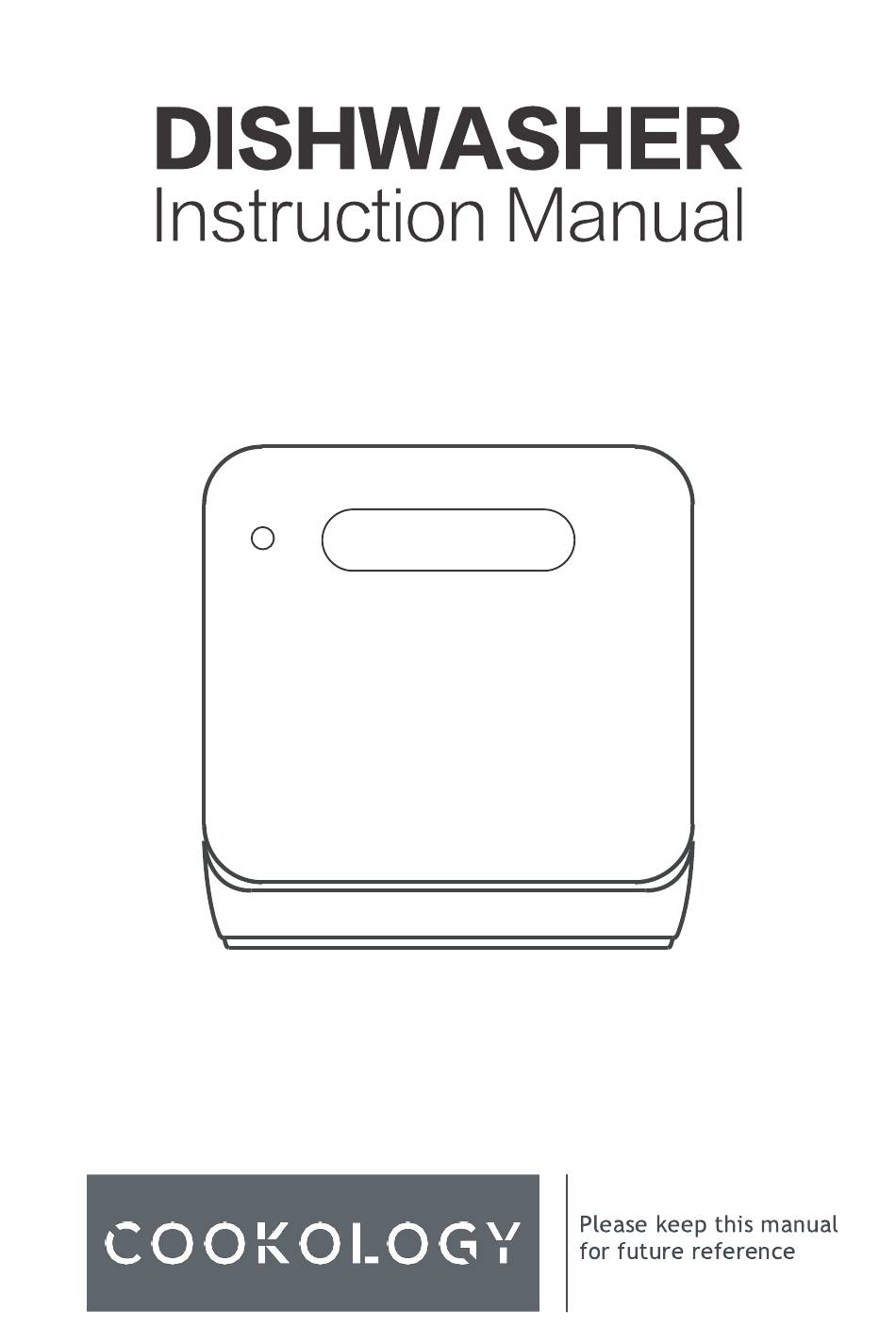

- Page 1 MCDW2WH...
- Page 2 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Connected to power supplies The power supply is 220-240VAC 50 Hz the specification of the socket is 10 A 250 VAC The connection of the drain pipe: Put end of the drain into a sink or bucket. Fix the drain pipe with the back pipe of the machine.The interface is fitted with clamps and tightened with a screwdriver.
- Page 3 Open the door, placing the dishes and adding detergent Placing order by size and from the two sides to the middle. All cutlery are suggested to be tilted to improve cleaning performance. The arm will be blocked with the improper placement of the cutlery and cleaning effect may not be ideal.
-
Page 4: Table Of Contents
CONTENTS Please carefully read this manual before using the dishwasher, it will help you use and maintain the dishwasher properly . IMPORTANT SAFETY INSTRUCTIONS GETTING TO KNOW YOUR APPLIANCE Dishwasher features Control panel USING YOUR DISHWASHER Loading the salt into the softener Adjusting Salt Consumption Loading the dishwasher baskets Filling the dispenser... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WANING When using your dishwasher , follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;... - Page 6 experienceand knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1) This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 7 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
- Page 8 Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items without mark, check the manufacturer's recommendations. Use only detergent additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
- Page 9 Disposal For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 10: Getting To Know Your Appliance
GETTING TO KNOW YOUR APPLIANCE IMPORTANT: Before using this dishwasher for the first time and to get the best performance, read these instructions. Dishwasher features Cap of water tank Upper spray arm Flashlight Salt container Lower spray arm Tableware rack Filter The place to Add detergent... -
Page 11: Control Panel
Control panel To turn on and off. Power Program Button: Press the button to select wash cycles. Rapid A shorter wash for lightly soiled loads that do not need drying. Intensive For extremely dirty cooking tools and cutlery using, it will Program be drying after washing. -
Page 12: Using Your Dishwasher
USING YOUR DISHWASHER NOTE If your model have no water softener, you may skip this section. Loading the salt into the softener Always use salt intended for use with dishwasher.The salt container is located beneath the basket and should be filled as follows: WANING Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use,... -
Page 13: Adjusting Salt Consumption
E. Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt. F. Immediately after filling the salt into the salt container, a washing program should be started (Suggest choose rapid program). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water. -
Page 14: Loading The Dishwasher Baskets
There are 6 levels of salt consumption in all. It is recommended to select the level according to below table: Indicator Display WATER HARDNESS Setting on the water softener BabyCare Intensive Mmol/l 0 - 0.94 0 - 5 1.0 - 2.0 6 - 11 2.1 - 3.0 12 - 17... - Page 15 Suitability of use in the dishwasher Not suitable for use: Limited suitability: Cutlery with wooden, horn, china or mother-of-pearl Some glasses can become dull handles after a large number of washes. Plastic items that are not heat resistant Silver and aluminium have a Older cutlery with glued parts that are not tendency to discolour during temperature resistant...
- Page 16 Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket. Please do not overload your dishwasher. This is important for good results and for reasonable energy consumption. Loading basket Position the dishes and cookware so that they will not get moved by the spray of water. Item Number Dinner Plate...
- Page 17 Loading the cutlery basket Item Number Knife Soup spoon Fork Dessert spoon Teaspoon Serving spoon Serving fork Gravy ladle For personal safety and a top quality clean, make sure place the silverware in the basket as follows: They do not nest together. Place silverware with handles-down.
-
Page 18: Filling The Dispenser
Filling the dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes and utensils, which can leave spots and streaks. WANING Only use detergent specifically for dishwashers. Never use any other rinse aid and detergents. This will damage the appliance. - Page 19 Adding detergent The palce to add the detergent...
-
Page 20: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash cycle table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Description Time Energy Water Program Detergent Of Cycle... -
Page 21: Turning On The Appliance
Turning on the appliance Starting a wash cycle... Draw out the basket(see the section entitled "Loading the Dishwasher"). Pour in the detergent (see the section“Fill the detergent”). Insert the plug into the socket. The power supply is 220-240VAC 50 HZ, the specification of the socket is 10 A 250 VAC. -
Page 22: Forget To Add A Dish
NOTE If you want to open the door during washing, please press the Start/Pause button to pause the machine first. And then when you close the door and press the Start/Pause button, the machine will keep on working after 10 seconds. If your model has broken remember function, the machine will go on to finish the selected program after the power cut. -
Page 23: At The End Of The Wash Cycle
At the end of the Wash Cycle When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid scald, the dishes and utensils are still hot and more susceptible to breakage. -
Page 24: Maintenance And Cleaning
MAINTENANCE AND CLEANING Filter system WANING Never use the dishwasher without filters! Make sure the filter is properly assembled. The performance may be affected and dishes and utensils could become damaged. The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. -
Page 25: Caring For The Dishwasher
NOTE If do it from step1 to step 2, the filter system will be removed; while if do it from Step 2 to Step 1, the filter system will be installed. The entire filter assembly should be cleaned once a week. Inspect the filters for blocking after every time the dishwasher has been used. - Page 26 Protect against freezing please take frost protection measures on the dishwasher in winter. E ach time a fter washing cycles, please operate as follows. 1. Cut off electrical power to the dishwasher. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
- Page 27 How to keep your dishwasher in shape After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket.
-
Page 28: Installation Preparation
INSTALLATION WANING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. Installation preparation The installation position of dishwasher should be near the existing water inlet tap and drain outlet and power socket. -
Page 29: About Power Connection
About Power Connection WANING For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord. Electrical Requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. -
Page 30: Connection Of Drain Hoses
Connection of drain hoses Fix the drain pipe with the back pipe of the machine.The interface is fitted with clamps and tightened with a screwdriver. Fix the drain pipe with suction cups The connection of the drain pipe: Put end of the drain into a sink or bucket. How to Drain Excess Water From Hoses If the sink is more than1000 mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. -
Page 31: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. start circuit break tripped. Remove any other appliances sharing the same circuit with the dishwasher. - Page 32 Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. Hard water minerals. To clean the interior, use a damp White film on sponge with dishwasher detergent inside surface...
- Page 33 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of can rotate freely. the spray arms. The filter combination Clean and/or fit the filter correctly.
-
Page 34: Error Signals
Problem Possible Causes What To Do The dishesare Wrong program has With a short program, the not drying been selected. washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating. -
Page 35: Technical Information
Technical information 4 2 0 4 2 0 Height 435mm Width 420mm Depth 435mm Voltage connected Load see rating label Water pressure 0.04 - 1.0MPa Power supply see rating label Capacity 2 place settings...
