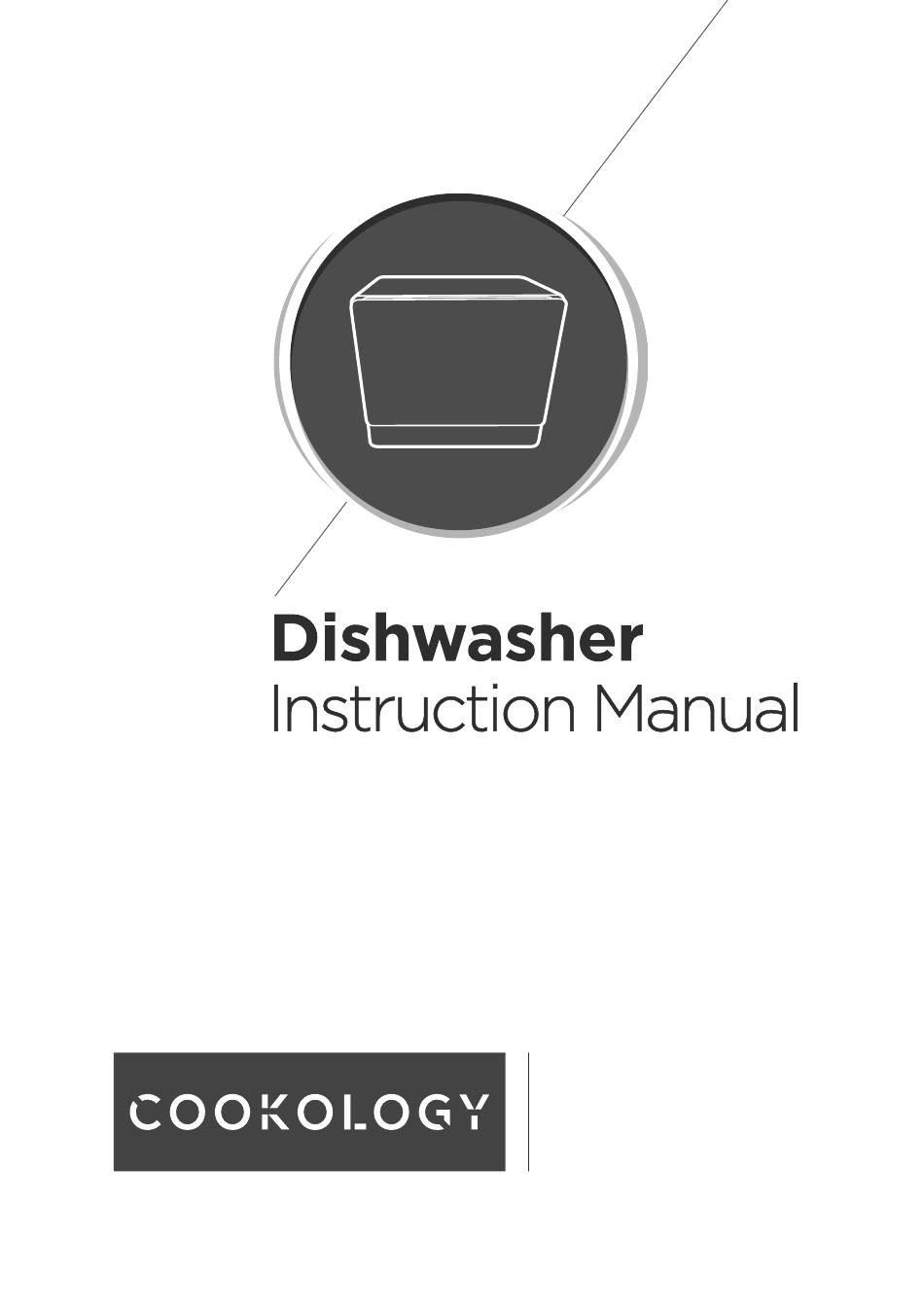

- Page 1 Model : CMDW5WH Please read this manual carefully before using the dishwasher and Keep this manual for future reference. Please register the warranty for this product on www.Cookology.com...
- Page 2 QUICK USER GUIDE Inside Outside Discard scraps Load dishes carefully Scrape large food particles off and For better washing result, place the remove any foreign objects. dishes properly avoiding any contact or overlapping between them. Check spray arm Add detergent Ensure there are no items blocking the spray arm from rotating.
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION PRODUCT DESCRIPTION Part Names Control Panel USING YOUR DISHWASHER Loading The Salt Into The Softener Adjusting Salt Consumption Preparing And Loading Dishes Basket Use Tips Adding Detergent OPERATING THE APPLIANCE Wash Cycle Table Starting A Cycle Wash Changing The Program Once Started Adding Items While A Wash Is In Progress MAINTENANCE AND CLEANING... - Page 4 SAFETY INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE USE It is your responsibility to use caution when installing maintaining, and operating your dishwasher. We will not be liable for any damage resulting from improper use. This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage or serious bodily harm, even death.
- Page 5 - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge providing they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 6 Do not put downward force on either opened drawer prior to the dishwasher being fully installed. It will be unstable and may tip forward. Do not use the dishwasher before it is fully installed as per the Installation Instructions. It will be unstable and be likely to tip forward.
- Page 7 An earthed 3 pin socket must be used. Consult a registered electrician if there is doubt regarding the earth connection. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The appliance shall be installed in accordance with national wiring regulations.
- Page 8 Product Disposal The packaging can be recycled. If the product is to be disposed, do this responsibly at your local Council Waste Depot. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
-
Page 9: Product Description
PRODUCT DESCRIPTION IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Part Names Front Top of inner tank Middle spray arm Upper spray arm Lower spray arms Filter Detergent adding receptacle Water overflow hole not air outlet hole. - Page 10 Upper basket Lower basket List of accessories Inlet pipe ( X1 ) Drain-pipe ( X1 ) Screws ( X2 ) Suckers ( X2 ) WANING Be sure to install the suckers before use to avoid potential dangerous!
-
Page 11: Control Panel
Control Panel Operation (Button) Press this button to turn on your dishwasher. Power Press these buttons to select the appropriate washing program, Program the selected program icon will light up. Press the button to increase the delay start time. Delay a cycle Delay start for up to 24 hours in one-hour increments. - Page 12 Display Salt Warning If the “ ” indicator is lit, it means the dishwasher is low indicator on dishwasher salt and needs to be refilled. This option allows you to lock the buttons on the control panel, so children cannot accidently start the dishwasher by pressing the buttons on the panel.
-
Page 13: Using Your Dishwasher
USING YOUR DISHWASHER NOTE If your model have no water softener, you may skip this section. Loading The Salt Into The Softener Always use salt intended for use with dishwasher. The salt container is located beneath the basket and should be filled as follows: WANING Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use,... -
Page 14: Adjusting Salt Consumption
E. Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt. F. Immediately after filling the salt into the salt container, a washing programme should be started (Suggest choose rapid program). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water. - Page 15 There are 6 levels of salt consumption in all. It is recommended to select the level according to below table: WATER HARDNESS Regeneration occurs Setting on Salt consumption(gram/cycle) every X programme the water sequence softener Mmol/l 0 - 0.94 0 - 5 1.0 - 2.0 6 - 11 2.1 - 3.0...
-
Page 16: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles... -
Page 17: Basket Use Tips
To avoid damage, glasses should not touch one another. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. NOTE: Very small items should not be washed in the dishwasher as they could easily fall through the basket. - Page 18 Upper basket Number Item Number Item Number Item Dessert spoon Fork Tea spoon Knife Glass Gravy ladle Soup spoon Serving fork Serving spoon Lower basket 16 15 Number Item Number Item Number Item Small pot Melamine dessert plate Soup plate Saucer Dinner plate Dessert plate...
-
Page 19: Adding Detergent
Adding Detergent WANING Only use detergent specifically for dishwashers. Never use any other detergents. This will damage the appliance. Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types: Conventional, alkaline detergents with caustic components. - Page 20 Adding detergent The palce to add the detergent...
-
Page 21: Operating The Appliance
OPERATING THE APPLIANCE Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Running Energy... -
Page 22: Starting A Cycle Wash
Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2. Pour in the detergent. 3. Insert the plug into the socket. The power supply refer to ” ”... -
Page 23: Adding Items While A Wash Is In Progress
Adding Items While A Wash Is In Progress You can add items after the wash program has begun. However if it is no longer in the wash cycle, anything added may not be well washed, and other items soiled as well. Check that it is not rinsing. Follow these instructions: 1. -
Page 24: Maintenance And Cleaning
MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arm. - Page 25 Filtering system Fine filter Main filter Main filter Hold the coarse filter and rotate it Lift fine filter up from main filter. anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. Larger food remnants can be Reassemble the filters in the reverse cleaned by rinsing the filter under order of the disassembly, replace the...
- Page 26 Spray arms It is necessary to clean the spray arm regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arm, follow the instructions below: Spray arms To remove the spray arm, hold one Wash the spray arm in soapy and end of the spray arm first, then press warm water and use a soft brush to...
-
Page 27: Caring For The Dishwasher
Caring For The Dishwasher Frost precaution If you live in a region that is where the inside temperature can drop below zero, care needs to be taken to avoid possible damage if the water in the dishwasher freezes. 1. Turn off the mains power to the dishwasher. 2. -
Page 28: Installation Instruction
INSTALLATION INSTRUCTION Product Dimensions 500 mm Height 550 mm Width (W) 357 mm(with the door closed) Depth (D1) 715 mm (with the door opened 90°) Depth (D2) -
Page 29: Electrical Requirements
Electrical Requirements WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. Install the suckers Use a screwdriver to tighten the suckers into the holes on the left and right sides at the bottom of the back of the machine. -
Page 30: Inlet Pipe Connected
Inlet Pipe Connected Connect the inlet pipe to the faucet Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. -
Page 31: Drain Pipe Connected
Drain Pipe Connected Fix the drain pipe with the back pipe of the machine. The interface is fitted with clips. Fix the drain pipe with the back pipe of the machine.The interface is fitted with clamps and tightened with a screwdriver. The connection of the drain pipe: Put end of the drain into a sink or bucket. -
Page 32: About Power Connection
About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord. Electrical requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. -
Page 33: Troubleshooting Tips
TROUBLESHOOTING TIPS Before Calling For Service Before calling for service, check the following list for problems probable causes and what you can do. Problem Possible causes Solution Fuse blown, or the Replace fuse or reset circuit breaker. Dishwasher doesn't circuit breaker tripped. Remove any other appliances sharing the start same circuit with the dishwasher. - Page 34 Problem Possible Causes What To Do There are rust The affected items Avoid washing items that are not stains on cutlery are not corrosion corrosion resistant in the dishwasher. resistant. Knocking noise The spray arm is Interrupt the program, and rearrange knocking against in the wash cabinet the items which are obstructing the...
- Page 35 Problem Possible Causes What To Do Combination of soft Use less detergent if you have soft Cloudiness on water and too much water and select a shorter cycle to glassware. detergent. wash the glassware and to get them clean. Aluminium utensils Use a mild abrasive cleaner to Black or grey have rubbed against...
-
Page 36: Error Codes
Error Codes If there is a malfunction, the dishwasher will display error codes to identify the symptom. Codes Meanings Possible Causes Extended Water Inlet Time. Water supply failure, closed faucet, or insufficient supply water pressure. Water temperature not Heating element malfunction. reaching target. - Page 37 Product information sheet Supplier's name or trade mark: Cookology Supplier's address ( ): Model identifier: General product parameters: Parameter Value Parameter Value Height Rated capacity ( ) (ps) Dimensions in cm Width Depth EEI ( ) 61.9 Energy efficiency class ( )
- Page 38 Please register the warranty for this product on www.Cookology.com...
