Network Turret Camera·Quick Start Guide
Steps:
1. Mark the screw holes on desired mounting place.
Figure 2-30
2. Drill four screw holes with a Φ10 mm drill.
3. Route the cables and fix the bracket with four M6 expansion
bolts.
4. Disassemble the camera.
Refer to step 1 in ceiling mounting of each camera type.
5. Fix the mounting base to the cap of wall mount with 3 supplied
self-tapping screws.

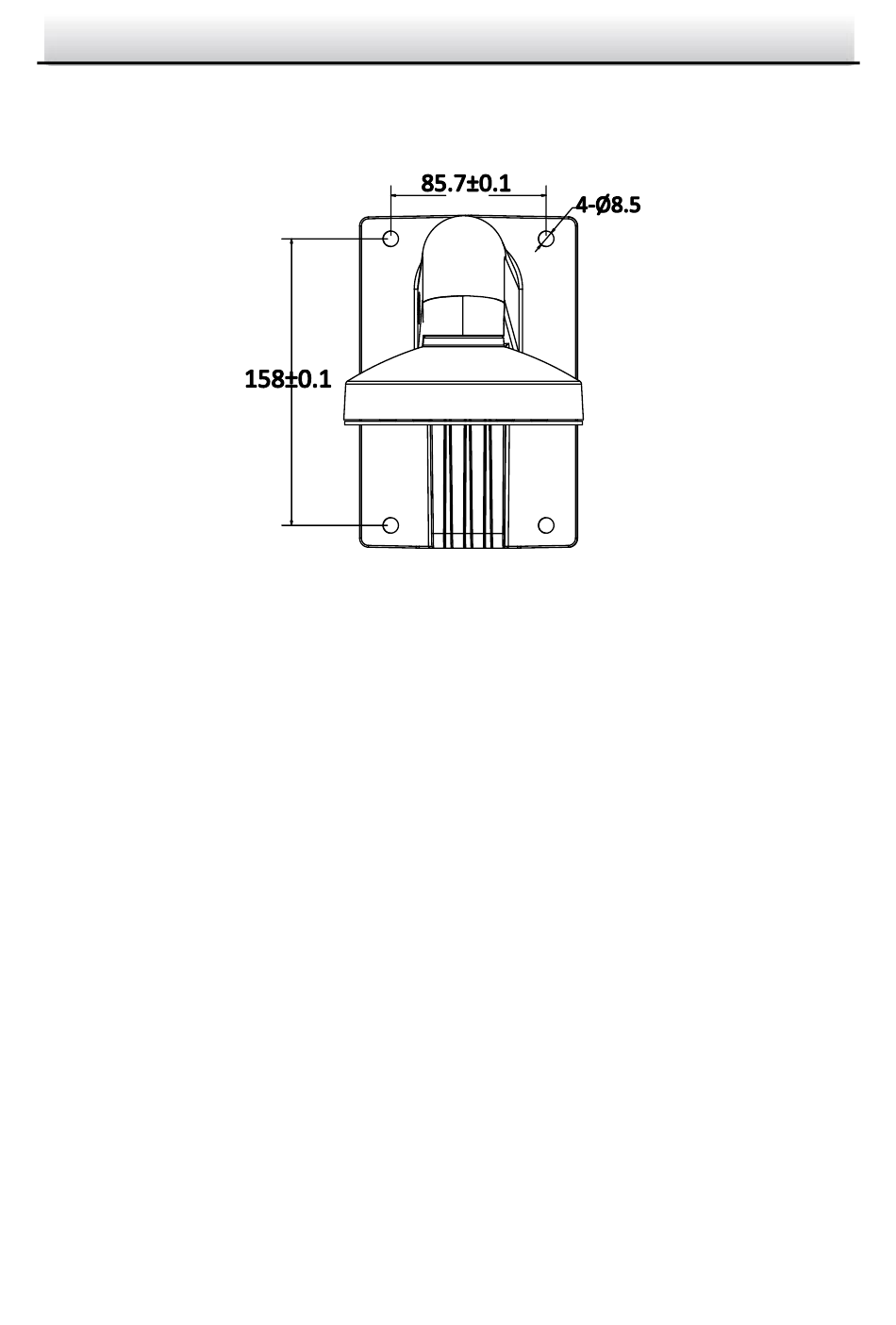

Dimension of Demonstrated Wall Mounting Bracket
