Network Turret Camera·Quick Start Guide
Screw the memory card slot cover back.
4).
3.
Paste the drill template to desired mounting place.
4.
Drill the screw holes (for expansion screws) and the cable hole
on the ceiling according to the drill template.
Note:
If the camera is installed to a wooden wall, use self-tapping
screws instead of expansion screws.
5.
Fix the mounting base to the ceiling with two supplied screws.

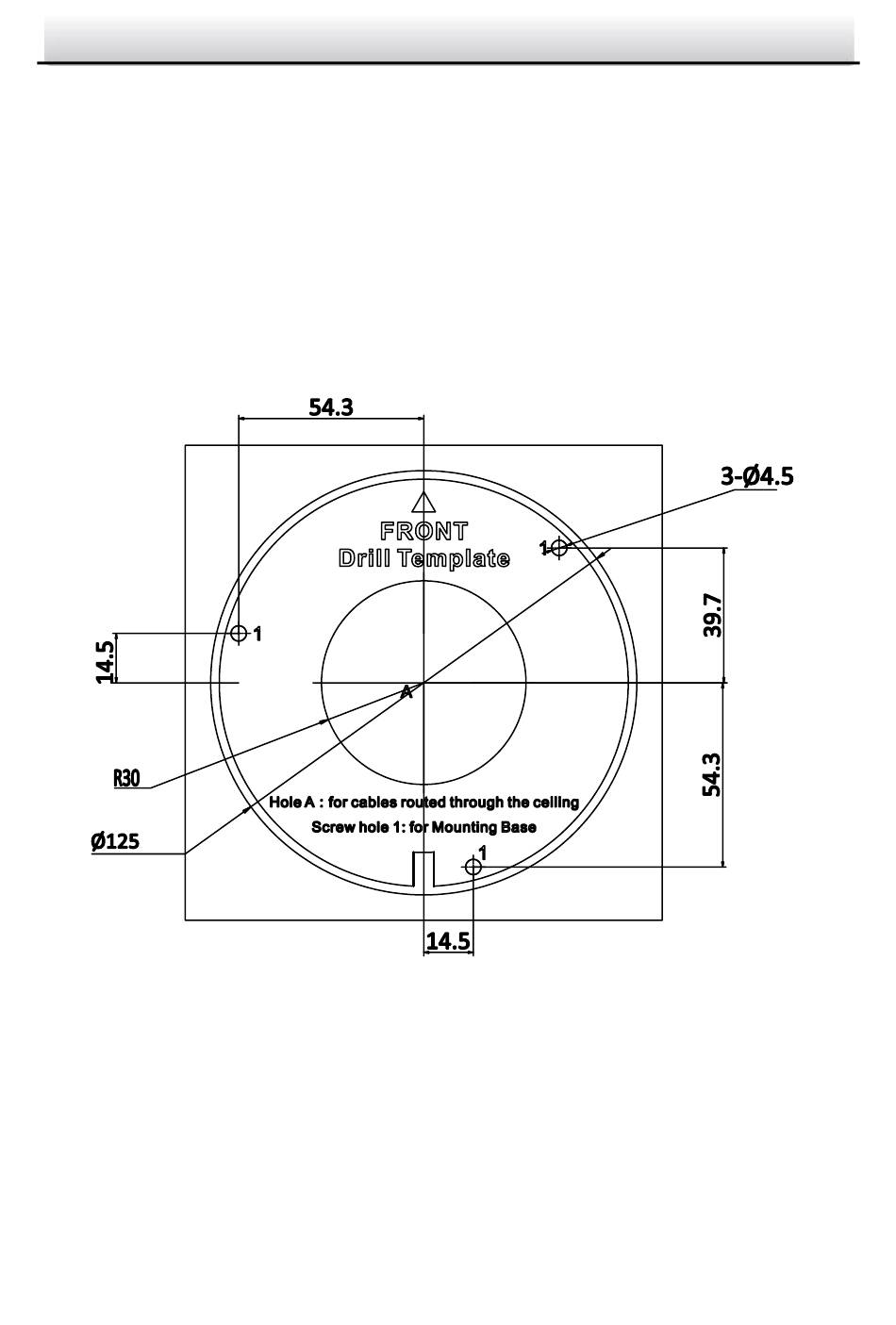

Figure 2-25
Drill Template
29
