5. Install the camera along with the enclosure to the mounting
base by anticlockwise rotating the camera.
6. Rotate the enclosure to adjust the pan angle; rotate the camera
to adjust the tilt angle.
7. Attach the trim ring to the camera and rotate the trim ring
clockwise to get it secured.

2.1.3 Type III

P Direction
o
360
T Direction
o o
0 to 75

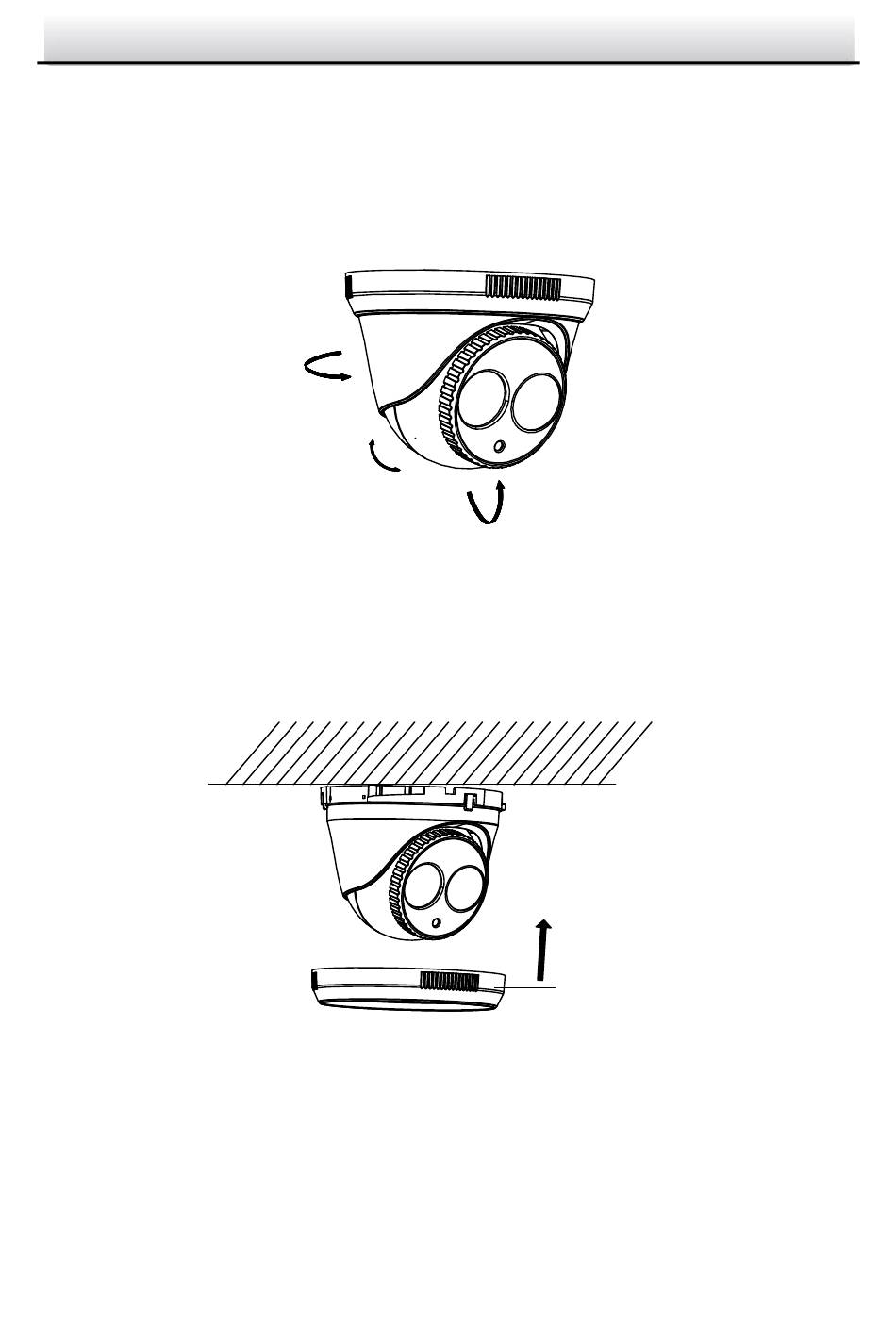

Figure 2-13
Figure 2-14 Install the Trim Ring
R Direction
o
360
Adjust the Lens
Trim Ring
