Summary of Contents for Olympus USG-410

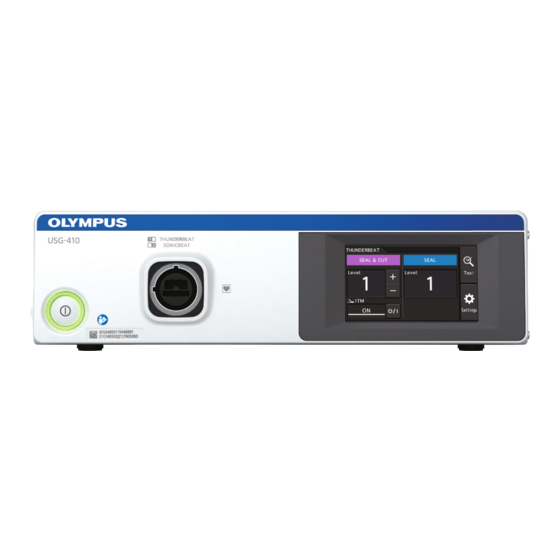

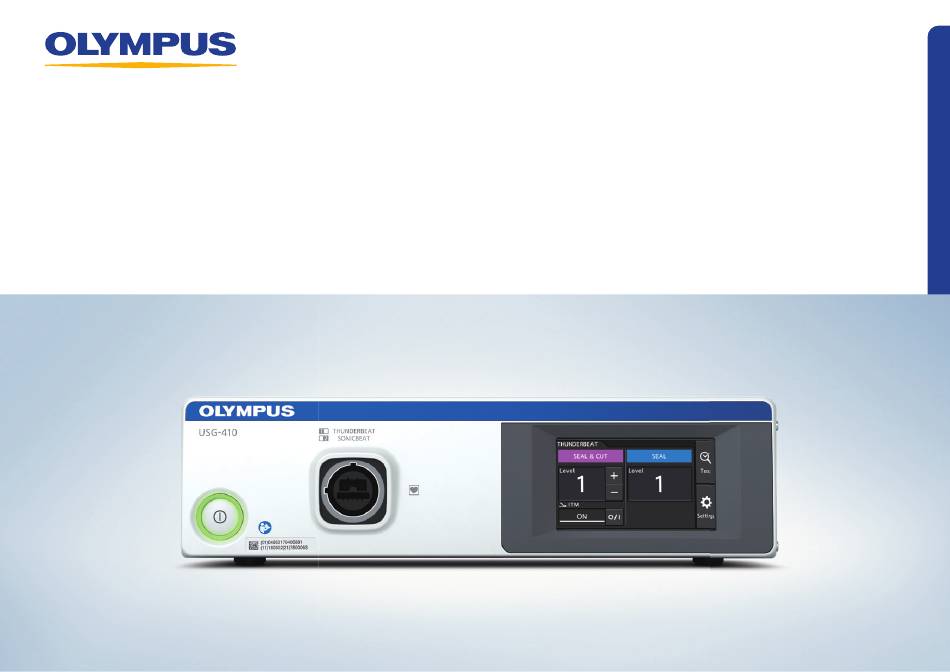

- Page 1 QUICK REFERENCE GUIDE USG-410 Ultrasonic Bipolar Generator...
- Page 2 3. Press and hold the SEAL button (blue). Get started 4. Confi rm the following during the SEAL 1. Connect THUNDERBEAT or SONICBEAT via a transducer to USG-410. mode output: - Align the symbols on plug and socket and fully insert the transducer - The output screen is displayed.
- Page 3 Touch Screen: Status and Settings Procedure name is displayed Mode name Foot switch indicator here, if a saved procedure is selected. Instrument name Activation test for ultrasonic output Intelligent Tissue Monitoring (ITM) detects when the tissue is cut and stops the ultrasonic and RF bipolar Settings output automatically.
- Page 4 Withdraw body fluid and tissue on the grasping section, probe tip, and shaft surface. U509 Transducer plug is not connected properly to the THUNDERBEAT / SONICBEAT Confirm that the transducer plug is connected to the THUNDERBEAT / SONICBEAT socket at USG-410. Ultrasonic level error socket at USG-410.
