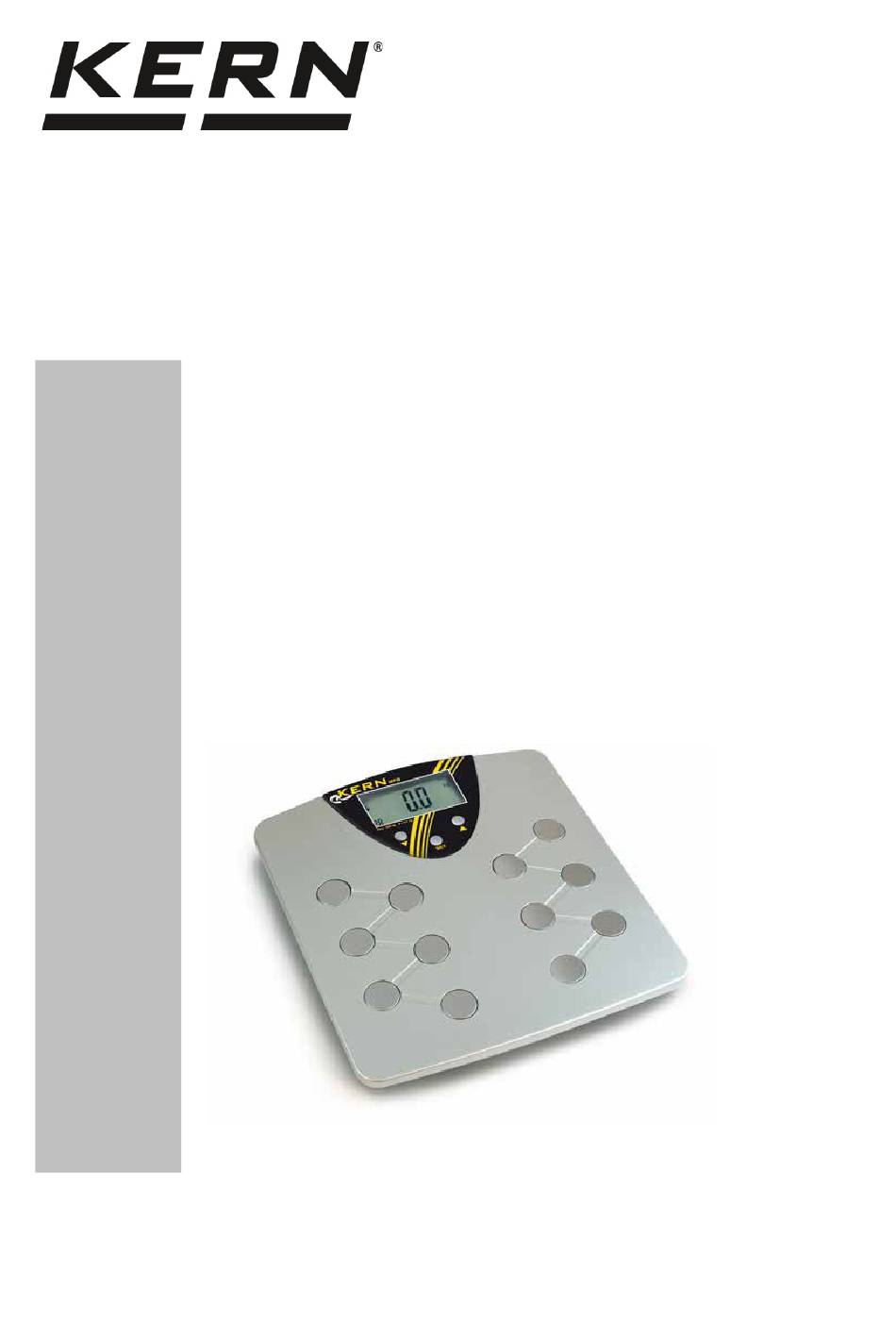

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Operating Manual Body fat balance KERN MFB Version 1.0 05/2016 MFB -BA-e-1611...
-
Page 2: Table Of Contents
KERN MFB 150K100 Version 1.1 05/2016 Operating Manual Body fat balance Table of Contents Technical Data _________________________________________________ 3 Basic Information (General) ______________________________________ 4 Proper use _______________________________________________________ 4 Improper Use ____________________________________________________ 4 Warranty ________________________________________________________ 5 Basic Safety Precautions ________________________________________ 5 Pay attention to the instructions in the Operation Manual _______________ 5 Transportation &... -
Page 3: Technical Data
1 Technical Data KERN MFB 150K100 Readability (d) 100 g Weighing range (max) 150 kg Weighing Units kg, lb Reproducibility +- (100 g +1%) Linearity +- (100 g +1%) Stabilization time (typical) 2 – 3 sec. Battery operated 4 x 1.5V, size AAA Electric Supply Battery life for three times daily use: 1 year Auto Off... -
Page 4: Basic Information (General)
Basic Information (General) These body fat balance are designed for the determination of body fat, water content, muscle ratio and bone weight according to the so-called impedance method. This method is applied to determine the resistance value of the human body with the help of electrical impulses. -
Page 5: Warranty
2.3 Warranty Warranty claims shall be voided in case Our conditions in the operation manual are ignored The appliance is used outside the described uses The appliance is modified or opened Mechanical damage and damage caused by media, liquids ... -
Page 6: Unpacking
Place the balance on a firm, level surface; Avoid extreme heat as well as temperature fluctuation caused by installing next to a radiator or in the direct sunlight; Protect the balance against direct draughts due to open windows and doors; Avoid jarring during weighing;... -
Page 7: Operation
6 Operation 6.1 Controls 6.1.1 Display 6.1.2 Keys and display overview Display Description [arrow Selecting parameters down] ▼ Selecting or confirming your selection [SET] [arrow up] Selecting parameters Default: Gender of person Male Female Default: Age of person Default: Height of person Display: Body fat ratio in % MFB -BA-e-1611... -
Page 8: Using The Balance
Display: Body water ratio in % Display: Muscle ratio in % BONE Display: Bone weight in kg You can change the scale’s weighing unit from “kg“ to “lb“ at the rear of the balance. When changing the weighing unit to lb you must enter the body height in ft. 7 Using the balance To switch on balance, press one of the 3 keys. -
Page 9: Usage As Body Fat Balance
d. When age starts to flash, this too, can be changed by pressing the arrow keys. Complete your data entries by pressing SET. _ _ _ _“ After these entries have been made, the display will show “ for a short while. Afterwards 0.0 kg will be displayed and the balance are ready for weighing. - Page 10 On top of this, the bottom line on the display will show an evaluation of the body fat ratio in words. Displayed words indicate the following: Underfat = body fat ratio too low Healthy = body fat ratio optimal Overfat = body fat ratio too high Obese = person tending towards obesity d.
- Page 11 Table for standard values body fat, body water, muscle and bone Body fat (%): Female Male too low normal obese too low normal obese high high < 39 < 21 21-33 33-39 > 39 < 8 8 -19 19-25 > 25 40-59 <...
-
Page 12: Error Message
8 Error message Messages can be displayed when the balance are switched on or in operation. ERR 1: Weighing range exceeded ERR 2: Measuring started without a barefoot person present on weighing plate. Lo : Batteries are run down ----- : Load was present on weighing plate when started After the load was taken off the weighing plate, the display will again show "-----„. -
Page 13: Instant Help
10 Instant help In case of a fault in the program sequence, the balance should be shortly switched off. The weighing process must then be restarted from the beginning. Help: Fault Possible cause The displayed weight does • The balance is not switched on. not glow. -
Page 14: Declaration Of Conformity
11 Declaration of Conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce MFB -BA-e-1611...
