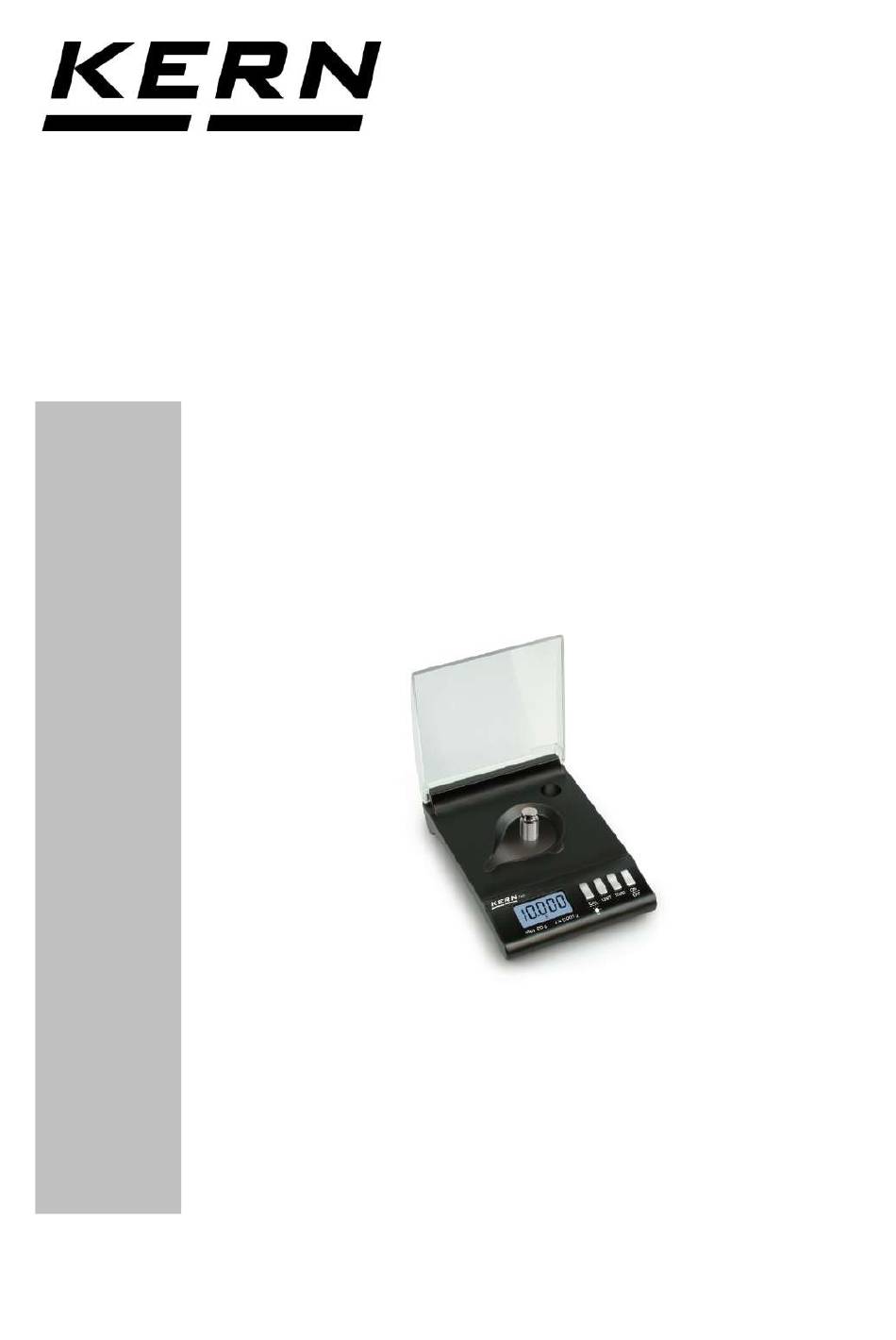

Instruction Manual
Pocket scale
KERN TAB
Version 1.4
2020-02
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
email: info@kern-sohn.com
Importør:
Impex Produkter AS
Gamle Drammensvei 107
1363 Høvik
www.impex.no
info@impex.no
Tel.: 22 32 77 20
Tel: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
TAB-BA-e-2014
Advertisement
Table of Contents
Related Manuals for KERN&SOHN TAB-BA-e-2014
Summary of Contents for KERN&SOHN TAB-BA-e-2014
- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Instruction Manual Pocket scale Importør: Impex Produkter AS Gamle Drammensvei 107 1363 Høvik www.impex.no info@impex.no KERN TAB Tel.: 22 32 77 20 Version 1.4 2020-02 TAB-BA-e-2014...
-
Page 2: Table Of Contents
Dis play bac kground illumination ..................12 S ervic e, maintenanc e, dis pos al ..............13 C leaning ..........................13 S ervic e, maintenanc e ......................13 Dis pos al ........................... 13 Ins tant help ....................14 Dec laration of C onformity ................14 TAB-BA-e-2014... -
Page 3: Technical Data
+ 10° C …. + 30° C Humidity of air 15 % - 80 % (non-condensing) Dimensions of the housing 95 x 133 x 33 (W x D x H) [mm] Weighing plate [mm] Ø 18 Weight (net) 200 g TAB-BA-e-2014... -
Page 4: Basic Information (General)
Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. TAB-BA-e-2014... -
Page 5: Basic Safety Precautions
Only use original packaging for returning. Prior to dispatch disconnect all cables and remove loose/mobile parts. Reattach possibly supplied transport securing devices. Secure all parts such as the glass wind screen, the weighing platform, power unit etc. against shifting and damage. TAB-BA-e-2014... -
Page 6: Appliance Overview
5 Appliance overview Wind screen / hinged cover serving as pressure and dust protection Adjustment weight Weighing surface with weighing vessel TAB-BA-e-2014... -
Page 7: Unpacking, Setup And Commissioning
In that case, the location must be changed. 6.2 Unpacking Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. 6.2.1 Scope of delivery Serial accessories: • Pocket scale • Batteries • Instruction Manual • Adjustment weight TAB-BA-e-2014... -
Page 8: Battery Operation And Change
“ZERO“ appears flashing Confirm by pressing and the value of the adjustment weight will be shown flashing Position the adjustment weight; after a while “PASS“ appears; this concludes the adjustment process. Afterwards the scale switches off automatically. TAB-BA-e-2014... -
Page 9: Operation Mode
7.1 Keyboard overview Description Function Short key pressing • Adjusting (Press and hold key for a long time) • Backlighting ON/OFF CAL-key • Weighing units switch-over UNIT-key • Tare = Return display to zero TARE button • Turn on/off ON/OFF-switch TAB-BA-e-2014... -
Page 10: Operation
Now it is ready for operation. If display does not show ”0“, press Put on items to be weighed, weighed value is displayed. (Example) If the material to be weighed is heavier than the weighing range, the display will show „OVER" (=Overload). TAB-BA-e-2014... -
Page 11: Taring
The taring process can be repeated any number of times, e.g. when adding several components for a mixture (adding). The limit is reached when the whole weighing range is exhausted. After removing the taring container the total weight is displayed as negative display. TAB-BA-e-2014... -
Page 12: External Weighing Units
Pour object to be weighed into container and read the measured value. (Example) The following weighing units are available: Gram g * 20 g 100.00 ct 308.64 gn *default setting 7.3 Display background illumination The display unit can be kept on or off. For this press shortly TAB-BA-e-2014... -
Page 13: Service, Maintenance, Disposal
The appliance may only be opened by trained service technicians who are authorized by KERN. 8.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. TAB-BA-e-2014... -
Page 14: Instant Help
(choose different location/switch off interfering device if possible) Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer. 10 Declaration of Conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce TAB-BA-e-2014...
