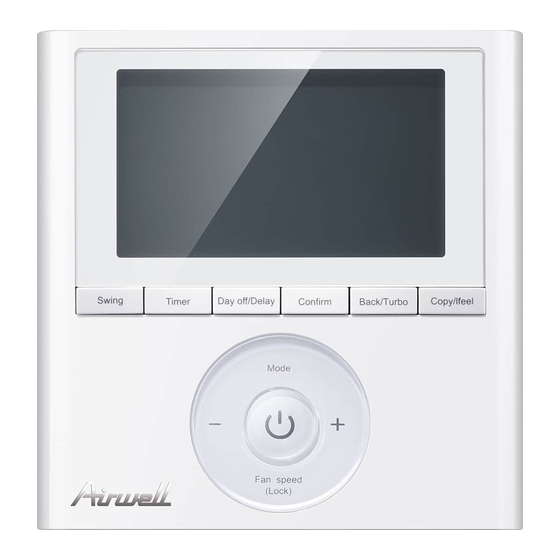

RCW22 - WIRED REMOTE CONTROLLER
Installation and Owner's Manual
COMPATIBLE FOR HDH & XDM
IMPORTANT NOTE:
Read this manual carefully before
installing or operating your wired
remote controller. Make sure to save
this manual for future reference.
RCW22-20190627-Rev1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCW22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airwell RCW22

Summary of Contents for Airwell RCW22

  • Page 1 RCW22 - WIRED REMOTE CONTROLLER Installation and Owner’s Manual COMPATIBLE FOR HDH & XDM IMPORTANT NOTE: Read this manual carefully before installing or operating your wired remote controller. Make sure to save RCW22-20190627-Rev1.1 this manual for future reference.
  • Page 2 ● This manual gives detailed description of the precautions that should be brought to your attention during operation. ● To ensure the correct service of the wired controller, read this manual carefully before using the unit. ● Keep this manual after reading for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTION............... 1 2. INSTALLATION ACCESSORY.............. 2 3. INSTALLATION METHOD..............4 4. APPENDIX INSTALL THE WIRE CONTROLLER KIT.......10 5. SPECIFICATION................16 6. WIRED CONTROLLER FEATURES AND FUNCTIONS......17 7. WIRED CONTROLLER DISPLAY............18 8. WIRED CONTROLLER BUTTONS............19 9. PREPARATORY OPERATION..............20 10. OPERATION...................21 11.

  • Page 4: Safety Precaution

    1. SAFETY PRECAUTION Read the safety precautions carefully before installing the unit.  Stated below are important safety issues that must be obeyed.  Means improper handling may lead to personal death or severe injury. WARNING Means improper handling may lead to personal injury or property loss. CAUTION WARNING Please entrust the distributor or professionals to install the unit.

  • Page 5: Installation Accessory

    2. INSTALLATION ACCESSORY Select the installation location Don’t install at the place where cover with heavy oil, vapor or sulfureted gas, otherwise, this product would be deformed that would lead to system malfunction. Preparation before installation 1. Please confirm that all the following parts you have been supply. Name Qty.
  • Page 6 2. INSTALLATION ACCESSORY WIRED CONTROLLER INSTALLATION PRECAUTION 1. This manual provides the wired controller installation method. Refer to the wiring diagram in this installation manual to wire the wired controller with the indoor unit. 2. The wired controller works in a low voltage loop circuit. Do not connect directly to 208/230V and 460V.

  • Page 7: Installation Method

    3. INSTALLATION METHOD 1.Wired Remote Controller Dimensions 120mm 18.5mm 46mm (4.7”) (0.7”) (1.8”) 83.5mm 123mm (3.3”) (4.8”) 62mm (2.4”) Fig 3-1 2.Wiring Connection Diagram Insert of the mainboard CN40 ----------------------------------- black black ----------------------------------- yellow yellow ----------------------------------- brown brown ----------------------------------- 4-Core Shield Cable, the length Wire controller Indoor unit mainboard is decided by installation...
  • Page 8 3. INSTALLATION METHOD 3.Wiring figure Display board Adapter board The connection CN101 cable 4-core shielding wire Fig 3-3(B) Model B:KJR-120G1/TFBG-E(5V) Install the Adapter Board and the Display Board on the High Wall (See the Appendix for instructions). Connect the female joint of the wires group from the adapter board with the male joint of theconnective wires group.
  • Page 9 3. INSTALLATION METHOD 4.Wire controller upper part Remove Insert a flat screwdriver into the slots in the lower part of the wire controller (2 places). Remove the upper part of the wire controller (Fig.3-4) NOTE: The PCB is mounted in the upper part of the wired controller.
  • Page 10 3. INSTALLATION METHOD For switch box mounting, fasten the back plate on the switch box with 2 screws (M4x25) and fasten it on the wall with 1 screw (M4x20). (Fig.3-6) Back plate Switch box Screw (M4×20) Screws (M4×25) Fig 3-6 NOTE: Place on a flat surface.
  • Page 11 3. INSTALLATION METHOD 7. Wire the indoor unit There are three methods: 1 from the rear; 2 from the bottom; 3 from the top; 4. Notch the part for the wiring to pass through with a nipper tool.
  • Page 12 3. INSTALLATION METHOD NOTE: DO NOT allow water to enter the remote control. Use the trap and putty to seal the wires. Putty Trap Putty Putty Trap Trap Fig 3-8 8. Reattach the wire controller’s upper part While adjusting and mounting the upper case, avoid clamping the wiring during installation.

  • Page 13: Appendix Install The Wire Controller Kit

    4. APPENDIX INSTALL THE WIRE CONTROLLER KIT 1. Open the front panel. 2. Disconnect the wire from the main controller board.
  • Page 14 4. APPENDIX INSTALL THE WIRE CONTROLLER KIT 3. Disconect the wire of the Wifi PCB (CN206)
  • Page 15 4. APPENDIX INSTALL THE WIRE CONTROLLER KIT 4. Connect the display borad to the adaptor board (1) 5. Connect the wire remote controler to the adaptor board (2)
  • Page 16 4. APPENDIX INSTALL THE WIRE CONTROLLER KIT 6. Place the adaptor board on the font panel...

  • Page 17: Specification

    5. SPECIFICATION DC 5V Input voltage 23~110℉(-5~43℃) Ambient temperature RH40%~RH90% Ambient humidity Wiring specifications Wiring type Total length Size <66 ft (20m) 0.029 in-0.74mm Shielded vinyl cord or cable (0.75-1.25mm ) <164 ft (50m)
  • Page 18 6. FEATURE AND FUNCTION OF THE WIRED CONTROLLER Feature: LCD display. Malfunction code display: displays the error code (helpful for servicing) 4-way wire layout design. Room temperature display. Weekly Timer Function: Copy/ Swing Timer Day off/Del Confirm Back/Turbo Follow me Mode: choose Auto-Cool-Dry-Heat-Fan ℃...

  • Page 19: Wired Controller Display

    7. WIRED CONTROLLER DISPLAY 8. Turbo/Auxiliary Heat function indicator 1. Operation mode indicator 2. Fan speed indicator 9. °C / °F indicator 3. Left-right swing indicator 10. Temperature display 4. Up-down swing indicator 11. Lock indicator 5. Faceplate function indicator 12.

  • Page 20: Wired Controller Buttons

    8. WIRED CONTROLLER BUTTONS Copy/ Swing Timer Day off/Del Confirm Back/Turbo Follow me Mode Fan speed (Lock) 1. Mode 6. Timer 2. Power 7. Day Off/Del 3. Adjust 8. Copy/Follow me 4. Fan Speed 9. Back/Turbo 5. Swing 10. Confirm...

  • Page 21: Preparatory Operation

    9. PREPARATORY OPERATION Set the current day and time Press TIMER for 3s or more. The timer displays flashes. Timer Press + or − to set the date. The selected date flashes. Date setting is complete and the time setting is ready after Timer pressing TIMER or if nothing is pressed in 10 seconds.

  • Page 22: Operation

    10. OPERATION To start/stop operation Press the Power button. To set the operation mode Operation mode setting Press MODE to set the operation mode. Mode (Heat function is invalid for cool only type unit) Room temperature setting Press + or − to set the room temperature. Indoor Setting Temperature Range: 62~86℉(17~30℃)/62~88℉(17~31℃(depending on models)).
  • Page 23 10. OPERATION Fan speed setting Press FAN SPEED to set the fan speed NOTE: This function is unavailable in the AUTO or DRY modes. Fan speed (Lock) Room temperature sensor selection Press FOLLOW ME to select whether the room temperature is detected at the indoor unit or at the wired controller.
  • Page 24 10. OPERATION Child lock function Press LOCK for 3 seconds to activate the CHILD LOCK feature and lock all buttons on the wired controller. Press again for 3 seconds Fan speed to deactivate. (Lock) NOTE: When the child lock function is activated, lock image appears.
  • Page 25 10. OPERATION Turbo/Auxiliary Heat function (on some models) Press TURBO to activate/deactivate the Turbo/Auxiliary • Back/Turbo Heat function. The turbo function sets the unit to reach the user’s present temperature in the shortest amount of time possible. When the user presses TURBO in the COOL mode, the •...
  • Page 26 10. OPERATION Swing function (For the unit with left & right auto swing function only) 1 Up-Down swing Swing Press the Swing button to start up-down swing function. Press it again to stop. When the Up-Down swing function is activated,the mark appears.
  • Page 27 10. OPERATION Swing function (For the unit without left & right auto swing function models) Up-Down airflow direction and swing Swing Use SWING to adjust the up and down airflow direction. 1.Every time the user presses SWING, the louver swings six degrees. 2.Press and hold SWING for 2 seconds, it changes to the UP−DOWN SWING mode.

  • Page 28: Timer Functions

    11. TIMER FUNCTIONS WEEKLY timer Use to set the operating times for each day of the week. On timer Use to start the air conditioner operation. The timer operates and the air conditioner operation starts after the time has passed. Off timer Use to stop the air conditioner operation.
  • Page 29 11. TIMER FUNCTIONS To set the On or Off TIMER Press Timer to select the Timer No display Press Confirm and the Clock display flashes Confirm ex.Off timer set at PM 6:00 Press + or − to set the time. After the time is set, the timer starts or stops automatically.
  • Page 30 11. TIMER FUNCTIONS To set the On and Off TIMER Press Timer to select the Timer Confirm Press Confirm and the Clock display flashes. Confirm Press the button + or - to set the On timer and then press Confirm. Press + or - to set the Off timer.

  • Page 31: Weekly Timer

    12. WEEKLY TIMER Weekly timer setting Press Timer to select the and press Confirm. Confirm Timer Day of the week setting Press + or − to select the day of the week Confirm and then press CONFIRM. ON timer setting of timer setting 1 Press + and −...
  • Page 32 12. WEEKLY TIMER IMPORTANT: Up to 8 scheduled events can be set on one day. Various events can be scheduled in either MODE, TEMPERATURE and FAN speeds. ex.Tuesday time scale 1 Time setting Press + and − to set the time then press Confirm CONFIRM.
  • Page 33 12. WEEKLY TIMER Fan speed setting Press + and − to set the fan speed then press Confirm CONFIRM. NOTE: This setting is unavailable in the AUTO, DRY or OFF modes. Different scheduled events can be set by repeating steps 3 through 7. Additional days, in a one week period, can be set by repeating steps 3 through 8.
  • Page 34 12. WEEKLY TIMER WEEKLY timer operation To start Press Timer to select the , and then the timer Timer starts automatically. To cancel Press Power to cancel the timer mode. The timer mode can also be canceled by changing the Timer timer mode using Timer.
  • Page 35 12. WEEKLY TIMER Press DAY OFF to create an off day. Day off/Del mark is hidden ex.The DAY OFF is set for Wednesday Set the DAY OFF for other days by repeating the steps 2 and 3. Back/Turbo Press BACK to revert to the weekly timer. ●...
  • Page 36 12. WEEKLY TIMER Copy/ Press COPY, the letters CY appear on the LCD. Follow me Press + or − to select the day to copy to. Press COPY to confirm. Copy/ Follow me mark flashes quickly ex. Copy the setting of Monday to Wednesday Other days can be copied by repeating steps 4 and 5.
  • Page 37 12. WEEKLY TIMER Delete the time scale in one day. During the weekly timer setting, Confirm press CONFIRM. Press + and − to select the day of the week Confirm and then press CONFIRM. Day off/Del Press + and − to select the setting time want to delete. The setting time, mode, temperature and fan speed appear on the LCD.

  • Page 38: Fault Alarm Handing

    13. FAULT ALARM HANDING If the system does not properly operate except in the aforementioned cases or the aforementioned malfunctions are evident, investigate the system according to the following procedures. DISPLAY MALFUNCTION AND PROTECTION DEFINITION DIGITAL TUBE Communication error between wired controller and indoor unit The faceplate is abnormal Please check the indoor unit’s error display and review the owner’s...
  • Page 39 The design and specifications are subject to change without prior notice for product improvement.Consult with the sales agency or manufacturer for details.
