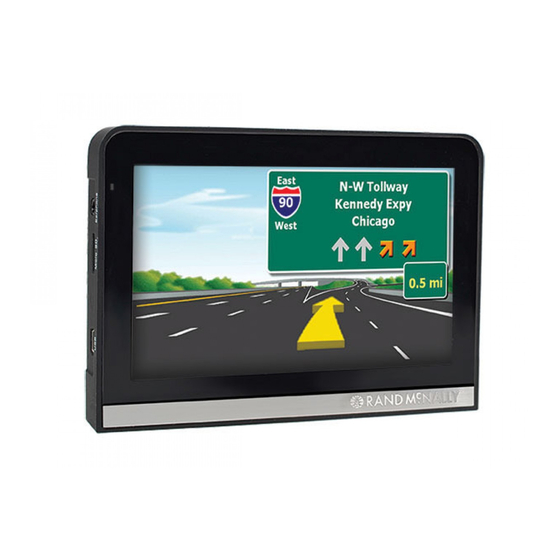

Rand McNally Intelliroute TND-510 Quick Start Manual

Overview
See Safety Information included with the device for
warnings and precautions.
NOTE: To maximize battery life, plug in and charge the
navigation unit for the first 2 hours of use.
Power Key
NOTE:
Use the
Reset button
(located on the
back of the device)
to restore factory
settings and restart
the device.
To Power the Device:
On
Press and hold the Power Key for two (2) seconds.
(Device powers on in 5 seconds.)
Off Press and hold the Power Key for five (5) seconds.
To Enter or Return from Standby Mode:
Press and release the Power Key.

Install the Mount

Note: Follow all local regulations governing the placement of
the mount.
Select an area with a line of sight to the sky and GPS satellites
to ensure reliable GPS information.
Clean and dry the mounting area.
1
Remove the suction cup protective film.
2
Adjust the angle and secure the cradle to the mount
3
using the thumbscrew.
Pull the suction cup lever up to release suction.
4
Place and hold the mount suction cup against the
5
mounting surface.
Press the suction cup lever down until it snaps into place.
6
Angle the bottom of the device into the cradle and press
7
the top of the device towards the cradle until you hear
the upper clip latch into place.
Plug the power cord into the device and the vehicle's
8
12-volt power source.
Enter Truck Information
Tap Truck Tools > Truck Info.
1
On the left,
tap on an
option
Tap and
2
Tap the option button to be changed.
3
Enter new truck information settings.
4
Tap Back to save changes.
5
View Timers and Logs
Countdown timers are controlled by the Driver Status (Driving,
On Duty, or Off Duty) selected on the Main Menu.
Tap Truck Tools.
1
Tap Timers and Logs.
2
Quick Start Guide
Battery Power Indicator
Bright Red: Device is plugged
in and the battery is charging.
Bright Green: Device is
plugged in and the battery
is fully charged.
Light Green: Device is
in Standby Mode.
On the right,
enter settings
for the option
to view all options.

Main Menu

8
1
5
Enter truck information and access truck-specific use tools.
1
Show location on the map and view navigation instructions.
2
Change driver status.
3
Choose a destination.
4
Select TND and route preferences.
5
6 Mute/unmute the speaker.
7 Adjust speaker volume.
GPS Signal Indicator
8
Adjust the navigation device so that it can be easily seen
9
and does not block the driver's line of sight.
Note: Do not place
the mount in an airbag
deployment area.
Tap the Timers tab to view timers,
3
odometer readings, and times.
Tap the Logs tab to view a list of mileage logs by quarter.
4
Tap on a quarter to view individual logs by state.
5
3
2 4
6
7
