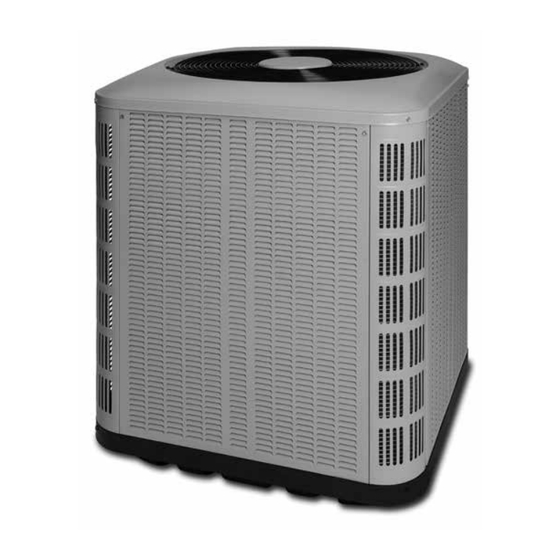

Single phase split system air conditioner

Advertisement

Quick Links

SPLIT SYSTEM AIR CONDITIONER
INSTALLATION INSTRUCTIONS
*SA(1,2)BD4M1 SERIES - (S,R)N18K, (S,R)N24KA, (S,R)N30K, (S,R)N36K, SN42K, SN48K,
& SN60K (1.5, 2, 2.5, 3, 3.5, 4, & 5 TON) - SINGLE PHASE MODELS
IMPORTANT SAFETY INFORMATION .................. 2
AIR CONDITIONER INSTALLATION ..................... 3
General Information ............................................... 3
Before You Install this Unit ..................................... 3
Locating the Air Conditioner ................................... 3
Packaging Removal ............................................... 3
Ground Level ......................................................... 3
Roof Mount ............................................................ 3
Indoor & Outdoor Unit ............................................ 4
ELECTRICAL WIRING ........................................... 4
Pre-Electrical Checklist .......................................... 4
Line Voltage ........................................................... 4
Grounding .............................................................. 5
Diagnostics Module ...................... 5
(Select Models Only) .............................................. 5
24 VAC Power Wiring .......................................... 5
Thermostat Demand Wiring ................................. 5
Interpreting the Diagnostic LED's ........................ 5
LED Description ................................................... 5
Thermostat Connections ........................................ 6
AIR CONDITIONER MAINTENANCE ..................... 6
Panel Removal ....................................................... 6
Panel Installation .................................................... 6
It is your responsibility to know this product better than your customer. This includes being able to install the product
according to strict safety guidelines and instructing the customer on how to operate and maintain the equipment for
the life of the product. Safety should always be the deciding factor when installing this product and using common
sense plays an important role as well. Pay attention to all safety warnings and any other special notes highlighted in
the manual. Improper installation of the unit or failure to follow safety warnings could result in serious injury, death,
or property damage.
These instructions are primarily intended to assist qualified individuals experienced in the proper installation of this
appliance. Some local codes require licensed installation/service personnel for this type of equipment. Please read all
instructions carefully before starting the installation. Return these instructions to the customer's package for future
reference.
DO NOT DESTROY. PLEASE READ CAREFULLY & KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
START UP & ADJUSTMENTS ............................... 7
Pre-Start Check List ............................................... 7
Start-Up Procedures .............................................. 7
Air Circulation - Indoor Blower ............................. 7
System Cooling .................................................... 7
System Heating (optional) ................................... 7
REFRIGERANT CHARGING .................................. 7
Charging the Unit in AC mode ............................... 8
or higher: .............................................................. 8
degrees F: ............................................................ 8
ELECTRICAL DIAGRAMS & TABLES .................. 9
Figure 5. Wiring Diagram for *SA(1,2)BD4M
Figure 6. Wiring Diagram for *SA(1,2)BD4M1RN
Table 1. Comfort Alert LED Diagnostics .............. 11
Table 2. Module Wiring Troubleshooting ............. 12
INSTALLATION CHECKLIST ................................. 16
REPLACEMENT PARTS ........................................ 16
IMPORTANT
ATTENTION INSTALLERS:
(1.5, 2, 2.5, 3, 3.5, 4, & 5 Ton Units) .... 9
(1.5, 2, 2.5, & 3 Ton Units) .................... 10
13 SEER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN42K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nortek SN42K

  • Page 1: Table Of Contents

    SPLIT SYSTEM AIR CONDITIONER 13 SEER INSTALLATION INSTRUCTIONS *SA(1,2)BD4M1 SERIES - (S,R)N18K, (S,R)N24KA, (S,R)N30K, (S,R)N36K, SN42K, SN48K, & SN60K (1.5, 2, 2.5, 3, 3.5, 4, & 5 TON) - SINGLE PHASE MODELS IMPORTANT SAFETY INFORMATION ....2 START UP & ADJUSTMENTS ....... 7 Pre-Start Check List ..........
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING: INSTALLER: Please read all instructions before servicing this equipment. Pay attention to all safety warnings and any The information listed below must be followed other special notes highlighted in the manual. Safety markings during the installation, service, and operation are used frequently throughout this manual to designate a of this unit.
  • Page 3: Air Conditioner Installation

    AIR CONDITIONER INSTALLATION Packaging Removal NOTE: To prevent damage to the tubing connections, carefully General Information remove the carton and user’s manual from the equipment. The *SA(1,2)BD4M series air conditioner is designed only Discard the shipping carton. for outdoor rooftop or ground level installations. This unit has been tested for capacity and efficiency in accordance Ground Level with AHRI Standards and will provide many years of safe...
  • Page 4: Connecting Refrigerant Tubing Between The Indoor & Outdoor Unit

    ELECTRICAL WIRING Connecting Refrigerant Tubing Between the Indoor & Outdoor Unit WARNING: CAUTION: To avoid risk of electrical shock, personal When servicing, cover or seal openings to injury, or death, disconnect all electrical power minimize the exposure of the refrigerant system to the unit before performing any maintenance to air to prevent accumulation of moisture and or service.
  • Page 5: Grounding

    the equipment. Use proper code agency listed conduit and NOTE: This module does not provide safety protection! The a conduit connector for connecting the supply wires to the Comfort Alert Diagnostics Module is a monitoring device unit. Use of rain tight conduit is recommended. and cannot control or shut down other devices.
  • Page 6: Thermostat Connections

    Thermostat Connections Panel Removal • Thermostat connections should be made in accordance 1. Remove screws securing the panel. with the instructions supplied with the thermostat and the 2. Slide the panel up towards the top pan in order to clear indoor equipment.
  • Page 7: Start Up & Adjustments

    REFRIGERANT CHARGING START UP & ADJUSTMENTS Pre-Start Check List WARNING: √ Verify the indoor unit is level and allows proper condensate drainage. √ Verify the outdoor coil and top of the unit are free from *SA(1,2)BD4M Split System Air Conditioners obstructions and debris, and all equipment access/control are shipped charged with R410A refrigerant panels are in place.
  • Page 8: Charging The Unit In Ac Mode

    Charging the Unit in AC mode If the outdoor temperature is 65 degrees F or higher: After completing the refrigerant line connections, leak checking the system, and evacuating the indoor section and all line connections (using proper methods), perform the following steps: 1.
  • Page 9: Electrical Diagrams & Tables

    ELECTRICAL DIAGRAMS & TABLES WIRING DIAGRAM Split System Air Conditioner (Outdoor Section) Single Phase NOTES: 1. Disconnect all power before servicing. 1. Couper le courant avant de faire letretien. 2. For supply connections use copper conductors only. 2. Employez uniquement des conducteurs en cuivre. 3.
  • Page 10 WIRING DIAGRAM Split System Air Conditioner (Outdoor Section) Single Phase NOTES: 1. Disconnect all power before servicing. 1. Couper le courant avant de faire letretien. 2. For supply connections use copper conductors only. 2. Employez uniquement des conducteurs to “H” on 3.
  • Page 11 Status LED Status LED Description Status LED Troubleshooting Information POWER Module has power Supply voltage is present at module terminals (Green LED) • Compressor protector is open • Check for high head pressure • Check compressor supply voltage Thermostat demand signal Y TRIP •...
  • Page 12 Status LED Status LED Description Status LED Troubleshooting Information • Run capacitor has failed ALERT • Open circuit in compressor start wiring or connections Open Start Circuit Flash Code 6 — Check wiring and connectors between supply and the compressor S terminal Current only in run circuit (Yellow LED) •...
  • Page 16: Installation Checklist

    Stage-1 Suction Pressure (low side): Fan Motor COMPONENTS: Blower Assembly Fan Grille Cabinet Panels Filter/Driers Expansion Valves Specifications & illustrations subject to change without notice or incurring obligations (05/20). 10332310 O’Fallon, MO, © Nortek Global HVAC LLC 2020. All Rights Reserved. (Replaces 10252440)
