- Page 1 Inspiron 3268 Setup and Specifications Computer Model: Inspiron 3268 Regulatory Model: D13S Regulatory Type: D13S002...
- Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Memory ................15 Ports and connectors ................... 15 Media-card reader ..................16 Communications ......................16 Audio ....................16 Storage ...................17 Power ratings ......................17 Video ................17 Computer environment Getting help and contacting Dell........18 .................. 18 Self-help resources ..................18 Contacting Dell... -
Page 4: Set Up Your Computer
Set up your computer Connect the keyboard and mouse. See the documentation that shipped with the keyboard and mouse. Connect the network cable — optional. - Page 5 Connect the display. Connect the power cable.
- Page 6 Press the power button.
- Page 7 Finish operating system setup. For Windows: a) Connect to a network. b) Sign-in to your Microsoft account or create a new account. For Ubuntu: Follow the instructions on the screen to finish setup.
- Page 8 Locate Dell apps in Windows. Table 1. Locate Dell apps Register your computer Dell Help & Support SupportAssist—Check and update your computer...
-
Page 9: Views

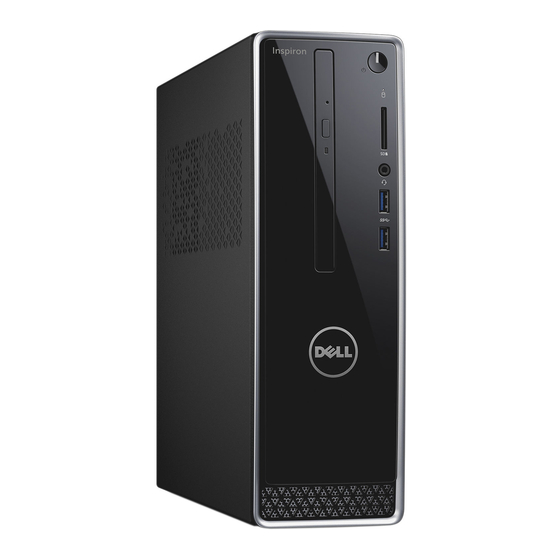

Views Front Optical drive (optional) Reads from and writes to CDs and DVDs. Optical-drive eject button Press to open or close the optical drive tray. Power button Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. - Page 10 Press and hold for 4 seconds to force shut-down the computer. NOTE: You can customize the power-button behavior in Power Me and My Dell at Options. For more information, see www.dell.com/ support/manuals. Hard-drive activity light Turns on when the computer reads from or writes to the hard drive.
-
Page 11: Back
Back Back panel Connect USB, audio, video, and other devices. Expansion-card slots Provide access to ports on any installed PCI Express cards. Power port Connect a power cable to provide power to your computer. Power-supply diagnostic light Indicates the power-supply state. Security-cable slot Connect a security cable to prevent unauthorized movement of your computer. -
Page 12: Back Panel
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Padlock rings Attach a standard padlock to prevent unauthorized access to the interior of your computer. - Page 13 Connectperipherals such as storage devices and printers. Provides data transferspeeds up to 480 Mbps. Network port (with lights) Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or internet access. The two lights next to the connector indicate the connectivity status and network activity.
-
Page 14: Specifications
4.40 kg (9.70 lb) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. System information Table 3. System information Computer model Inspiron 3268 Processor • Intel Core i3/i5/i7 • Intel Celeron • Intel Pentium... -
Page 15: Ports And Connectors
• 2400 MHz (Intel Pentium and Intel Core i3/i5/i7) Configurations supported 2 GB, 4 GB, 6GB, 8 GB, 10 GB, 12 GB, and 16 GB Ports and connectors Table 5. Ports and connectors External: Network One RJ45 port • Four USB 2.0 ports •... -
Page 16: Communications
• SD High Capacity (SDHC) card • SD Extended Capacity (SDXC) card • MultiMediaCard (MMC) • MultiMediaCard Plus (MMC Plus) Communications Table 7. Supported Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless • Up to Wi-Fi 802.11ac/n •... -
Page 17: Power Ratings
Power ratings Table 10. Power ratings Input voltage 100 VAC to 240 VAC Input frequency 50 Hz to 60 Hz Input current (maximum) 3.0 A Video Table 11. Video specifications Integrated Discrete Controller Intel HD Graphics NVIDIA GeForce GT710LP Memory Shared system memory 2 GB DDR3 Computer environment... -
Page 18: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 13. Self-help resources Information about Dell products and www.dell.com services Dell Help & Support app Get started app... - Page 19 NOTE: Availability varies by country and product, and some services may not be available in your country. NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
