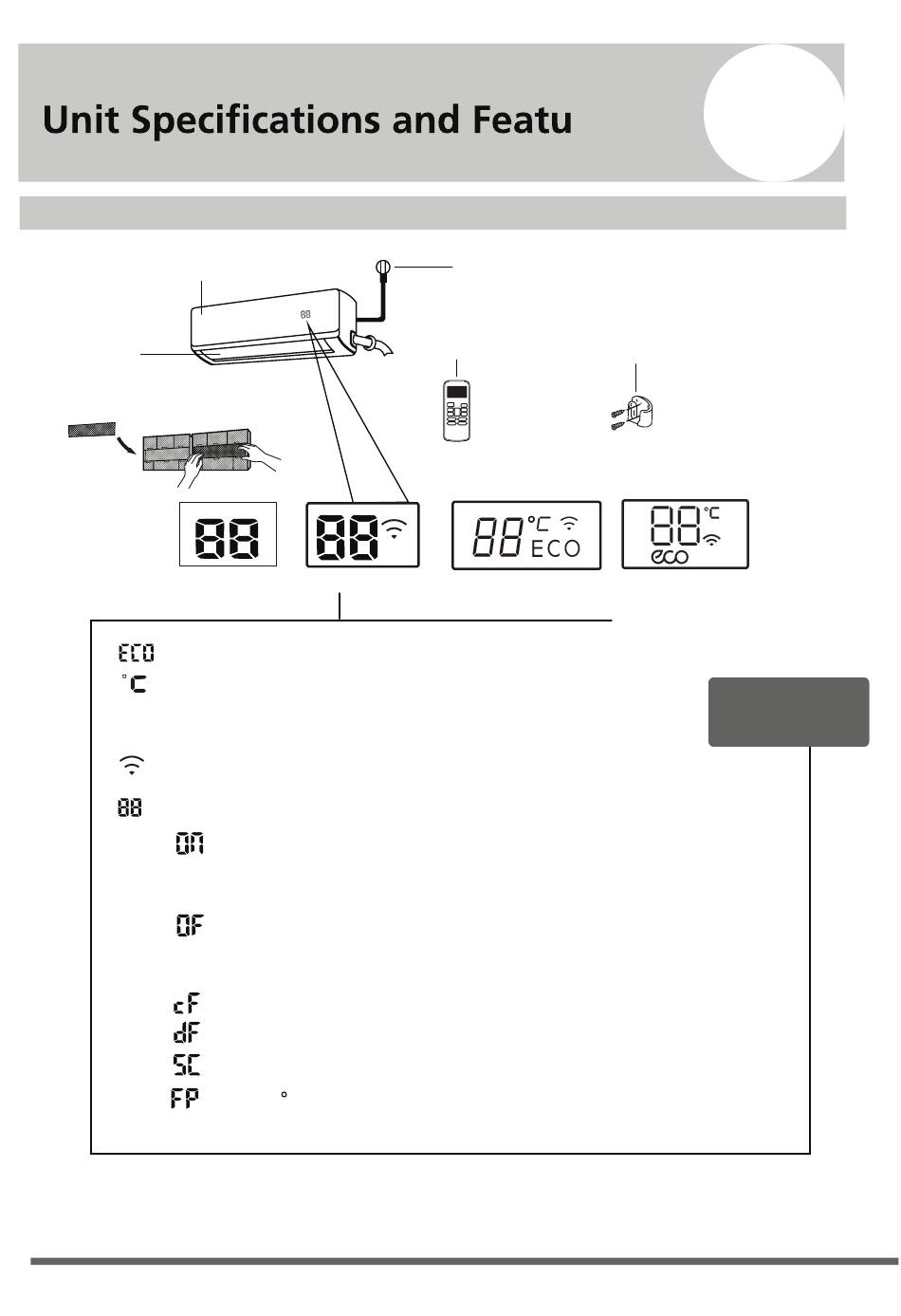

Indoor unit display

Front Panel
Louver
Functional Filter
(On Back of Main Filter - Some Units)
Display window
" " when ECO function is activated (not available)
" " Lights up in different colour according to the operation
mode(some units):
Under COOL and DRY mode, it displays as cool colour.
Under HEAT mode, it displays as warm colour.
" " when Wireless Control feature is activated
" " Displays temperature, operation feature and Error codes:
"
• TIMER ON is set
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned on
"
• TIMER OFF is set
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned off
"
"
"
"
ƒPage 6 Page 6
„
(B)
(A)
" for 3 seconds when:
" for 3 seconds when:
" when anti-cold air feature is turned on
" when defrosting
" when unit is self-cleaning
" when 8 C heating feature is turned on
res
Power Cable (not available)
Remote Control Holder
Remote Control
(C)
1
(D)
Display Code
Meanings
Page 6
