- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 202701Q (B1-B3) Storage Bed Queen REVISION 0 : 07/11/2012 REVISION 1 : 03/19/2013 COASTERFURNITURE.COM REVISION 2 : 01/09/2017 PAGE 1 OF 12 REVISION 3 : 12/16/2020...
-
Page 2: Assembly Tips
202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately. 2. This product is for home use only and not intended for commercial establishments. HARDWARE IDENTIFICATION Z-B1 (BOX 1) - HARDWARE PACK IS LOCATED IN 202701Q (B1) FLAT HEAD SCREW 40PCS (M4 x 32mm - RBW) - Page 4 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS RIGHT STEP 1 LEFT **BACK VIEW** WARNING! Install the bolts by following the arrows shown.After all Note : Please put item on soft surface. bolts been installed inside Note : Please take note of the marking the hole,please tighten sticker (L&R) on the leg.
- Page 5 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS MARKING POINT STEP 3 STICKER 'R' DOOR STICKER 'R' STICKER 'L' BOTTOM MARKING POINT STEP 4 PAGE 5 OF 12 COASTERFURNITURE.COM...
- Page 6 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 5 REMARK: MAKE SURE THE BOTTOM SURFACE OF THE BED SLAT SUPPORT (J) IS ALIGNED WITH THE EDGE OF THE BOTTOM CROSS RAIL (M) PAGE 6 OF 12 COASTERFURNITURE.COM...
- Page 7 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 6 STEP 7 REMARK: DO NOT FULLY TIGHTEN THE BOLT AT THIS STEP PAGE 7 OF 12 COASTERFURNITURE.COM...
- Page 8 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 8 REMARK: DO NOT FULLY TIGHTEN THE BOLT AT THIS STEP REMARK: MAKE SURE THE DRAWER GLIDE WITH RAIL (E) IS CENTER AGAINST THE CUT OUT ON THE WOOD CLEAT AND ALSO TOUCHING IT BEFORE FASTEN USING SCREW (1).
- Page 9 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 9 REMARK: DO NOT FULLY TIGHTEN THE BOLT AT THIS STEP REMARK: MAKE SURE THE DRAWER GLIDE WITH RAIL (E) IS CENTER AGAINST THE CUT OUT ON THE WOOD CLEAT AND ALSO TOUCHING IT BEFORE FASTEN USING SCREW (1).
- Page 10 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 10 REMARK: DO NOT FULLY TIGHTEN THE BOLT AT THIS STEP 10.1 10.2 PAGE 10 OF 12 COASTERFURNITURE.COM...
- Page 11 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 11 11.1 11.2 BOTTOM REMARK: MAKE SURE ALIGN THE CONCEALED PANEL AT BOTTOM AND TOP OF LAST TWO SLAT AS DIAGRAM SHOWN. STEP 12 REMARK: REFER TO THE "TOP" & "BOTTOM" LABEL ON DRAWER PRIOR TO START OF ASSEMBLY.
- Page 12 202701Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS REMARK: IF THE DRAWER IS NOT ALIGNED, PLEASE DO THE BELOW ADJUSTMENT: 1) To align the drawer up or down Action : Adjust the drawer frame (G) to up or down. REMARK: 2) To align the drawer left or right.
- Page 13 202701Q (B1-B3) ITEM: INNER SIZE: 60.82" x 81" INNER SIZE OF DRAWER : 23.22" x 12.67"x4.17" 8.66" 62.72" 27.95" " 55.90 " " 58.38 " 27.95 " 62.63 " 22.44 " 81.10 90.55" 3.18" " 58.30 Note : Dimension tolerence ± 5% PAGE 6 OF 6 COASTERFURNITURE.COM...
Need help?
Do you have a question about the 202701Q and is the answer not in the manual?
Questions and answers

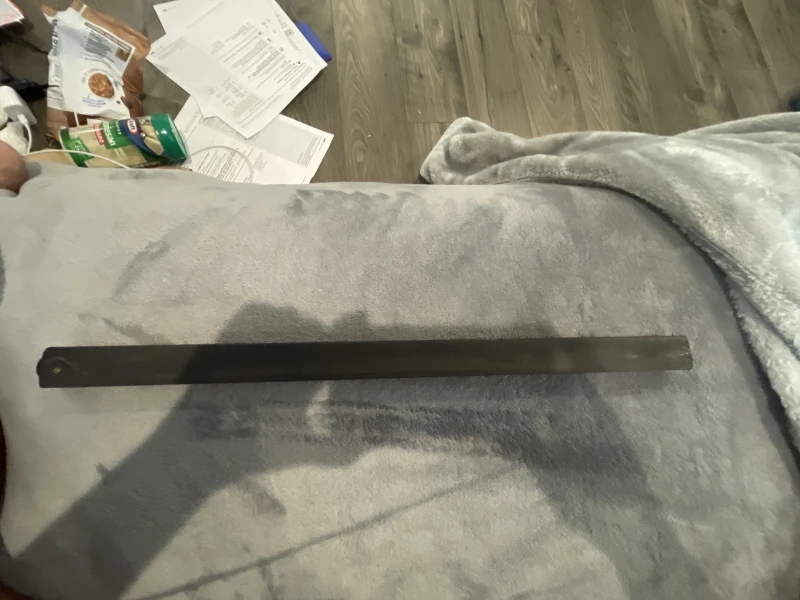

I wanted to know where I could get a replacement slat which is J in the manual
