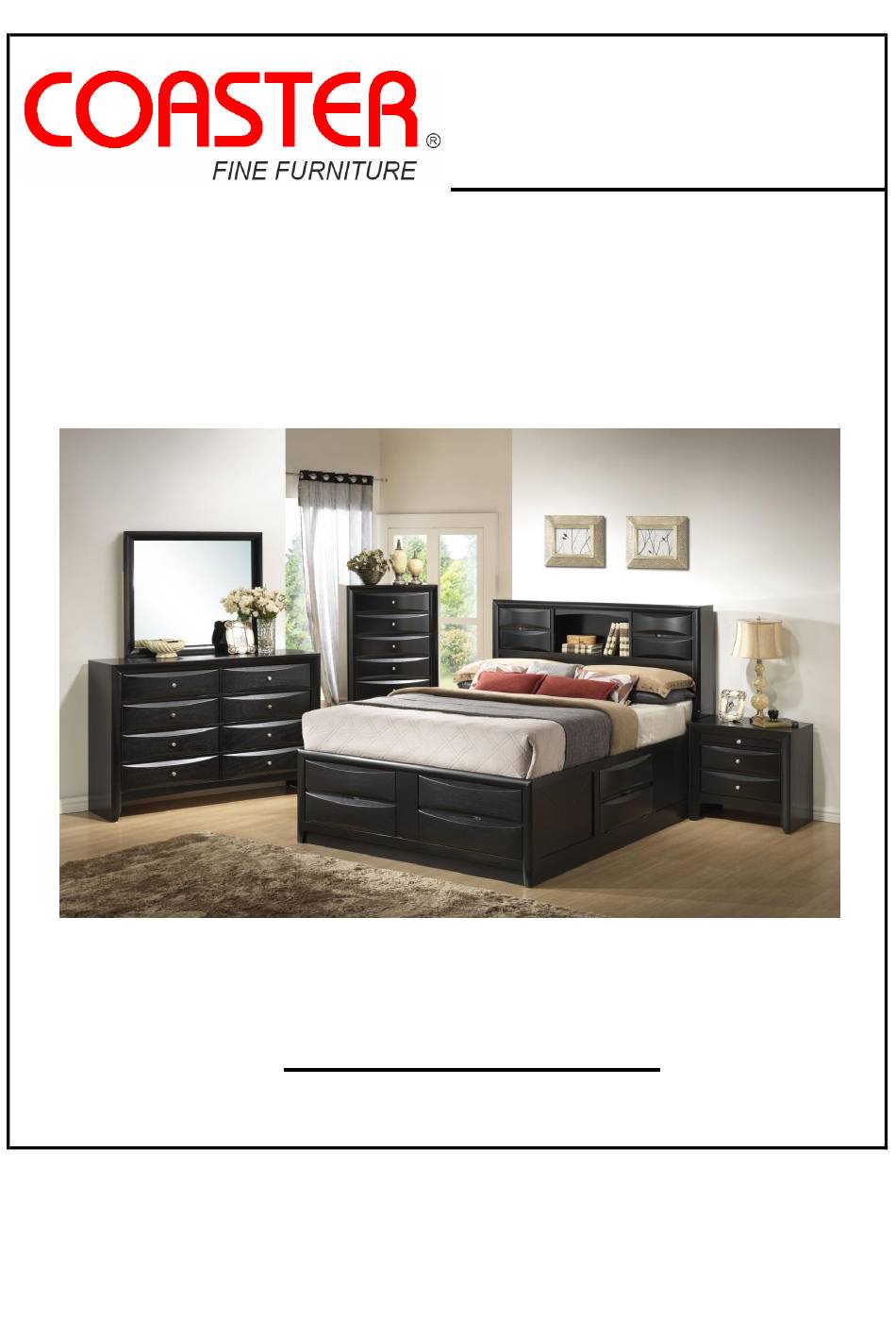

- Page 1 202701KE ( B1 - B3 ) EASTERN KING SIZE STORAGE BED ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE www.coastercompany.com PAGE 1 OF 12 REVISION 0 : 07/11//2012 REVISION 1 : 03/19//2013...
-
Page 2: Parts Identification
202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly. Warning! 1. -
Page 3: Hardware Identification
202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly. Warning! 1. - Page 4 202701KE (B1 - B3) ITEM : ASSEMBLY INSTRUCTIONS 202701KE (B1) - BOX 1 STEP 1 : Place headboard upside down on soft surface.Align and fasten STEP 2 : Align and fasten triangle support panel (L) to headboard (A) headboard leg (B) & (C) to headboard (A) using flat washer (6), and headboard leg (B) &...
- Page 5 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS 202701KE ( B2 ) - BOX 2 STEP 4 : Place the bed rail (N) upside down on soft surface.Arrange the hinge (8) according to the alphabet on the hinge and the door then align the screw holes on the hinge with the pre-drilled holes on the door and bed rail (N) and fasten using short flat head screw (9) and tighten with screw driver (not included).
- Page 6 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS STEP 6 : Align and fasten bottom cross rail (M) to bed slat support (J) using pan head screw (2) and tighten with screw driver (not included) then place it into the bed. REMARK : MAKE SURE THE BOTTOM SURFACE OF THE BED SLAT SUPPORT (J) IS ALIGNED WIITH THE EDGE OF THE BOTTOM CROSS RAIL (M).
- Page 7 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS STEP 7 : Align and fasten drawer frame support (K) to drawer frame (G) using flat washer (6),lock washer (5) and short bolt (3) and tighten with Allen wrench (7). STEP 8 : Align and fasten drawer frame (G) to bed rail (N) using flat washer (6), lock washer (5) and short bolt (3) and tighten with Allen wrench (7).
- Page 8 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS STEP 9 : 9.1 : Align and fasten drawer glide with rail (E) to bottom rail of footboard (D) using flat head screw (1) and tighten with screw driver (not included). 9.2 : Fasten drawer glide (E) to bottom rail of drawer frame (G) using flat washer (6),lock washer (5) and short bolt (3) and tighten with Allen wrench (7).
- Page 9 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS STEP 10 : Repeat Step 9 for fastening the drawer glide with rail (E) to center rail of footboard (D) and top rail of drawer frame (G). REMARK : DO NOT FULLY TIGHTEN THE BOLT AT THIS STEP. REMARKS : MAKE SURE THE DRAWER GLIDE WITH RAIL (E) IS CENTER AGAINST THE CUT OUT ON THE WOOD CLEAT AND ALSO TOUCHING IT BEFORE...
- Page 10 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS STEP 11 : 11.1 : Place the roll slat (F) onto the bed rail towards the headboard.Align and fasten the 2nd slat (F) to the center rail (O) and the 1st bed slat support (J) (count from the headboard) using long bolt (4) and tighten with Allen wrench (7) 11.2 : Then fasten the bottom cross rail (M) to the bed rail (N) using pan head screw (2) and tighten with screw driver (not included).
- Page 11 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS STEP 12 : Place the conceal panel (H) underneath the last slat towards footboard. Align and fasten the bed slat to bed rail using flat head screw (1) and tighten with screw driver (not included). ...
- Page 12 202701KE ( B1 - B3 ) ITEM : ASSEMBLY INSTRUCTIONS REMARK : If the drawer is not aligned,please do the below adjustment : 1) To align the drawer up or down Action : Adjust the drawer frame (G) to up or down. REMARK : 2) To align the drawer left or right.
