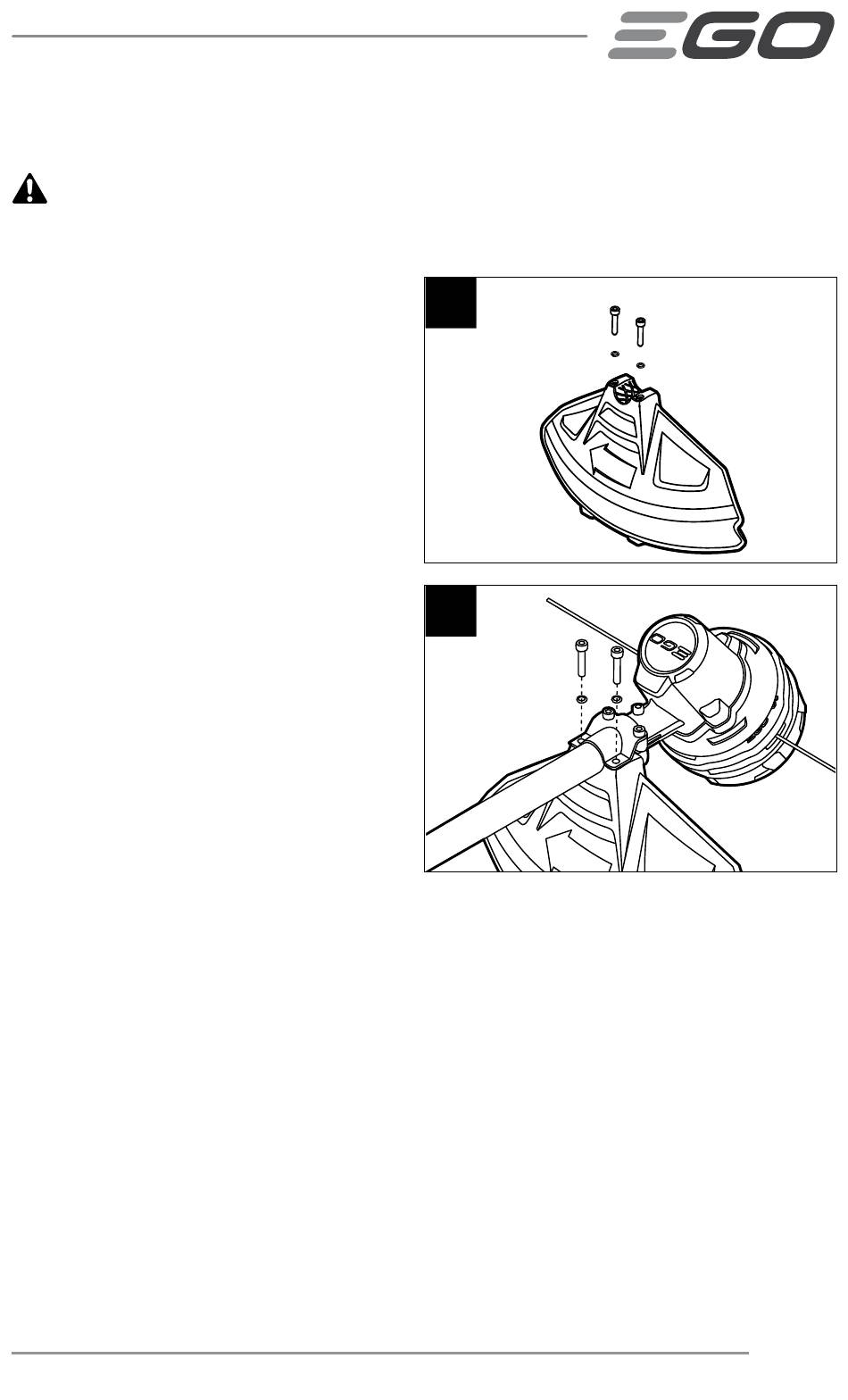

MOUNTING THE GUARD
WARNING:
of the blade on the guard and protect your hands from being injured by the blade.
1. Remove the battery pack from the
trimmer.
2. Loosen the two bolts in the guard
with the supplied hex wrench;
remove the bolts and spring
washers from the guard (Fig. 4).
3. Lift the trimmer head and face it
downward; align the two mounting
holes in the guard with the two
assembly holes in the base of the
shaft. Make sure that the internal
surface of the guard faces towards
the trimmer head (Fig. 5).
4. Lock the guard in place with the two
bolts and the supplied hex wrench.
Always wear gloves when mounting or replacing the guard. Be careful
56-VOLT LITHIUM-ION CORDLESS 15" STRING TRIMMER
4
5
