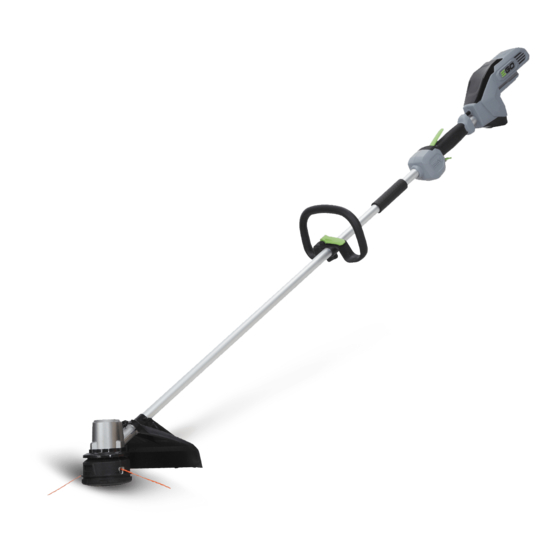

LINE TRIMMER

OPERATOR'S MANUAL
56 VOLT LITHIUM-ION
CORDLESS BRUSHLESS
LINE TRIMMER
MODEL NUMBER ST1500E
WARNING: To reduce the risk of injury, the user must read and understand the
Operator's Manual before using this product. Save these instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST1500E and is the answer not in the manual?

Questions and answers

Related Manuals for EGO ST1500E

Summary of Contents for EGO ST1500E

  • Page 1: Line Trimmer

    LINE TRIMMER OPERATOR'S MANUAL 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER MODEL NUMBER ST1500E WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.

  • Page 2: Table Of Contents

    Parts List ......... . . 35-36 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 3: Read All Instructions

    WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 4: Safety Symbols

    We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 5: Safety Instructions

    15m away from the line trimmer when it is in use. Ensure that other people and pets remain at Keep Bystanders Away least 15m away from the line trimmer when it is in use. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 6 Watt Power Minutes Time Alternating Current Type of current Direct Current Type or a characteristic of current No-Load Speed Rotational speed, at no load ... /min Per Minute Revolutions per minute 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 7: Important Safety Instructions

    Never operate the machine with damaged guards or shields or without guards or shields in place. ◾ ◾ Switch on the motor only when the hands and feet are away from the cutting means. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 8: Maintenance And Storage

    Use the Right Tool– Do not use the tool for any job except that for which it is intended. ◾ ◾ Don’t Force the Trimmer – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 9 Do not operate with a broken guard or spool. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 10 ◾ ◾ Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 11: Save These Instructions

    ◾ ◾ Always wear substantial footwear and long trousers while operating the machine. ◾ ◾ Always be sure of the footing on slopes and to walk, never run. SAVE THESE INSTRUCTIONS! 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 12: Introduction

    Should you experience any problem you cannot easily remedy, please contact EGO customer service center 1300 000 EGO (1300 000 346). This manual contains important information on the safe assembly, operation and maintenance of your line trimmer.

  • Page 13: Assembly

    Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool. ◾ ◾ If any parts are damaged or missing, please return the product to the place of purchase. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 14 Make sure the internal surface of the guard faces towards the trimmer head (Fig. 2). 4. Lock the guard in place with the bolts and the M5 hex wrench (Fig. 3). 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 15 4. Insert the clamping block into the slot of the front-assist handle, and push it in place, as shown in Fig. 6. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 16 When the guard was fixed, never attempted to remove or adjust the guard, if replace needed, it shall be performed by a qualified service technician! 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 17: Packing List

    PACKING LIST PART NAME QUANTITY Line Trimmer Guard Front-assist handle assembly M5 Hex wrench Operator’s manual 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 18: Description

    Before use of this product, familiarize yourself with all operating features and safety rules. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 19 Steel blade on the guard keeps the cutting line at the proper length. BATTERY RELEASE BUTTON Press to release the battery pack from the tool. LATCH Locks the battery pack when installing it on the tool. EJECTION MECHANISM Aids in battery removal. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 20: Operation

    Mounting Slot position. NOTE: Make sure that the latch on the line trimmer snaps into place and the battery pack is secured to the tool before beginning operation. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 21 ◾ ◾ The trimmer head is parallel to the ground and easily contacts the material to be cut without the operator having to bend over (Fig. 13). 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 22 15m away; there still may be risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the motor and cutting attachment immediately. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 23 Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean cloths to remove dirt, dust, oil, grease, etc. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 24 Wire and picket fences can cause extra line wear or breakage. Stone and brick walls, curbs, and wood may wear lines rapidly. ◾ ◾ Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the lines. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 25: Line Replacement

    Never use metal-reinforced line, wire, rope, etc. These can break off and become dangerous projectiles. There are two methods to replace the cutting line: 1. Wind the spool with new line. 2. Install a pre-wound spool. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 26 (Fig. 20). 6. Wind the line, in two even and tight Wind Direction layers, onto the spool. Wind the line in the direction indicated on the spool (Fig. 20). 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 27 8. Align the notches of the spool from which the lines protrude with the eyelets in the spool retainer and position the spool in the retainer (Fig. 22). Notch Notch Eyelet Eyelet 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 28 2. Remove the spool. Use a clean cloth to clean the inner surface of the spool retainer and spool base. 3. Check the spool retainer, spool and spool base for wear. If necessary, replace the wear parts. 4. Place a pre-wound spool on the spool retainer. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 29: Maintenance

    Use a small brush or the air discharge of a small vacuum cleaner brush to clean the air vents on the shaft. ◾ ◾ Keep the air vents free of obstructions. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 30 Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 31: Troubleshooting

    67°C. ◾ ◾ ◾ ◾ The battery pack is Re-install the battery pack. disconnected from the tool. ◾ ◾ ◾ ◾ The battery pack is Charge the battery pack. depleted. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 32 The line-cutting blade on Sharpen the line-cutting blade with a Line is not cutting the edge of the guard has file or replace it with a new blade. well. become dull. 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...

  • Page 33: Warranty

    5 year limited warranty on EGO outdoor power equipment and 3 year limited warranty on EGO Power+ System battery packs and chargers. Please contact EGO customer service on 1300 000 EGO (1300 000 346) any time you have questions or warranty claims.

  • Page 34: Warranty

    Chervon Australia Pty Ltd, Unit 13, 1488 Ferntree Gully Rd, Knoxfield, VIC. 3180. Phone Number: 1300 000 EGO (1300 000 346). Email address: support@egopowerplus.com.au...

  • Page 35: Parts List

    MODEL NUMBER ST1500E The Model Number will be found on the Nameplate attached to the housing of the line trimmer. Always mention the Model Number when ordering parts for this tool. EXPLODED VIEW 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
  • Page 36 3800103000 Cutting line 2824087000 Spool assembly 2824022000 Bump knob 3660582000 Compression spring 5650349000 Washer 2824082000 Spool base 2824021000 Trimmer head assembly 2824010000 Hexagon nut set (for trimmer head) 2824020000 Front-assist handle assembly 56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E...
