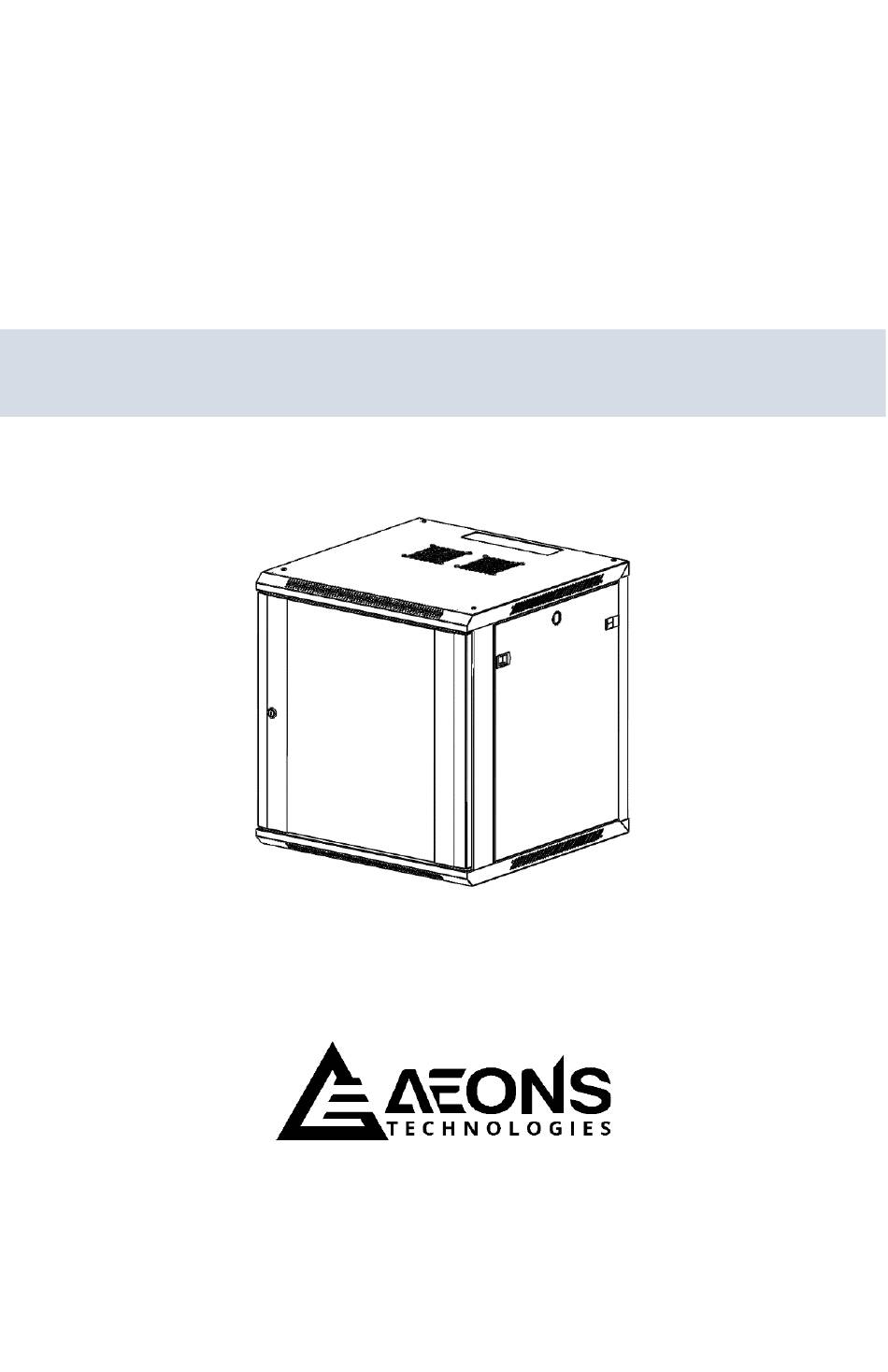

Owner's Manual
Rev. 2.5
Professional Series Wall-Mounted Enclosure
Models: 6U, 9U, 12U, 15U, 18U, 22U
Applied to Model Series: Pxx06, Pxx09, Pxx12, Pxx15, Pxx18, Pxx22
1644 N Maple Street, Corona, CA 92880
www.aeonstech.com/support
Copyright © 2020 Aeons LLC. All rights reserved.
aeonstech.com
support@aeonstech.com
*actual product may vary from picture
Advertisement
Table of Contents
Related Manuals for AEONS Technologies Professional Series
Summary of Contents for AEONS Technologies Professional Series
- Page 1 Owner’s Manual support@aeonstech.com Rev. 2.5 Professional Series Wall-Mounted Enclosure Models: 6U, 9U, 12U, 15U, 18U, 22U Applied to Model Series: Pxx06, Pxx09, Pxx12, Pxx15, Pxx18, Pxx22 *actual product may vary from picture 1644 N Maple Street, Corona, CA 92880 www.aeonstech.com/support...
- Page 2 Overview Thank you for purchasing the AEONS enclosure product. The AEONS Professional series enclosures accommodate all standard 19-inch rackmount equipment. They feature premier quality, heavy-duty cabinets in various U sizes for quick and easy deployment.
- Page 3 Parts Identification ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Side Frame G. L Bracket H. Mounting Rail Top Cover ○ Bottom K. Front Door Side Panel ○ M. Back Panel ○ N. Vents O. Cable Access Cover P.
- Page 4 Assembly Steps ○ ○ ○ ○ ○ Step 1: Install Mounting Rail and L Bracket ○ ○ Install the vertical Mounting Rails to the Side Frame ○ at the desired depth using M5.5 self-tapping screw provided in the kit. Repeat on other Side Frame. ○...
- Page 5 Step 2: Install Bottom and Top Cover ○ ○ Lay Bottom Panel on a flat surface. Insert ○ Side Frames with large beam oriented to the front and secure with M5.5 self-tapping ○ ○ screws Repeat step to secure ○ Top Cover to Side Frames.
- Page 6 Step 4: Install Side Panel Alight the pins at the bottom of Side ○ Panel to the slots of cabinet frame. ○ Click the Side Panels into cabinet frame using the latch on either side. ○ ○ ○ Spring Pin ○...
- Page 7 Wall Mounting the Enclosure: Mount the Enclosure using keyhole cutouts on the frame of the enclosure. Note: Enclosure must be installed by a qualified technician. Before mounting, use a level and tape measure to position your mounting area precisely. Use appropriate fasteners (not included) to secure the enclosure to the wall.
- Page 8 Technical Support Thank you for purchasing the Aeons product. We intend this manual to guide you through a smooth installation. Aeons assumes that you are qualified in the servicing of IT equipment and trained in recognizing any hazards that may occur in the installation of this product. Our lifetime technical support is an integral part of our commitment to provide industry-leading solutions.
