Owner's Manual
Rev. 2.5
19" Wall Mounted Equipment Enclosure
Important Safety Instructions:
This manual contains instructions and warnings that must be followed during the installation and
operation of the product described in this manual. Failure to comply may invalidate the warranty and
cause property damage or personal injury.
Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses,
conductive contaminants, dust and direct sunlight. Leave adequate space at the front and rear of the enclosure for proper ventilation. Do
not block, cover or insert objects into the external ventilation openings of the enclosure.
The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unass isted. Use
a mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container. Inspect the shipping container and the
enclosure for shipping damage. Do not use the enclosure if it is damaged. Leave the enclosure in the shipping container until it has been
moved as close to the final installation location as possible.
Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty. Save all
packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage
that will void the warranty.
Install the enclosure in a structurally sound area capable of handling the load, or on a level floor that is able to bear the weight of the
enclosure, all equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.
For permanent wall mounting, be sure to securely fasten the enclosure to the building structure before operation. Do not place any object
on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.
Hardware List
M6 Screw (A)
M6 Cage Nut (B)
Professional Series
Models: 6U, 9U, 12U, 15U, 18U, 22U
Models: 6U, 9U, 12U, 15U, 18U, 22U
M5.5 Self-Tapping (C)
M5.5 Conical (D)
Wrench (E)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Professional Series and is the answer not in the manual?

Questions and answers

Related Manuals for AEONS Technologies Professional Series

Summary of Contents for AEONS Technologies Professional Series

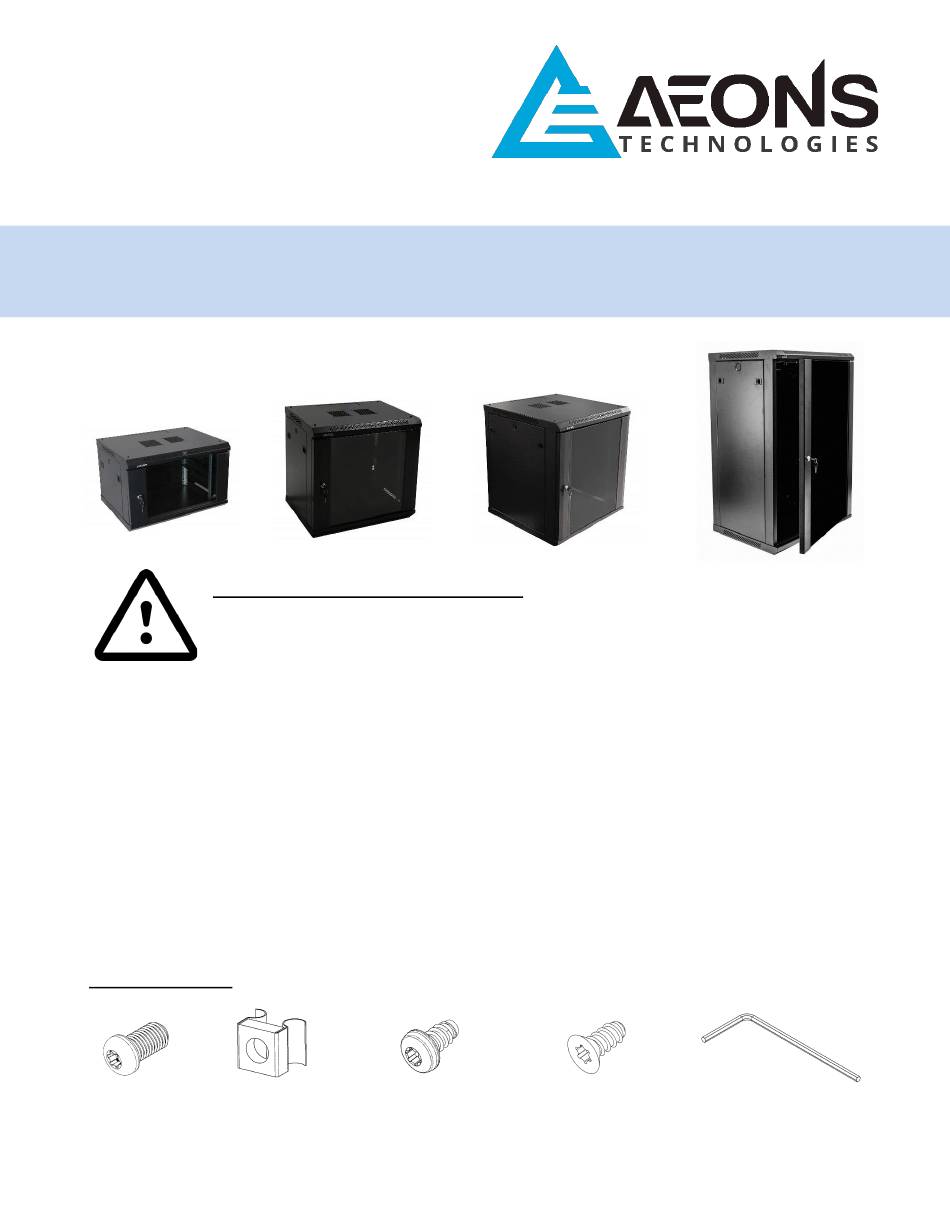

  • Page 1 Owner’s Manual Rev. 2.5 19” Wall Mounted Equipment Enclosure Professional Series Models: 6U, 9U, 12U, 15U, 18U, 22U Models: 6U, 9U, 12U, 15U, 18U, 22U Important Safety Instructions: This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual.

  • Page 2: Product Legend

    ○ ○ ○ Product Legend: ○ ○ F. Side Frame G. L Bracket ○ H. Mounting Rail ○ Top Cover Bottom ○ ○ K. Front Door L. Side Panel ○ M. Back Panel ○ N. Vents O. Cable Access Cover ○...
  • Page 3 Step 2: Install Bottom and Top Cover ○ ○ Lay Bottom Panel J on a flat surface. Insert Side ○ Frames F with large beam oriented to the front and ○ ○ secure with M5.5 self-tapping screws C and ○ Repeat step to secure Top Cover I to Side Frames.
  • Page 4 Step 4: Install Side Panel ○ Alight the pins at the bottom of Side Panel to the slots of cabinet frame. Click the Side ○ Panels L into cabinet frame using the plastic ○ latches on either side. ○ ○ Pins Spring Pin Step 5:...

  • Page 5: Wall Mounting The Enclosure

    Wall Mounting the Enclosure: Mount the Enclosure using keyhole cutouts on the frame of the enclosure. Note: Enclosure must be installed by a qualified technician. Before mounting, use a level and tape measure to position your mounting area precisely. Use appropriate fasteners (not included) to secure the enclosure to the wall.
  • Page 6 1644 N Maple St, Corona, CA 92880 www.aeonstech.com Technical Support Thank you for purchasing Aeons product. We intends this manual to guide you through a smooth installation. Aeons assumes that you are qualified in the servicing of IT equipment and trained in recognizing any hazards that may occur in the installation of this product. Our lifetime technical support is an integral part of our commitment to provide industry-leading solutions.
