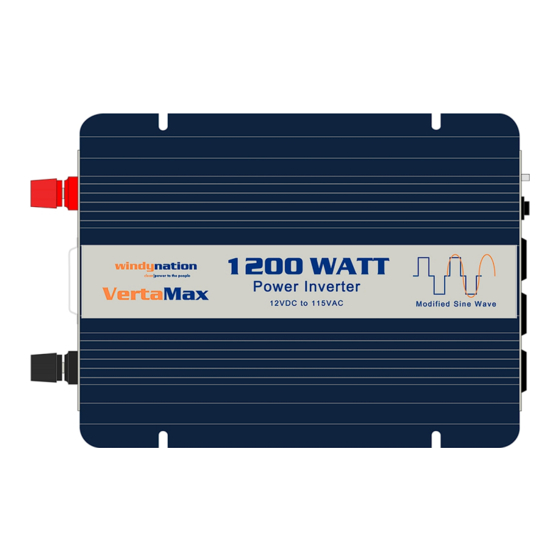

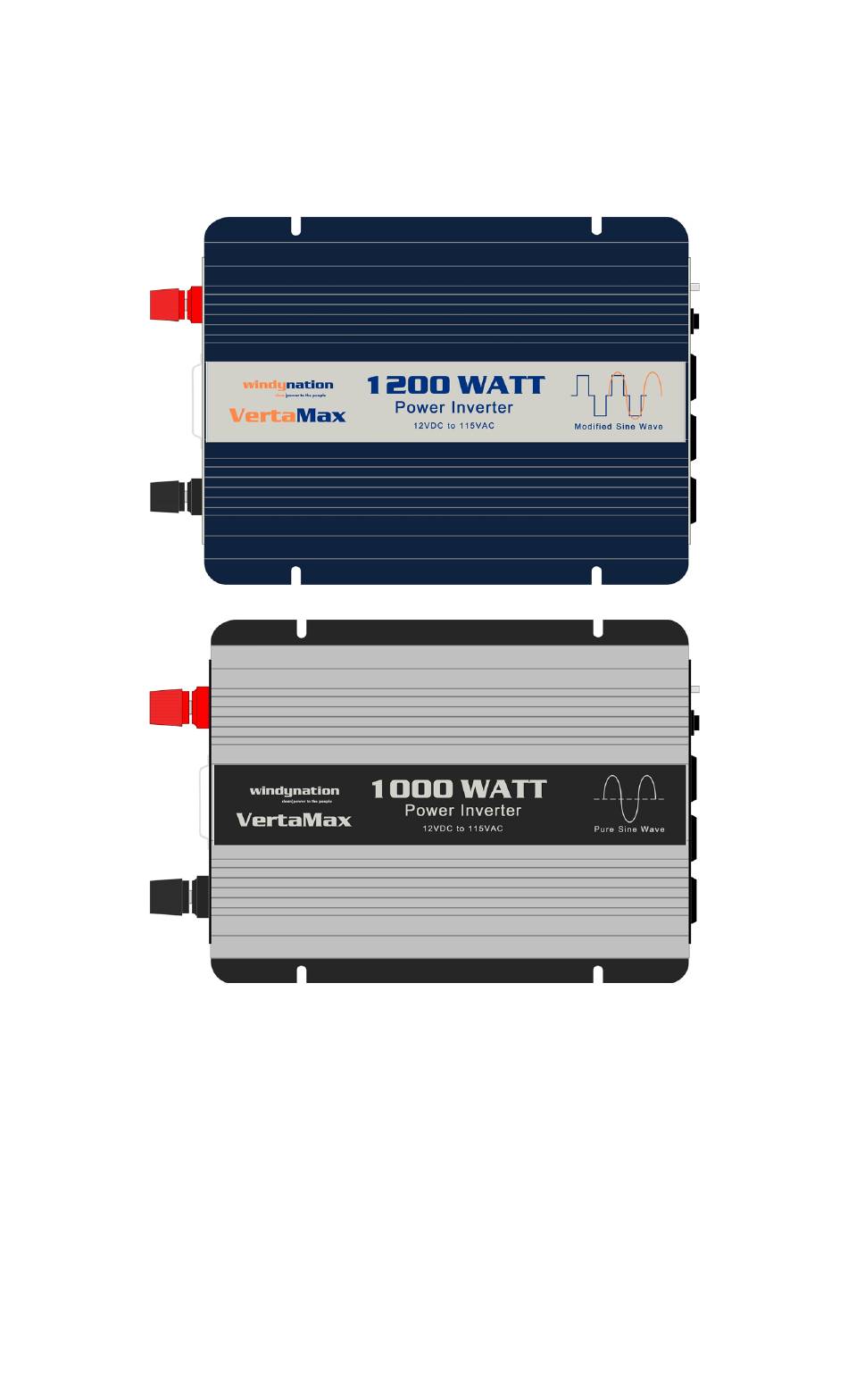

- Page 1 windynation VertaMax Power Inverter Series User’s Manual Modified Sine Wave Pure Sine Wave PIN-1200-12M PIN-1000-12P...
-
Page 2: Table Of Contents
windynation Table of Contents Introduction ......................... 3 Features ......................3 Safety Information ....................4 Specifications....................4 1.3.1 Electrical Specifications..................4 1.3.2 Physical Specifications ..................4 Installation ........................4 Electrostatic (ESD) Precautions ...............5 Mounting ......................5 Grounding ......................5 Connections .....................5 Operation ........................7 Power ......................7 3.1.1 Power ON ...................... -
Page 3: Introduction
windynation INTRODUCTION The VertaMax Power Inverter is a highly reliable product that uses advanced technologies for high performance and stability. The VertaMax efficiently converts DC power from your vehicle, boat, or directly from a dedicated 12V DC battery, into 115V AC power that is commonly used in a wide variety of household AC items, such as computers, mobile phone chargers, radio, TV etc. -
Page 4: Safety Information
windynation Optional Remote Cable required [PN: PIN-RMPS-01] 1.2 S AFETY NFORMATION Please read the installation and operating instructions carefully prior to use. Pay special attention IMPORTANT WARNING to the statements in the manual. WARNING: The VertaMax produces the same potentially lethal AC power as normal household outlets. It is suggested that you treat it with the same precautions as a normal 115 VAC outlet. -
Page 5: Electrostatic (Esd) Precautions
windynation Ventilated: Allow at least 6 in (150 mm) of clearance above and below and at least 1 in (25 mm) on each side for proper air flow. Safe: Do not operate in a shared compartment with batteries or any flammable substances, (e.g.: gasoline) IMPORTANT: To avoid fire, do not cover or obstruct ventilation openings. - Page 6 windynation The VertaMax has two DC terminals, one positive and one negative. Red is Positive [+] and black is Negative [-] and has the same polarity as the battery. When connected, positive must connect to positive (red to red), negative connect to negative (black to black). IMPORTANT: Use a minimum of 4 AWG wire with a wire length not to exceed 4 feet*.
-
Page 7: Operation
windynation IMPORTANT: When fully tightened, the Cable Lug should not be able to rotate around the Inverter connection post. Check and tighten the end caps periodically as they can become loose from vibrations or thermal cycling. Connect cables to the power source: Connect the cable from the Negative (Black) Terminal of inverter to the Negative Terminal of the power source;... -
Page 8: Power Off
Remote Power Switch: Part Number PIN-RMPS-01 (purchased separate) is a 5 meter corded remote control available from Windy Nation. To remotely control the power function of the inverter, switch the rocker power switch (on the inverter) down to the OFF position, essentially shutting down the Inverter. -
Page 9: Meter Readings
windynation 3.2 M ETER EADINGS The VertaMax is equipped with a digital meter on the AC Output End of the unit. The meter will provide one of the following measurements, depending on the switch selection: WATTS: AC output power; shown in Watts VOLTS: DC input voltage of the batteries;... -
Page 10: Short Circuit
windynation 3.3.5 Short Circuit This inverter is equipped with multiple internal fuses. When in a short circuit state, the alarm will beep and the FAULT LED will blink Red. The inverter will automatically shut down after three (3) seconds. 3.3.6 Functional Matrix Power Power... -
Page 11: Wire Gauge Reference
windynation 4.3 W AUGE EFERENCE 4.3.1 Ampacity Table Load Amperage – Power @ 12VDC 100A 120A 160A 200A 250A 120W 240W 360W 480W 600W 720W 840W 960W 1200W 1440W 1920W 2400W 3000W 16AWG 16AWG 14AWG 12AWG 10AWG 8AWG 8AWG 6AWG 4AWG 2AWG 2AWG 2/0AWG 3/0AWG... -
Page 12: Battery State Of Charge (Soc)
windynation used for more than a day. The following chart shows typical operation time for typical batteries for various loads. 50A/h Battery Operating 100A/h Battery Power Usage Current @ 12V Time Operating Time 100 watt 9 Amps 5.5 hours 11 hours 200 watt 19 Amps 2.6 hours... -
Page 13: Troubleshooting And Support
windynation Divide the total Wattage required (from step 1, above) by the battery voltage (12) to determine the DC amps required. STEP 3: Estimate Battery Amp-Hours Required Multiply the DC amps required (from step 2, above) by the number of hours you estimate you will operate your equipment exclusively from battery power before you have to recharge your batteries. -
Page 14: Support
5.4.1 Restrictions No warranty will apply if the Product (i) has been altered or modified except by Windy Nation; (ii) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Windy Nation; (iii) has been subjected to abnormal physical, thermal or electrical stress,... -
Page 15: Warranty Claims & Return Procedures
Customer. Within five (5) business days of the date of notification, Windy Nation will provide the Customer with an RMA number and the location to which the Customer must return the defective Product. Any Product returned for warranty service shall be shipped at the expense and risk of the Customer. -
Page 16: Limitation Of Liability
Some states do not allow the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. Neither Windy Nation nor its affiliates or suppliers will be held liable or responsible for any damage or loss to any items or products connected to, powered by or otherwise attached to the Product.
