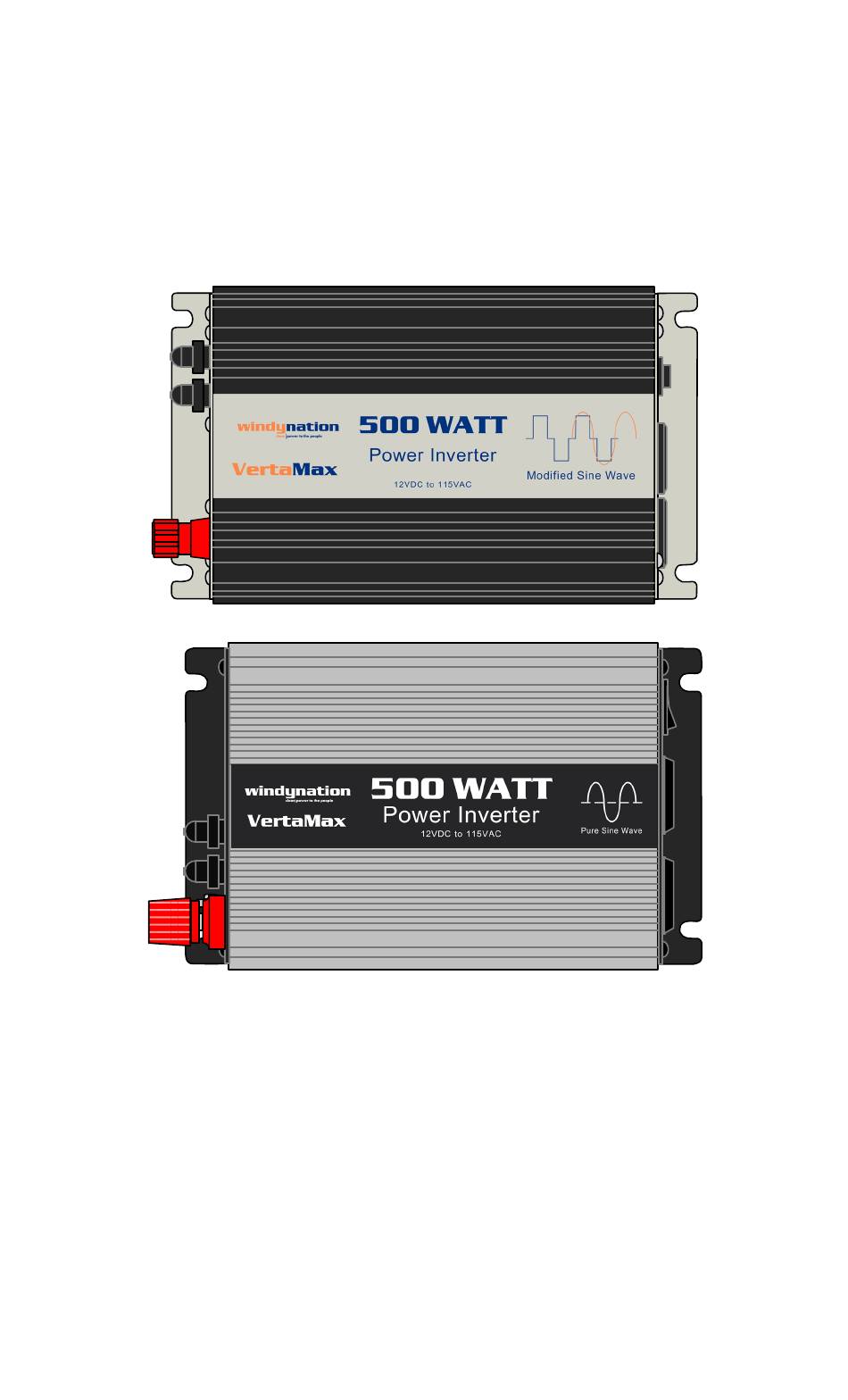

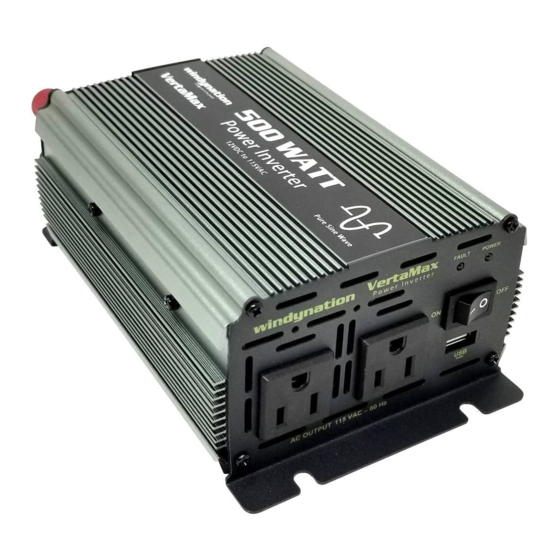

- Page 1 windynation VertaMax 500 Watt Power Inverter Series PIN-0500-12M – Modified Sine Wave PIN-0500-12P – Pure Sine Wave User’s Manual...
-
Page 2: Table Of Contents
windynation Table of Contents Introduction ......................... 3 Features ......................3 Safety Information ....................4 Specifications....................4 1.3.1 Electrical Specifications..................4 1.3.2 Physical Specifications ..................4 Installation ........................4 Electrostatic (ESD) Precautions ...............5 Mounting ......................5 Grounding ......................5 Connections .....................5 Operation ........................7 Power ......................7 3.1.1 Power ON ...................... -
Page 3: Introduction
windynation INTRODUCTION The VertaMax Power Inverter is a highly reliable product that uses advanced technologies for high performance and stability. The VertaMax efficiently converts DC power from your vehicle, boat, or directly from a dedicated 12V DC battery, into 115V AC power that is commonly used in a wide variety of household AC items, such as computers, mobile phone chargers, radio, TV etc. -
Page 4: Safety Information
windynation 1.2 S AFETY NFORMATION Please read the installation and operating instructions carefully prior to use. Pay special attention IMPORTANT WARNING to the statements in the manual. WARNING: The VertaMax produces the same potentially lethal AC power as normal household outlets. It is suggested that you treat it with the same precautions as a normal 115 VAC outlet. -
Page 5: Electrostatic (Esd) Precautions
windynation Cool: Ambient air temperature between 23°F and 104°F (-5°C and 40°C) Ventilated: Allow at least 6 in (150 mm) of clearance above and below and at least 1 in (25 mm) on each side for proper air flow. Safe: Do not operate in a shared compartment with batteries or any flammable substances, (e.g.: gasoline) IMPORTANT: To avoid fire, do not cover or obstruct ventilation openings. - Page 6 windynation The VertaMax has two DC terminals, one positive and one negative. Red is Positive [+] and black is Negative [-] and has the same polarity as the battery. When connected, positive must connect to positive (red to red), negative connect to negative (black to black). The inverter will ship with two alligator clamp style cables for temporary power connections.
-
Page 7: Operation
windynation IMPORTANT: When fully tightened, the Cable Lug should not be able to rotate around the Inverter connection post. Check and tighten the end caps periodically as they can become loose from vibrations or thermal cycling. Connect cables to the power source: Connect the cable from the Negative (Black) Terminal of inverter to the Negative Terminal of the power source;... -
Page 8: Power Off
windynation IMPORTANT: Do not turn on all AC products at the same time and be sure to turn on the largest power product first. IMPORTANT: In the ON position, even if no loads are connected, there is a low current draw (<0.8A). -
Page 9: Short Circuit
windynation When the temperature drops, the inverter will automatically return to normal operation. IMPORTANT: The cooling fan is designed to operate when the temperature increases but may not be adequate enough to prevent overheating. 3.2.5 Short Circuit This inverter is equipped with multiple internal fuses. When in a short circuit state, the alarm will beep and the FAULT LED will blink Red. -
Page 10: Typical Power Consumption
windynation Example – Ampere-hour capacity: a battery with an ampere-hour capacity of 100 ampere-hours can deliver 5 ampere for 20 hours before it is completely discharged. To determine the battery ampere-hour capacity: Determine how many watts each piece of AC equipment (TV, light bulbs, etc) consumes. -
Page 11: Wire Thickness
windynation 4.3.2 Wire Thickness Diameter Ohms per inches (mm) 1000ft Break Force Square mm2 0.051 (1.29) 4.016 75 lbs 1.30 0.064 (1.63) 2.525 119 lbs 2.08 0.081 (2.05) 1.588 197 lbs 3.30 0.102 (2.59) 0.999 314 lbs 5.26 0.129 (3.26) 0.628 480 lbs 8.30... -
Page 12: Battery Capacity
windynation deliver over a period of time, typically 20 hours. Therefore, a 100 amp-hour battery can deliver 5 amps for 20 hours (5 x 20 = 100). Actual operating time from a battery will depend upon the current draw from the battery. A battery will deliver less total power (energy) as you draw higher amps. -
Page 13: Troubleshooting
Keep battery cables as short as possible and twist them together (2-3x per foot). 5.3 S UPPORT If you are experiencing technical problems, and cannot find a solution in this manual, you can contact Windy Nation Inc. for further assistance. • Call: (805) 323-6445 • Email: support@windynation.com... -
Page 14: Warranty
5.4.1 Restrictions No warranty will apply if the Product (i) has been altered or modified except by Windy Nation; (ii) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Windy Nation; (iii) has been subjected to abnormal physical, thermal or electrical stress, misuse, negligence, or accident. -
Page 15: Limitation Of Liability
Some states do not allow the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. Neither Windy Nation nor its affiliates or suppliers will be held liable or responsible for any damage or loss to any items or products connected to, powered by or otherwise attached to the Product.
