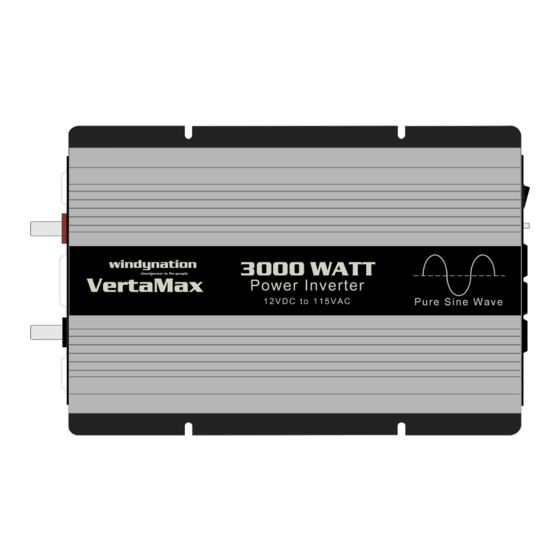

- Page 1 VertaMax Pure Sine Wave Power Inverter PIN-1500-12P PIN-3000-12P User’s Manual...
-
Page 2: Table Of Contents
windynation Table of Contents Introduction ......................... 3 Features ......................3 Safety Information ....................3 Specifications....................4 1.3.1 Electrical Specifications..................4 1.3.2 Physical Specifications ..................4 Installation ........................4 Electrostatic (ESD) Precautions ...............4 Mounting ......................5 Grounding ......................5 Connections .....................5 2.4.1 Permanent AC Connection* ................. 7 Operation ........................ -
Page 3: Introduction
windynation INTRODUCTION The VertaMax Power Inverter is a highly reliable product that uses advanced technologies for high performance and stability. The VertaMax efficiently converts DC power from your vehicle, boat, or directly from a dedicated 12V DC battery, into 115V AC power that is commonly used in a wide variety of household AC items, such as computers, mobile phone chargers, radio, TV etc. -
Page 4: Specifications
Do not connect or disconnect batteries while the Inverter is operating from the battery supply. Dangerous arcing may result. 1.3 S PECIFICATIONS 1.3.1 Electrical Specifications Parameter PIN-1500-12P PIN-3000-12P Continuous Rated Power 1500 Watts 3000 Watts Peak Surge Power 3000 Watts... -
Page 5: Mounting
windynation 2.2 M OUNTING Mounting is optional for the VertaMax; however, the environment must be dry and protected from water. The VertaMax can be mounted on a vertical or horizontal surface. If mounted vertically, the unit should be oriented such that neither end is at the top so foreign material cannot settle into the unit. - Page 6 windynation IMPORTANT: For 1500 Watt units, use a minimum of 4 AWG wire with a wire length not to exceed 4 feet*. IMPORTANT: For 3000 Watt units, use a minimum of 1/0 AWG wire with a wire length not to exceed 4 feet*.
-
Page 7: Permanent Ac Connection
windynation IMPORTANT: When fully tightened, the Cable Lug should not be able to rotate around the Inverter connection post. Check and tighten the end caps periodically as they can become loose from vibrations or thermal cycling. Connect cables to the power source: Connect the cable from the Negative (Black) Terminal of inverter to the Negative Terminal of the power source;... -
Page 8: Operation
windynation Line Black Tighten the terminal block screws to 1.6lbf-ft Secure strain relief clamp and check connections for correct polarity and no loose strands of wire Connect the outgoing AC wires to the AC load panel 3 OPERATION 3.1 P OWER The VertaMax features a Soft Start to handle the power surge that is created when some appliances are turned on. -
Page 9: Meter Readings
Remote Power Switch: Part Number PIN-RMPS-01 (purchased separate) is a 5 meter corded remote control available through Windy Nation. To remotely control the power function of the inverter, switch the rocker power switch (on the inverter) down to the OFF position, essentially shutting down the Inverter. From the Remote Control press the “ON”... -
Page 10: Over Heating
windynation 3.3.4 Over Heating When the inverter exceeds a safe operating temperature, due to insufficient ventilation or an increase in ambient temperature, the alarm will beep two (2x) times and the FAULT LED will blink Red. If the over-temperature condition persists, the inverter will automatically shut down. The inverter's cooling fan(s) are temperature controlled and only activate when the inverter is approaching an unsafe operating temperature When the temperature drops, the inverter will automatically return to normal operation. -
Page 11: Typical Power Consumption
windynation 4.2 T YPICAL OWER ONSUMPTION Appliance Watts Appliance Watts Stereo Microwave - 1000 W 1000 Table Fan AC (5,000 BTU) Computer Small Refrigerator Hair Dryer 1000 Hand Drill - 1/2" Coffee Maker 1200 Light Bulb - 100 W Blender 4.3 W AUGE EFERENCE... -
Page 12: Batteries
windynation 000 (3/0) 0.410 (10.4) 0.062 4860 lbs 85.01 0000 (4/0) 0.460 (11.68) 0.049 6120 lbs 107.22 4.4 B ATTERIES 4.4.1 Battery Life The VertaMax can draw lots of amps from your battery when operating. If you are using it for extended periods of time, you will want to recharge occasionally to maintain the charge in the battery. -
Page 13: Troubleshooting And Support
windynation Add the wattage ratings of all equipment you will connect to your Inverter. Wattage ratings are usually listed in equipment manuals or on nameplates. If your equipment is rated in amps, multiply that number times AC utility voltage to determine watts. (Example: a ¼ in. drill requires 2½... -
Page 14: Support
Nation not expressly set forth in this limited warranty. 5.4.1 Restrictions No warranty will apply if the Product (i) has been altered or modified except by Windy Nation; (ii) has not been installed, operated, repaired, or maintained in accordance with instructions supplied Page 14 of 16... -
Page 15: Warranty Claims & Return Procedures
Customer. Within five (5) business days of the date of notification, Windy Nation will provide the Customer with an RMA number and the location to which the Customer must return the defective Product. Any Product returned for warranty service shall be shipped at the expense and risk of the Customer. -
Page 16: Limitation Of Liability
Some states do not allow the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. Neither Windy Nation nor its affiliates or suppliers will be held liable or responsible for any damage or loss to any items or products connected to, powered by or otherwise attached to the Product.
