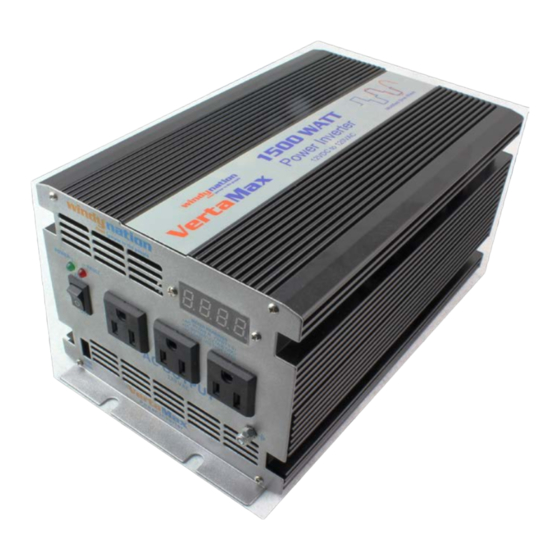

- Page 1 VertaMax Power Inverter PIN-1500-12 PIN-2500-12 User’s Manual...
-
Page 2: Table Of Contents
VertaMax User Manual Revision 1.1 Table of Contents Introduction ..............................3 Features .............................. 3 Safety Information ..........................4 Specifications ............................4 1.3.1 Electrical Specifications ........................4 1.3.2 Physical Specifications ........................4 ... -
Page 3: Introduction
VertaMax User Manual Revision 1.0 1 INTRODUCTION The VertaMax Power Inverter is a highly reliable product that uses advanced technologies for high performance and stability. The VertaMax efficiently converts DC power from your vehicle, boat, or directly from a dedicated 12V DC battery, into 120V AC power that is commonly used in a wide variety of household AC items, such as computers, mobile phone chargers, radio, TV etc. -
Page 4: Safety Information
Do not connect or disconnect batteries while the Inverter is operating from the battery supply. Dangerous arcing may result. 1.3 S PECIFICATIONS 1.3.1 Electrical Specifications Parameter PIN-1500-12 PIN-2500-12 Continuous Rated Power 1500 Watts 2500 Watts Peak Surge Power 3000 Watts... -
Page 5: Electrostatic (Esd) Precautions
VertaMax User Manual Revision 1.0 2.1 E (ESD) P LECTROSTATIC RECAUTIONS All electronic circuits may be damaged by static electricity. To minimize the likelihood of electrostatic damage, discharge yourself by touching an electrical ground (e.g.: copper pipe) prior to handling the unit and avoid touching components on the circuit boards. - Page 6 VertaMax User Manual Revision 1.1 IMPORTANT: For 1500 Watt units, use a minimum of 6 AWG wire with a wire length not to exceed 6 feet*; using all four battery posts on the inverter. IMPORTANT: For 2500 Watt units, use a minimum of 2 AWG wire with a wire length not to exceed 6 feet*; using all four battery posts on the inverter.
-
Page 7: Operation
VertaMax User Manual Revision 1.0 6) Connect cables to the power source: a) Connect the cable from the Negative (Black) Terminal(s) of inverter to the Negative Terminal of the power source; ensure a secure connection. b) Connect the cable from the Positive (Red) Terminal(s) of the inverter to the Positive Terminal of the power source (the battery’s main fuse or the battery selector switch, if you are using one) ;... -
Page 8: Power Off
VertaMax User Manual Revision 1.1 IMPORTANT: Do not turn on all AC products at the same time and turn on the larger power product first. IMPORTANT: In the ON position, even if no loads are connected, there is a low current draw (<600mA). 3.1.2 Power OFF From the AC Output end of the inverter, switch the rocker power switch down to the OFF position to shut... -
Page 9: Low Input Voltage
VertaMax User Manual Revision 1.0 3.4.2 Low Input Voltage As a battery is used, its voltage begins to decrease. When the inverter senses that the voltage at its DC input has dropped to 11V ± 0.3 DC, an audible alarm sounds and the red FAULT indicator will light. When this happens, it is important to remove or shut down computers or other sensitive devices that may be connected to the VertaMax and recharge the battery before its capacity drops too low. -
Page 10: Typical Power Consumption
VertaMax User Manual Revision 1.1 usually 25 ampere) or ampere-hour capacity (a measure of how many amperes a battery can deliver for a specified length of time). Example – Reserve capacity: a battery with a reserve capacity of 180 minutes can deliver 25 ampere for 180 minutes before it is completely discharged. -
Page 11: Wire Thickness
VertaMax User Manual Revision 1.0 8AWG 6AWG 6AWG 4AWG 4AWG 2AWG 2AWG 1AWG 1/0AWG 1/0AWG 3/0AWG NOTE: Applicable to conductors: Rated 0 Through 2000 Volts with an ambient Temperature of 30°C (86°F) IMPORTANT: The ampacity table is for a single cable. The VertaMax uses a dual cable connection so reference the wire thickness table to establish a single cable or a dual cable solution that will provide an equal conductor thickness. -
Page 12: Battery Capacity
VertaMax User Manual Revision 1.1 Actual operating time from a battery will depend upon the current draw from the battery. A battery will deliver less total power (energy) as you draw higher amps. A 100 amp-hour battery can deliver 5 amps for 20 hours (100 amp-hours) but it will only deliver 50 amps for 1 1/2 hours (50 x 1.5 = 75) or 75 amp-hours at the higher rate. -
Page 13: Troubleshooting
VertaMax User Manual Revision 1.0 1) Remove the four screws located on the DC INPUT end of the inverter as shown below. 2) Carefully Remove the end cover to expose the inside of the inverter 3) Locate the fuse sockets as shown below and remove each fuse by pulling it up and out from the socket. -
Page 14: Support
5.5.1 Restrictions No warranty will apply if the Product (i) has been altered or modified except by Windy Nation; (ii) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Windy Nation; (iii) has been subjected to abnormal physical, thermal or electrical stress, misuse, negligence, or accident. If Windy Nation determines that the problem with the Product is not due to a manufacturing defect in Windy Nation’s workmanship or materials, or otherwise does not qualify for warranty repair, then the Customer will... -
Page 15: Disclaimer
Product that does not have a valid RMA number. Customer’s failure to return the Product within fifteen (15) days of its receipt of an RMA number may result in cancellation of the RMA. All parts that Windy Nation replaces shall become Windy Nation’s property on the date Windy Nation ships the repaired Product or part back to the Customer. - Page 16 VertaMax User Manual Revision 1.1 to the Product. The total cumulative liability to Customer, from all causes of action and all theories of liability, will be limited to and will not exceed the purchase price of the Product paid by Customer. This warranty gives the Customer specific legal rights and the Customer may also have other legal rights that vary from state to state.
