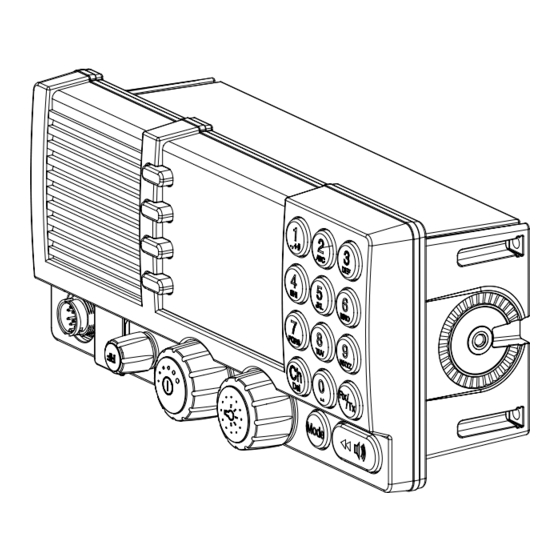

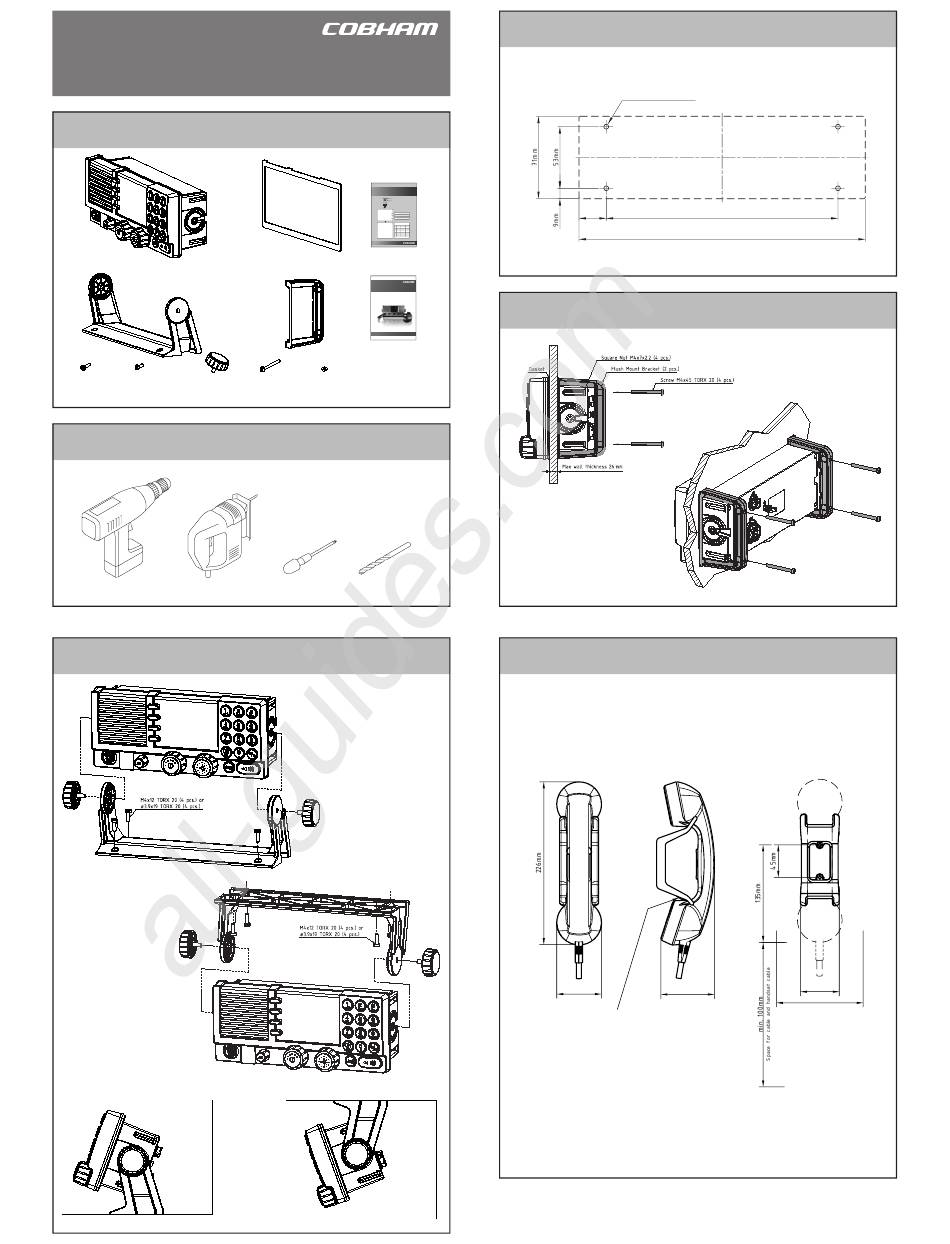

SAILOR 630x MF/HF Control Unit
Installation guide
What's in the box?
Transceiver
U-Mounting
Bracket
Screw M4x12
Screw ø3.9x19
Wheel Knob
TORX 20
TORX 20
(2 pcs.)
(5 pcs.)
(5 pcs.)
What do I need to fit it?
Power Drill
Jigsaw
How to install the VHF on desktop and overhead
Tilting ±20°
All manuals and user guides at all-guides.com
VHF and MF/HF
Emergency call
Lift Cover
Press RED Button
until beep sounds continuously
(more than 3 seconds)
Press
Use the HANDSET for voice calling
MAYDAY-MAYDAY-MAYDAY
OWN ID
This is
NAME-NAME-NAME
SHIP's NAME:
CALLSIGN
CALLSIGN:
or other IDENTIFICATION
MMSI
MMSI:
(If the initial alert is sent by DSC)
MAYDAY
DISTRESS and COMMUNICATION
FREQUENCIES
NAME of the VESSEL in distress
DSC
Radiotelephony
NBDP
CALLSIGN or other IDENTIFICATION
MMSI
(If the initial alert is sent by DSC)
VHF
Channel 70
Channel 16
-----
POSITION
MF
2187.5 kHz
2182.0 kHz
2174.5 kHz
HF4
4207.5 kHz
4125.0 kHz
4177.5 kHz
given as latitude and longitude
If latitude and longitude are not known
or
HF6
6312.0 kHz
6215.0 kHz
6268.0 kHz
or if time is insufficient,
HF8
8414.5 kHz
8291.0 kHz
8376.5 kHz
in relation to a known geographical location
HF12
12577.0 kHz
12290.0 kHz
12520.0 kHz
NATURE of distress
Kind of ASSISTANCE required
HF16
16804.5 kHz
16420.0 kHz
16695.0 kHz
Gasket
Any other useful INFORMATION
Remember to use the correct HF-procedures
Don't forget your EPIRB is the secondary means of alerting
98-132369-NEU-B
Emergency Call
SAILOR 6300 MF/HF DSC
150W/250W/500W
User manual
Flush Mount
Bracket (2 pcs.)
User Manual
Screw M4x45
Square Nut
TORX 20
M4x7x2.2
(5 pcs.)
(5 pcs.)
Screwdriver
Drill for M4 or
TORX 20
Ø3.9 self-tapping
Drilling plan on desktop and overhead
4 x M4 or hole for
self-tapping ø3.9
23.5mm
99-131985
How to install the VHF flush mount
How to install the handset
Handset for transceiver
62mm
This Handset has a hook-on/off function,
which is activated by a small magnet embedded
in the cradle.
The cradle must be installed as illustrated in
order to ensure the hook-on/off functionality
of the Handset.
39655C
Weight
Handset for transceiver 0.4 kg
Disclaimer: Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed
by Thrane & Thrane. The information in this manual is provided for information purposes only, is subject to change without notice and may contain errors or
inaccuracies. Manuals issued by Thrane & Thrane are periodically revised and updated. Anyone relying on this information should acquire the most current
version e.g. from cobham.com/satcom or from the distributor. Thrane & Thrane is not responsible for the content or accuracy of any translations or reprodu-
ctions, in whole or in part, of this manual from any other source. Thrane & Thrane A/S trading as Cobham SATCOM
Copyright © 2013 Thrane & Thrane A/S. All rights reserved.
200mm
247mm
54mm
75mm
* 120mm
Space for handset access
TT99-129987-A
