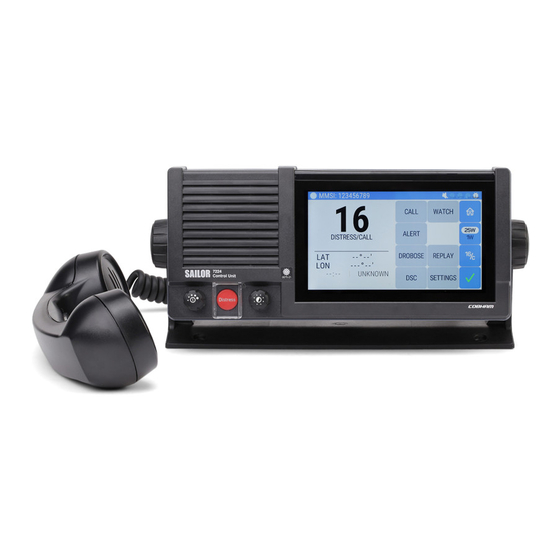

SAILOR 7224 Control Unit VHF DSC
Installation guide
Dimensions
Dimensions - Incl. U-mount bracket and cable relief
Installing with U-mount bracket kit
4 pcs. M4x12 Torx 20 or
ø3.9x19 Torx 20
Tilting ±20°
Accessories: U-mount bracket kit, part no. 407224A-930
241 mm
241 mm
273 mm
4 pcs. M4x12 Torx 20 or
ø3.9x19 Torx 20
104 mm
Space for cable entry
min.
120
mm
151 mm
Installing with Flush mount kit
Square Nut M4x7x22 (4 pcs,)
Gasket
Max. wall thickness
Accessories: Flush mount bracket kit, part no. 407224A-950
104 mm
Weight: 1 kg / 2.2 lbs
34 mm
104 mm
Flush Mount Bracket (2 pcs.)
Screw M4x45 TORX 20 (4 pcs.)
26
mm
- - �-
- - -�
Advertisement
Table of Contents
Related Manuals for COBHAM SAILOR 7224
Summary of Contents for COBHAM SAILOR 7224

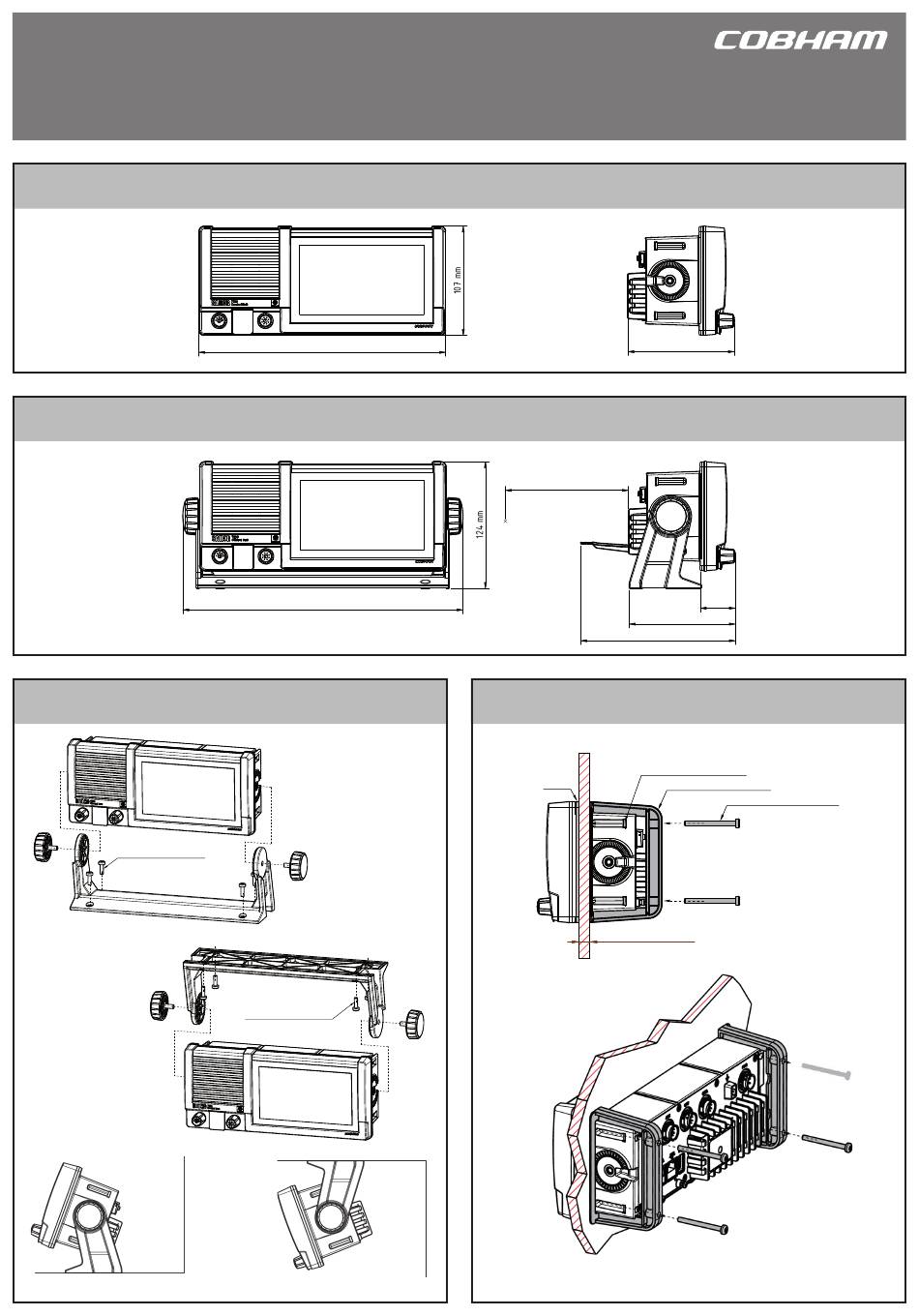

- Page 1 SAILOR 7224 Control Unit VHF DSC Installation guide Dimensions 104 mm 104 mm 241 mm 241 mm Weight: 1 kg / 2.2 lbs Dimensions - Incl. U-mount bracket and cable relief Space for cable entry min. 34 mm 273 mm...
