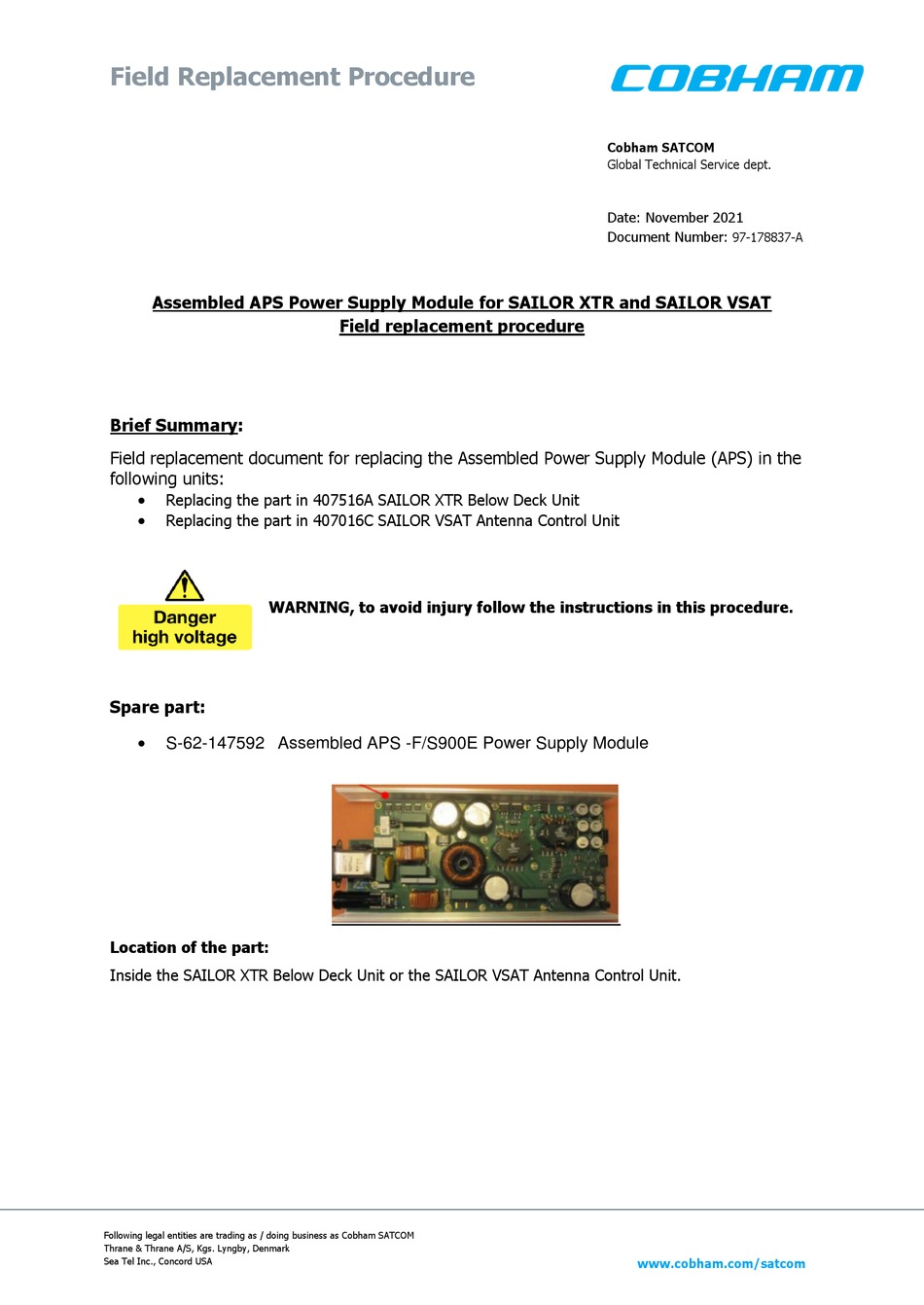

COBHAM SAILOR XTR Field Replacement Procedure

Assembled aps power supply module

Field Replacement Procedure

Assembled APS Power Supply Module for SAILOR XTR and SAILOR VSAT

Brief Summary:

Field replacement document for replacing the Assembled Power Supply Module (APS) in the

following units:





WARNING, to avoid injury follow the instructions in this procedure.

Spare part:



S-62-147592 Assembled APS -F/S900E Power Supply Module

Location of the part:

Inside the SAILOR XTR Below Deck Unit or the SAILOR VSAT Antenna Control Unit.

Following legal entities are trading as / doing business as Cobham SATCOM

Thrane & Thrane A/S, Kgs. Lyngby, Denmark

Sea Tel Inc., Concord USA

Field replacement procedure

Cobham SATCOM

Global Technical Service dept.

Date: November 2021

Document Number:

97-178837-A

www.cobham.com/satcom

Table of Contents

Need help?

Do you have a question about the SAILOR XTR and is the answer not in the manual?

Page 1 S-62-147592 Assembled APS -F/S900E Power Supply Module Location of the part: Inside the SAILOR XTR Below Deck Unit or the SAILOR VSAT Antenna Control Unit. Following legal entities are trading as / doing business as Cobham SATCOM Thrane & Thrane A/S, Kgs. Lyngby, Denmark Sea Tel Inc., Concord USA...
Page 2 Replacing the part in 407516A SAILOR XTR Below Deck Unit 1. Remove the power cable from the BDU. IMPORTANT: Do not start the disassembling before the power cable has been removed. Wait for approx. 10 seconds for the capacitors to discharge.
Page 3 7. Add the 2 screws on the back and 4 screws on the bottom to attach the APS module to the cabinet. 8. Add the 2 screws holding AC power inlet to the cabinet. 9. Connect the 3 cables connected to the APS module: ...
Page 4 Replacing the part in 407016C SAILOR VSAT Antenna Control Unit 1. Remove the power cable from the ACU. IMPORTANT: Do not start the disassembling before the power cable has been removed. Wait for approx. 10 seconds for the capacitors to discharge.
Page 5 ACU and fasten the top plate. Verify the initialization of the SAILOR XTR or VSAT system: After replacing the defective component re-initialize the pedestal and verify its operation. 1. Switch on the BDU or ACU.
